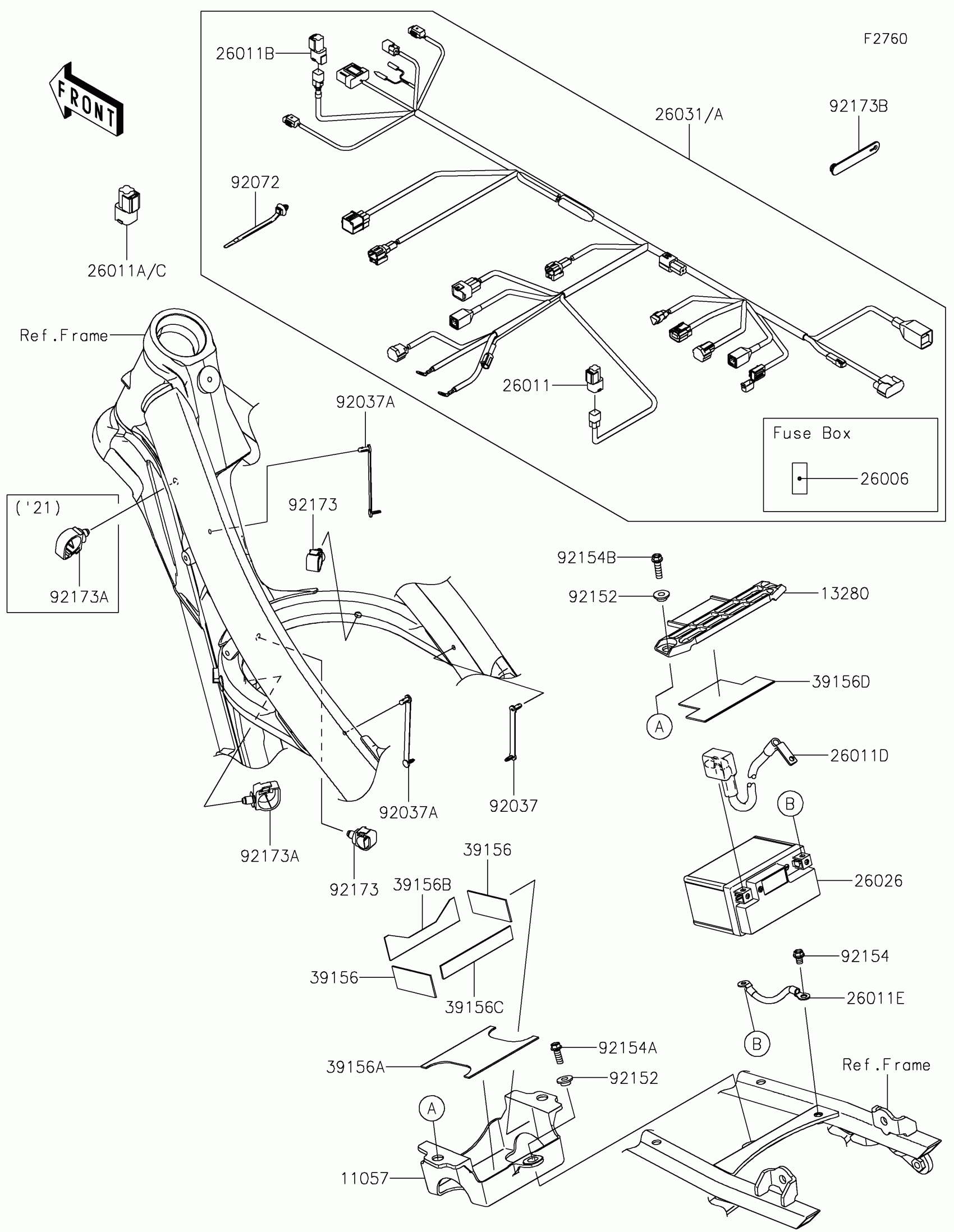

Kawasaki KX™450X Chassis Electrical Equipment Diagram
#
Description
Price
11057
BRACKET,BATTERY CASE
11057-1550
$12.32
13280
HOLDER,BATTERY COVER
13280-0912
$9.40
26006
FUSE,MINI BLADE,5A,TAN
26006-1077
$4.87
26011
WIRE-LEAD,NATURAL
26011-0273
$15.62
26011A
WIRE-LEAD,GREEN
26011-0727
$15.80
26011B
WIRE-LEAD,MODE SELECT,BLACK
26011-0728
$15.80
26011C
WIRE-LEAD,MODE SELECT,WHITE
26011-0748
$15.80
26011D
WIRE-LEAD,BATTERY(+)
26011-0996
$40.66
26011E
WIRE-LEAD,BATTERY(-)
26011-0997
$29.34
26026
BATTERY-LI-ION-STARTER,HJ01
26026-0003
Unavailable
26031A
HARNESS,MAIN
26031-3804
$385.08
39156
PAD,25X58X1.5
39156-2419
$1.27
39156A
PAD,100X72X1.5
39156-2420
$5.54
39156B
PAD,FR
39156-2640
$7.88
39156C
PAD,RR
39156-2641
$6.81
39156D
PAD,TOP
39156-2642
$5.25
92037
CLAMP,SPEED,L=58
92037-1163
$6.57
92037A
CLAMP,SPEED,L=80.5
92037-1903
$7.84
92072
BAND,OS170-FT7(BLACK)
92072-1414
Unavailable
92152
COLLAR,6.5X10X5.6
92152-0445
$4.92
92154
BOLT,FLANGED,6X8
92154-2962
$0.64
92154A
BOLT,FLANGED,6X16
92154-2965
$0.90
92154B
BOLT,FLANGED,6X20
92154-2966
$0.64
92173
CLAMP,12MM DIA.
92173-0736
$5.05
92173A
CLAMP
92173-0861
$3.02
92173B
CLAMP
92173-1526
$3.94
