Description

Price

13127

SHAFT-TRANSMISSION INPUT

13127-0703

$224.65

13128

SHAFT-TRANSMISSION OUTPUT

13128-0716

$174.08

13144

SPROCKET-OUTPUT,13T

13144-0063

$36.75

13262

GEAR,INPUT 2ND,17T

13262-1557

$68.40

13262A

GEAR,INPUT 3RD,16T

13262-1558

$145.49

13262B

GEAR,INPUT 4TH,19T

13262-1559

$132.82

13262C

GEAR,OUTPUT 2ND,24T

13262-1561

$155.45

13262D

GEAR,OUTPUT 3RD,19T

13262-1562

$132.82

13262E

GEAR,OUTPUT 4TH,19T

13262-1563

$132.82

13262F

GEAR,OUTPUT 5TH,21T

13262-1564

$132.82

13262G

GEAR,OUTPUT LOW,28T

13262-1572

$155.45

13262H

GEAR,INPUT 5TH,24T

13262-1675

$132.82

92015

NUT,20MM

92015-1963

$14.90

92028

BUSHING,INPUT TOP GEAR

92028-1857

$17.88

92033

RING-SNAP,25MM

92033-1172

$5.08

92055

RING-O,21.5X1.5

92055-1293

$5.00

92152

COLLAR,25X30X13.2

92152-0150

$25.83

92152A

COLLAR

92152-0540

$27.22

92200

WASHER

92200-0390

$7.37

92200A

WASHER

92200-1389

$2.34

92200B

WASHER,INPUT

92200-1524

$4.13

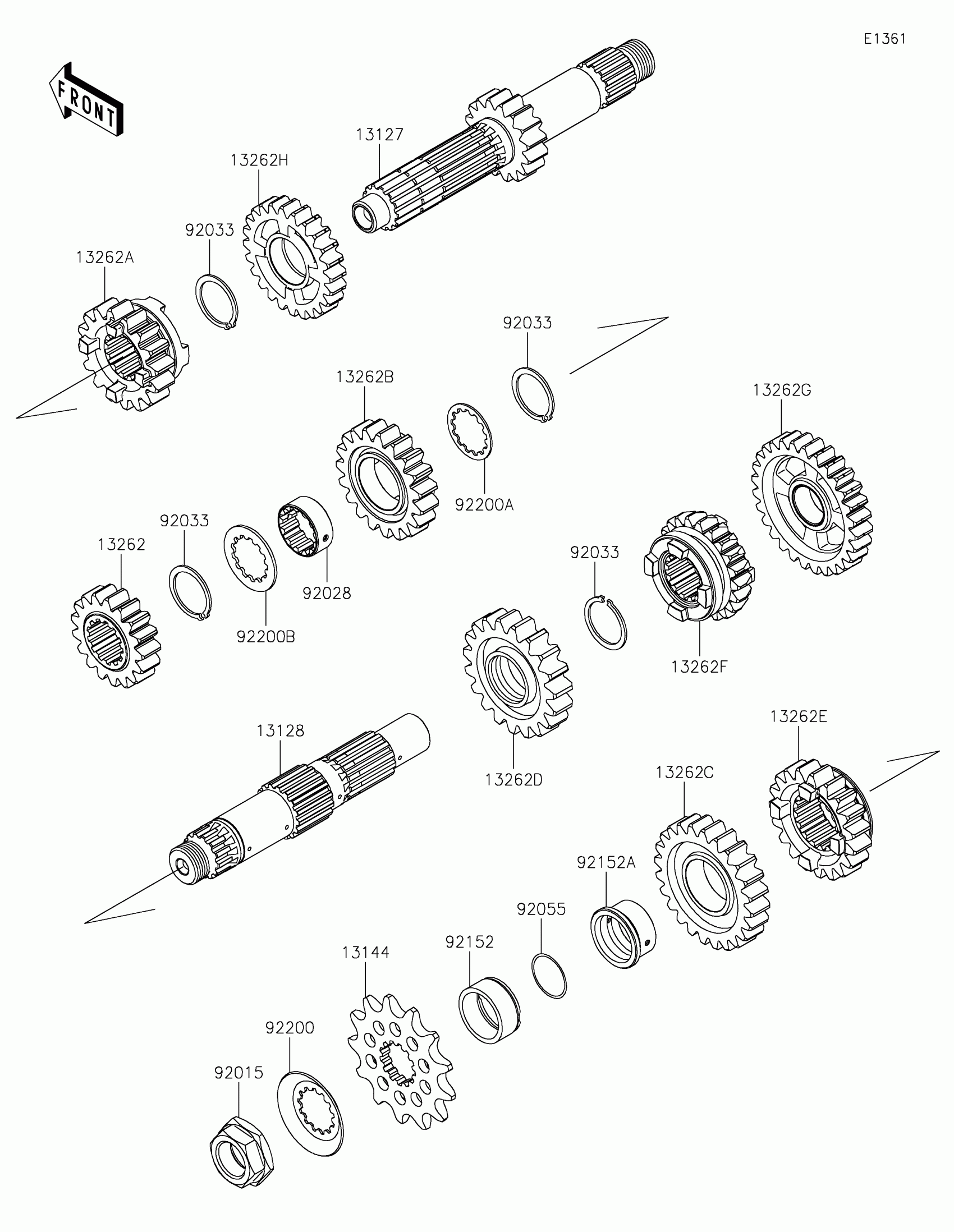

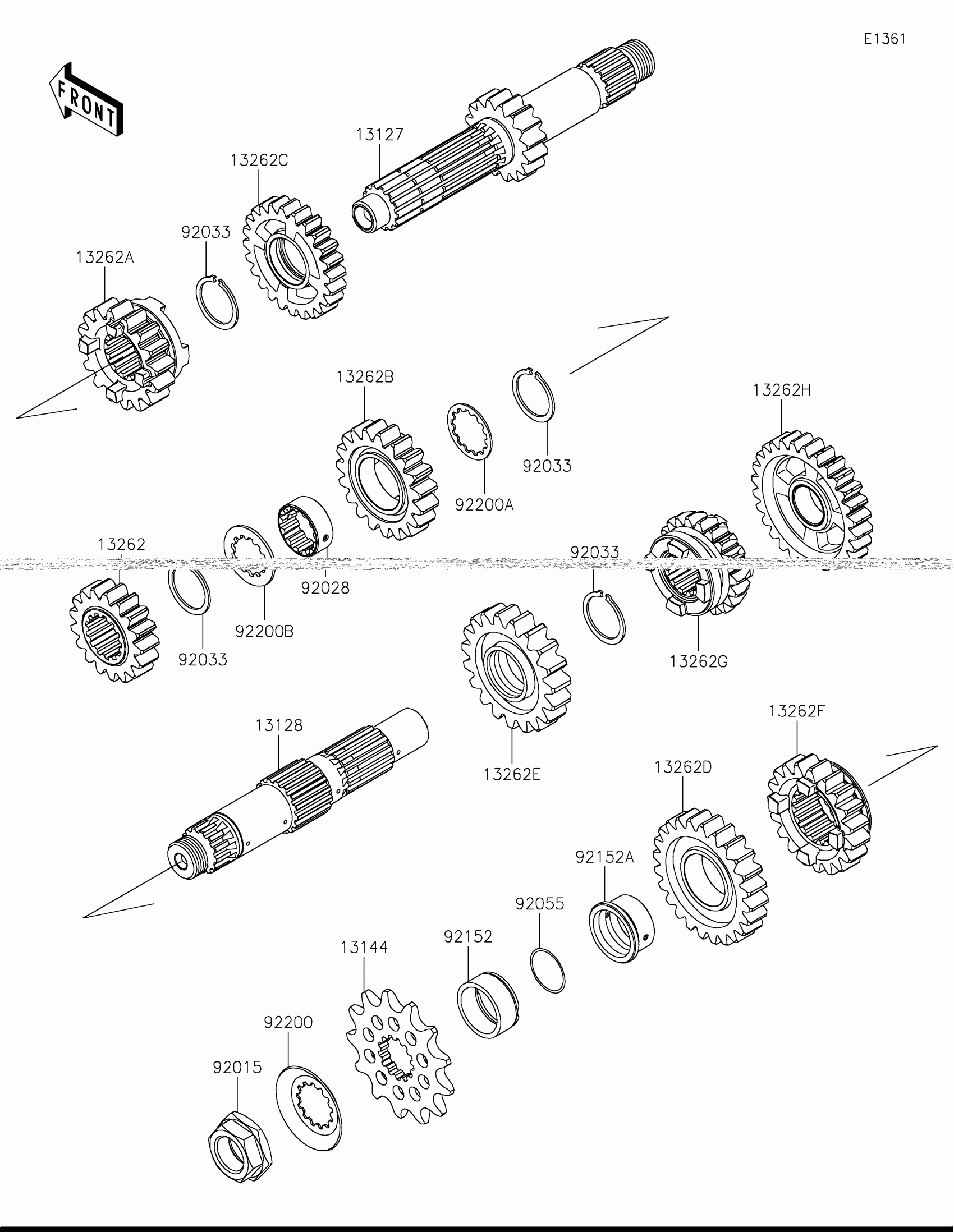

Kawasaki KX™450SR Transmission Diagram

SHAFT-TRANSMISSION INPUT

SHAFT-TRANSMISSION OUTPUT

SPROCKET-OUTPUT,13T

GEAR,INPUT 2ND,17T

GEAR,INPUT 3RD,16T

GEAR,INPUT 4TH,19T

GEAR,OUTPUT 2ND,24T

GEAR,OUTPUT 3RD,19T

GEAR,OUTPUT 4TH,19T

GEAR,OUTPUT 5TH,21T

GEAR,OUTPUT LOW,28T

GEAR,INPUT 5TH,24T

NUT,20MM

BUSHING,INPUT TOP GEAR

RING-SNAP,25MM

RING-O,21.5X1.5

COLLAR,25X30X13.2

COLLAR

WASHER

WASHER

WASHER,INPUT
