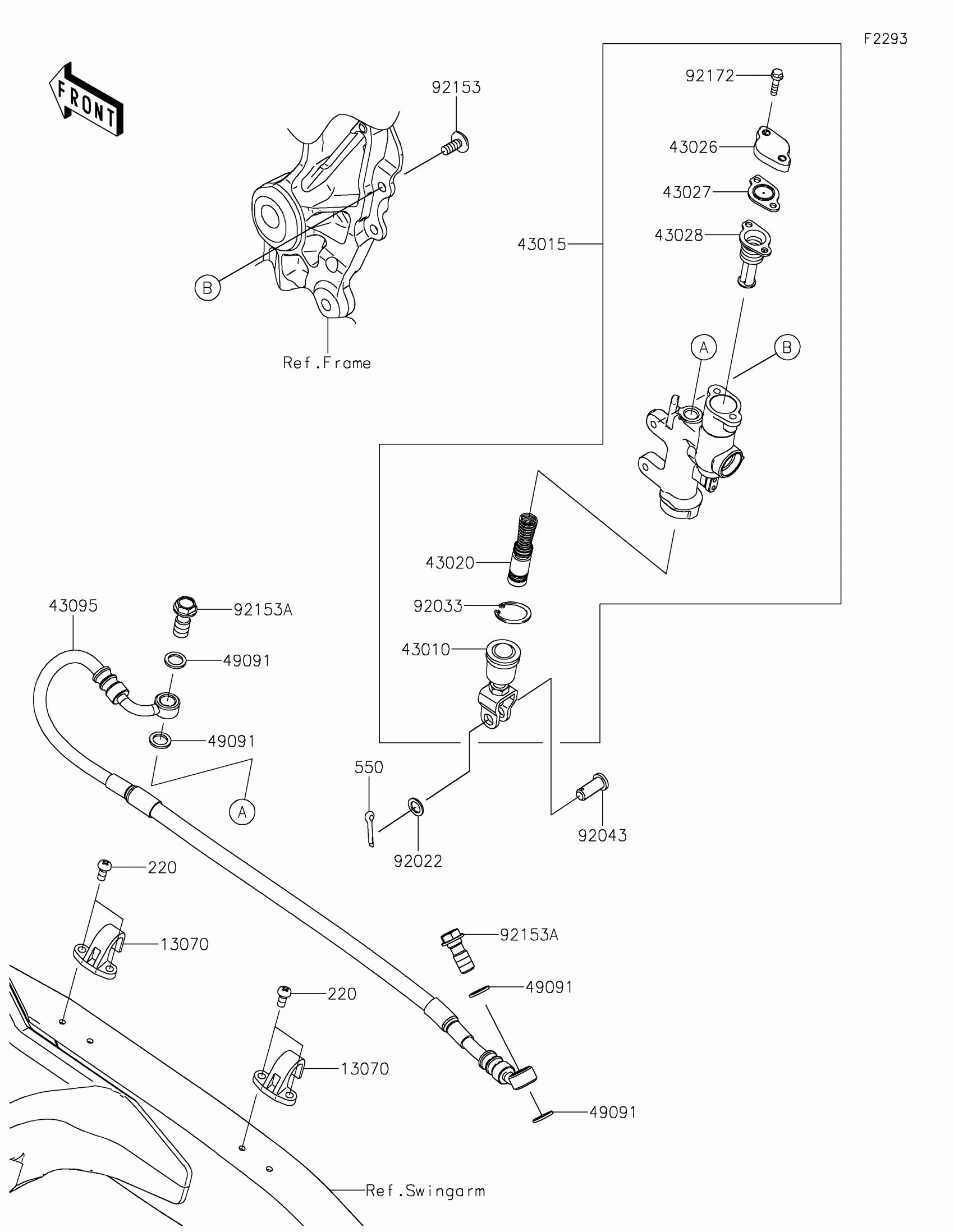

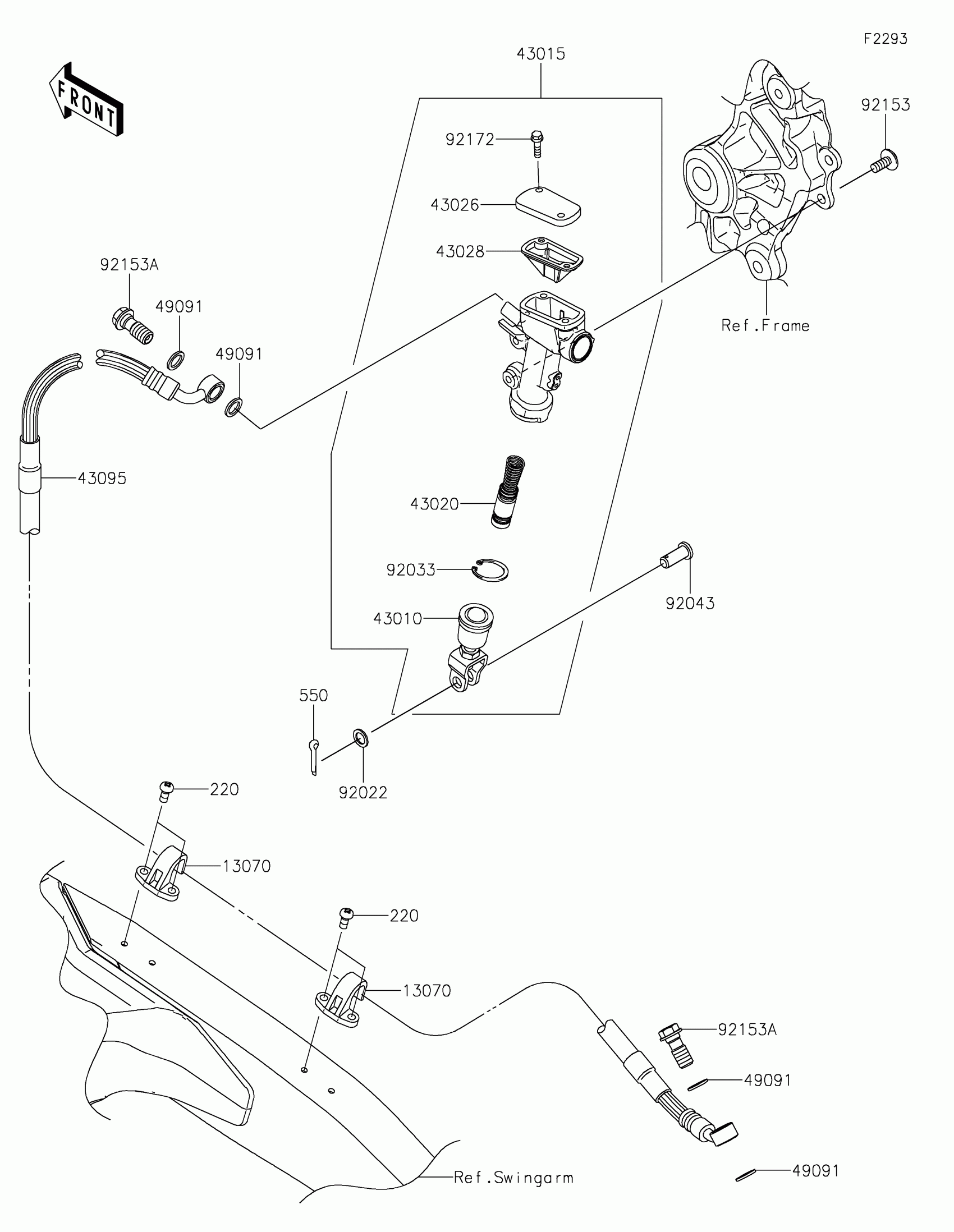

Kawasaki KX™450SR Rear Master Cylinder Diagram

Description

Price

13070

GUIDE,BRAKE HOSE

13070-0826

$2.73

43010

ROD-ASSY-BRAKE

43010-1087

$54.90

43015

CYLINDER-ASSY-MASTER,RR

43015-0823

$235.44

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-0035

$9.32

43027

PLATE-DIAPHRAGM

43027-0015

$5.12

43028

DIAPHRAGM

43028-0029

$13.91

43095

HOSE-BRAKE,RR CALIPER-RR M/C

43095-1957

$70.89

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92022

WASHER,8.5X13X1

92022-1028

$3.92

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92043

92043-0004

$11.16

92153

BOLT,SOCKET,6X14

92153-1021

$2.67

92153A

BOLT,OIL,L=23

92153-1419

$3.90

92172

SCREW

92172-1064

$2.41

220

SCREW-PAN-CROS,5X10

220AA0510

$0.71

550

PIN-COTTER,2.0X15

550AA2015

$1.12
