Description

Price

14079

HOLDER-ASSY,REAR CALIPER

14079-0619

$156.79

14091

COVER,REAR DISC,EBONY

14091-1523-6C

$32.16

32085

STOPPER,PAD

32085-1386

$8.86

41080

DISC,RR,240MM

41080-0772

$242.89

43048

PISTON-CALIPER

43048-1066

$73.05

43049

PACKING

43049-1063

$8.03

43049A

PACKING

43049-1064

$6.16

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,RR

43080-0230

$275.69

43082

PAD-ASSY-BRAKE

43082-0221

$46.28

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

55020

GUARD,REAR CALIPER,EBONY

55020-0458-6C

$29.88

92043

PIN,HANGER

92043-1507

$13.75

92043A

PIN

92043-1508

$13.75

92144

SPRING,PAD

92144-1819

$8.03

92150

BOLT,PLUG

92150-1692

$7.84

92150A

BOLT,DISC PLATE,8X15

92150-1811

$5.00

92154

BOLT,FLANGED,6X12

92154-2970

$0.90

92154A

BOLT,FLANGED,6X12

92154-2970

$0.90

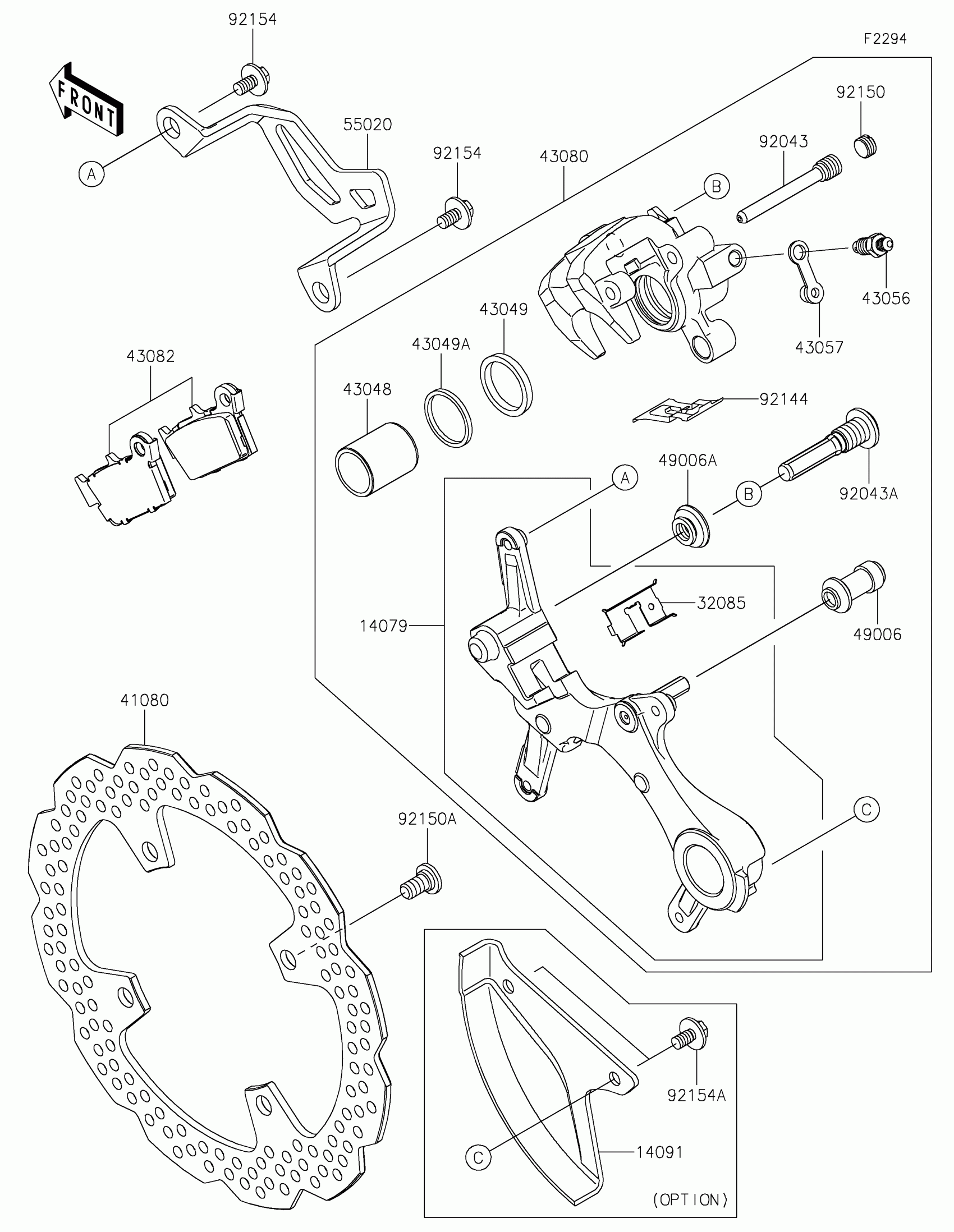

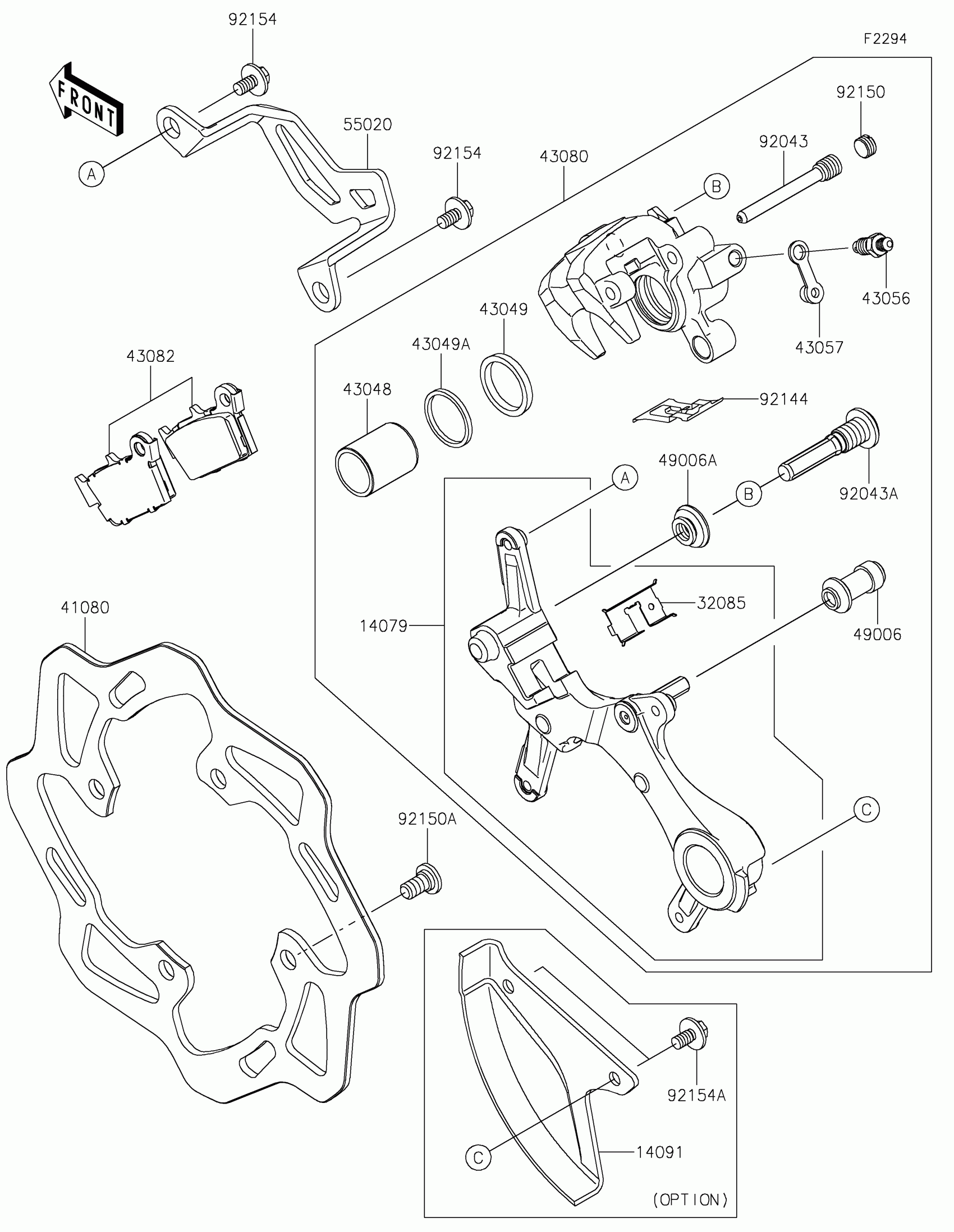

Kawasaki KX™450SR Rear Brake Diagram

HOLDER-ASSY,REAR CALIPER

COVER,REAR DISC,EBONY

STOPPER,PAD

DISC,RR,240MM

PISTON-CALIPER

PACKING

PACKING

BREATHER

CAP-BREATHER

CALIPER-SUB-ASSY,RR

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

GUARD,REAR CALIPER,EBONY

PIN,HANGER

PIN

SPRING,PAD

BOLT,PLUG

BOLT,DISC PLATE,8X15

BOLT,FLANGED,6X12

BOLT,FLANGED,6X12
