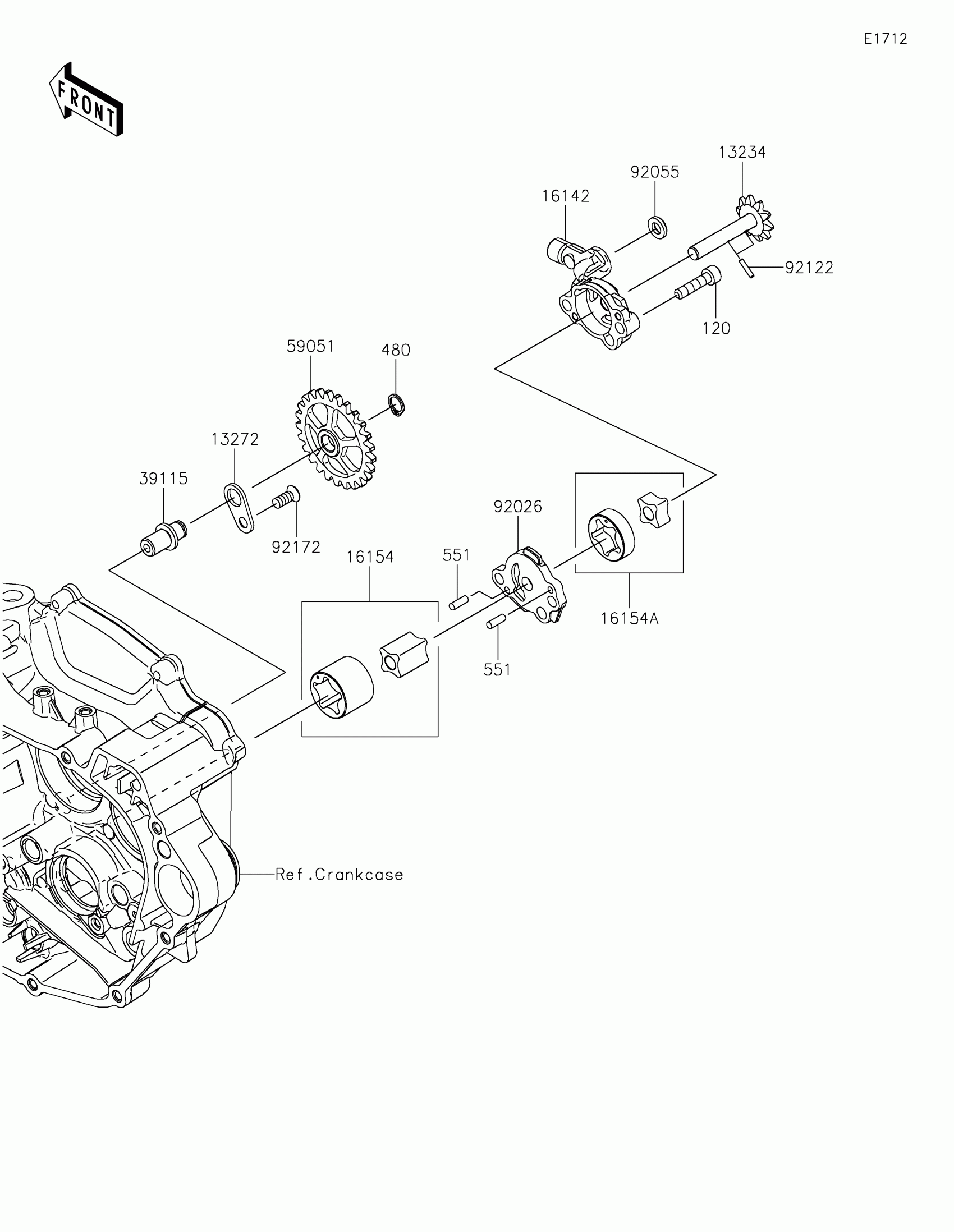

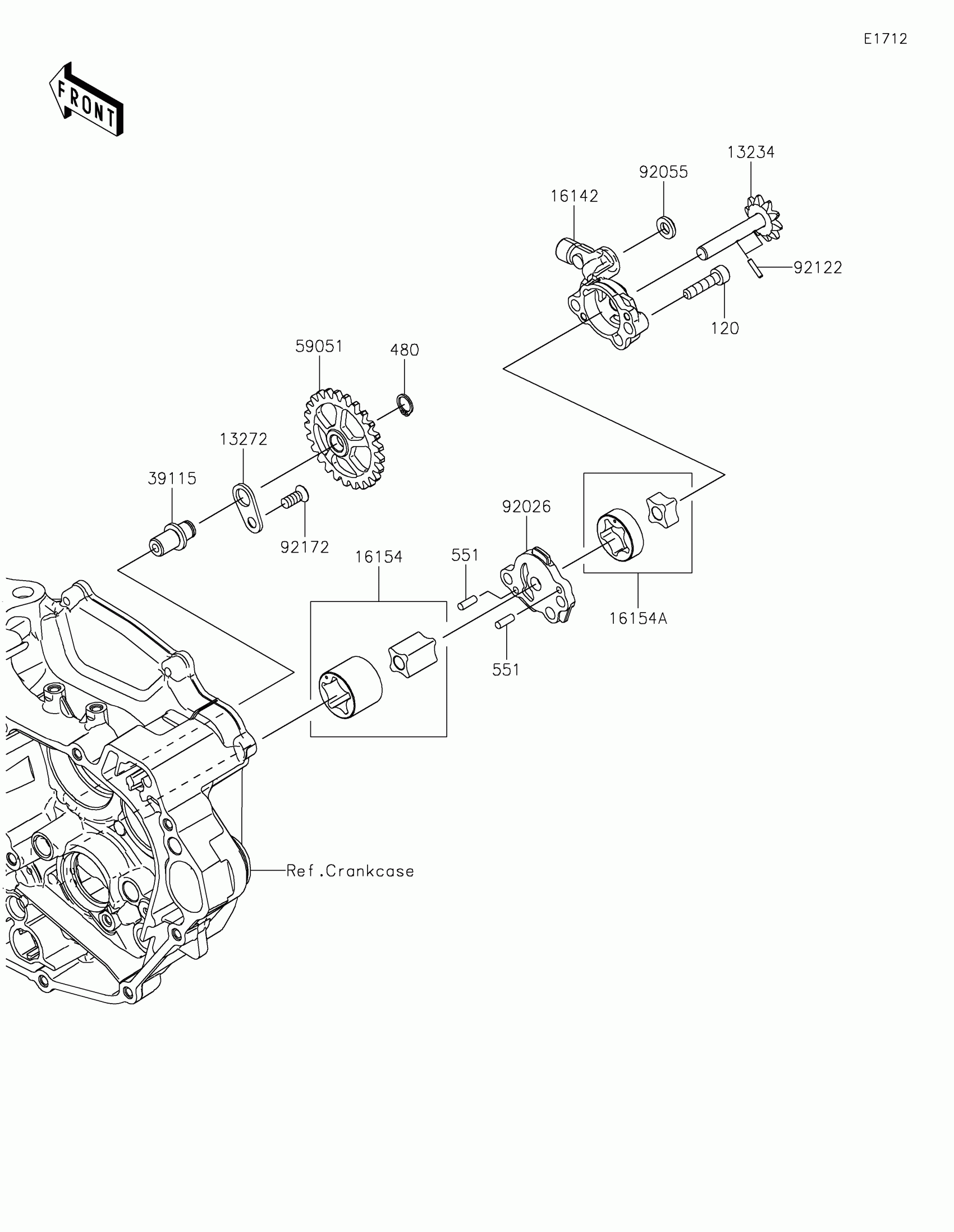

Kawasaki KX™450SR Oil Pump Diagram

Description

Price

13234

SHAFT-COMP,10T

13234-0604

$106.52

13272

PLATE

13272-1944

$5.69

16142

COVER-PUMP,OIL

16142-5003

$80.25

16154

ROTOR-PUMP,SCAVENGE

16154-0726

$39.84

16154A

ROTOR-PUMP,FEED

16154-0729

$39.84

39115

SHAFT-IDLER

39115-0024

$30.27

59051

GEAR-SPUR,OIL PUMP DRIVE,25T

59051-0770

$78.75

92026

SPACER

92026-0804

$52.47

92055

RING-O,OD=13

92055-074

$8.58

92122

ROLLER,2.5X11.8

92122-0021

$2.61

92172

SCREW,6X14

92172-0087

$2.41

120

BOLT-SOCKET,6X25

120CA0625

$2.06

480

CIRCLIP-TYPE-C,10MM

480J1000

$0.65

551

PIN-DOWEL

551A0412

$1.59
