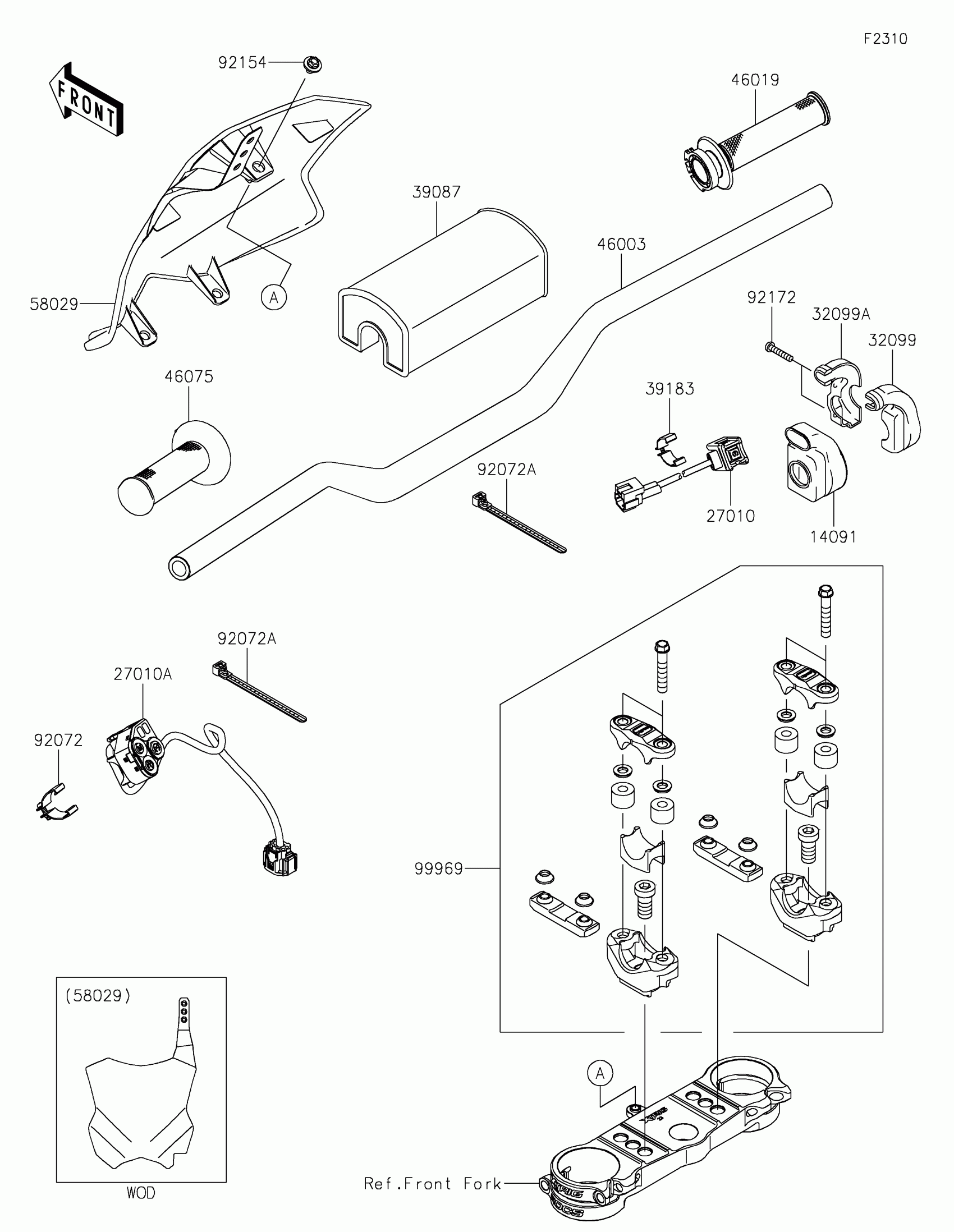

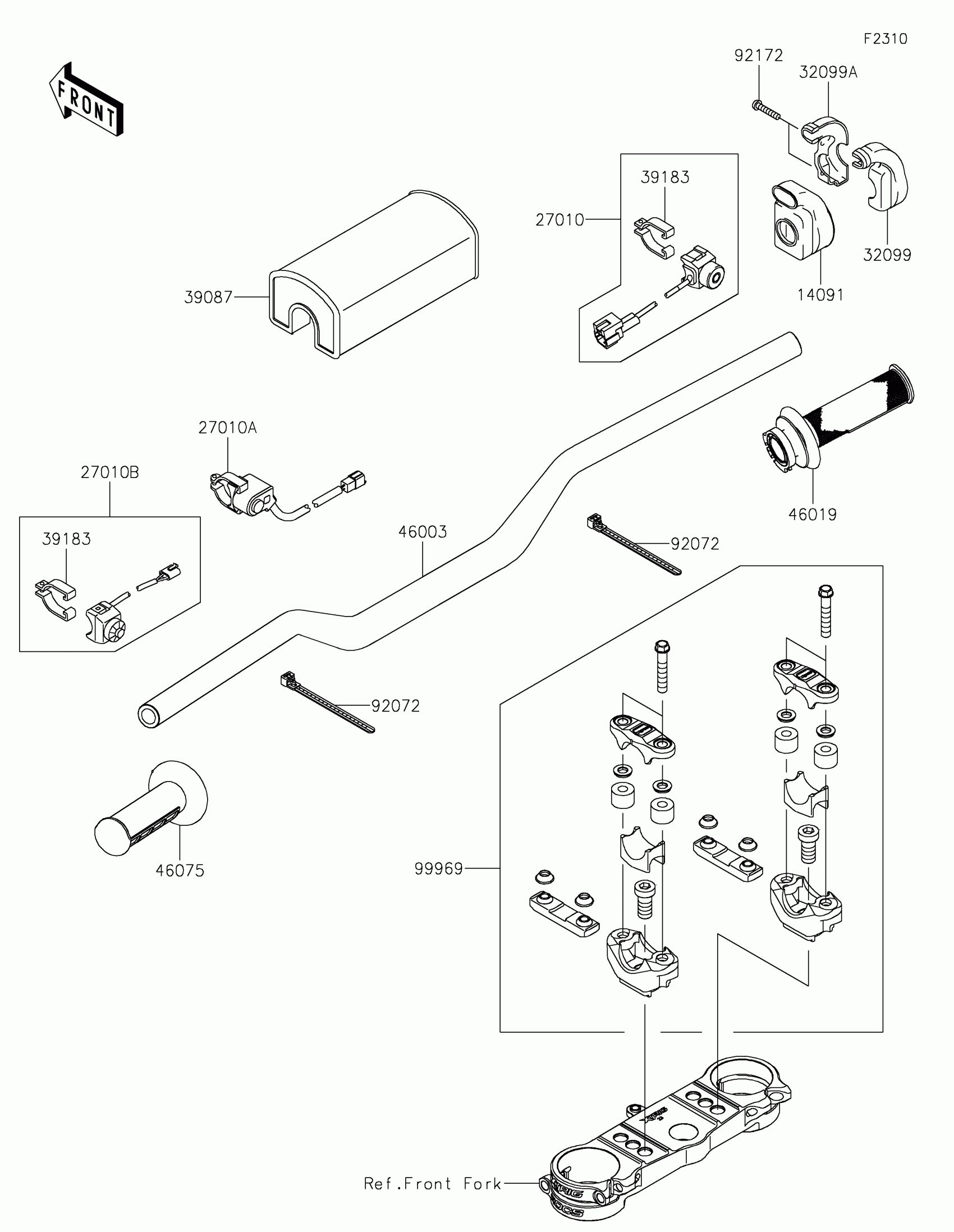

Kawasaki KX™450SR Handlebar Diagram

Description

Price

14091

COVER,THROTTLE CASE

14091-0182

$10.06

27010

SWITCH,STARTER

27010-0994

$39.69

27010A

SWITCH,COMBINATION

27010-0995

$130.51

32099

CASE,THROTTLE,RR

32099-0002

$30.31

32099A

CASE,THROTTLE,FR

32099-0003

$30.31

39087

PAD-HANDLE,RENTHAL,P330

39087-0017

$32.52

39183

BAND-ASSY,SWITCH

39183-1059

$13.02

46003

HANDLE,RENTHAL,FATBAR,839

46003-0829

$112.52

46019

GRIP-ASSY,THROTTLE

46019-0121

$29.91

46075

GRIP,LH

46075-0674

$22.12

58029

PLATE-NUMBER,L.GREEN

58029-0014-290

$53.57

92072

BAND

92072-0927

$28.40

92072A

BAND,L=140

92072-1293

$7.11

92154

BOLT,6X10

92154-2969

$1.17

92172

SCREW,5X20

92172-0069

$3.32

99969

HANDLE HOLDER,XTRIG

99969-3881

$200.36
