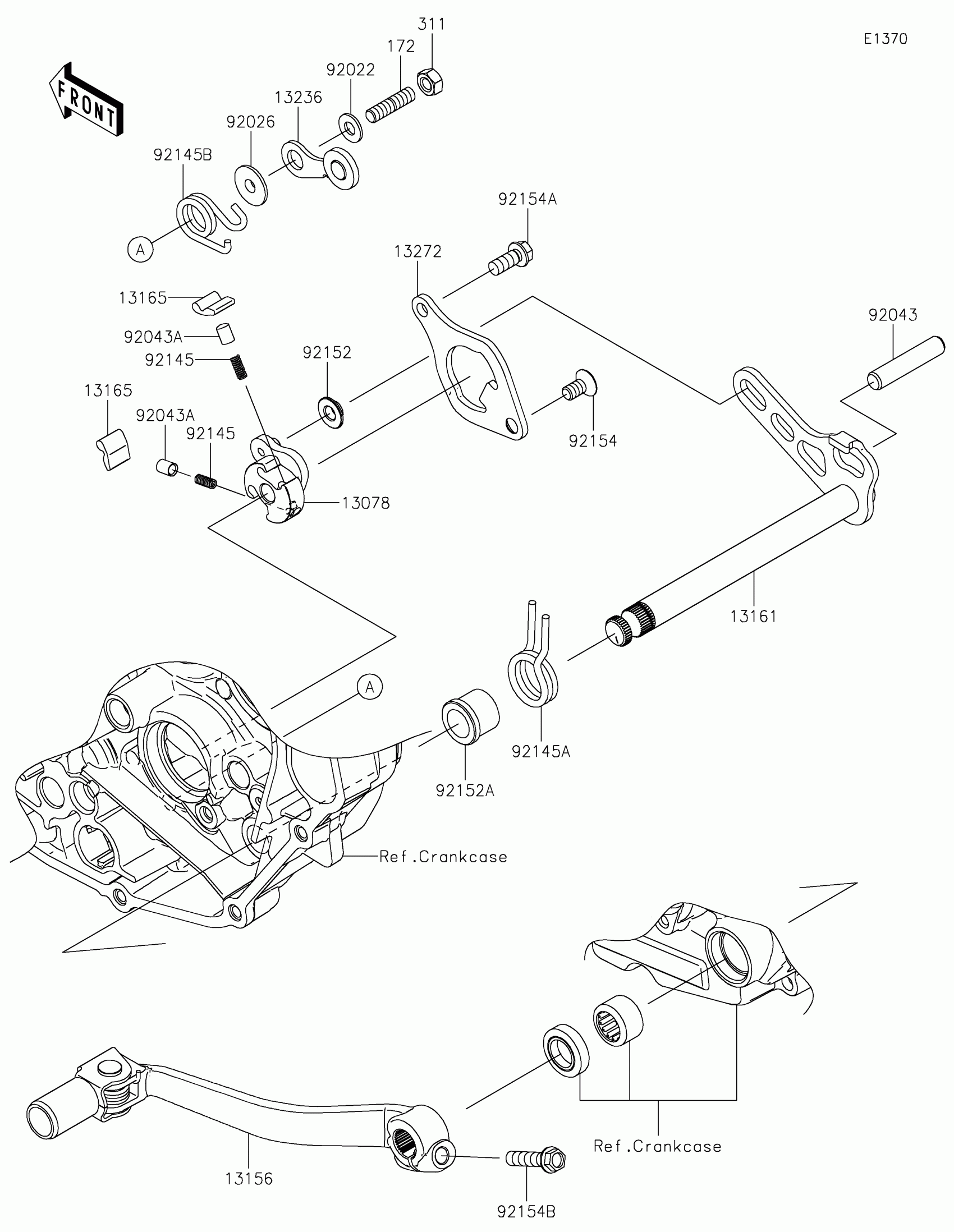

Kawasaki KX™450SR Gear Change Mechanism Diagram

Description

Price

13078

RATCHET

13078-0029

$71.76

13156

LEVER-CHANGE

13156-0614

$108.52

13161

LEVER-COMP-CHANGE SHAFT

13161-0583

$68.34

13165

PAWL

13165-0018

$19.48

13236

LEVER-COMP

13236-0764

$16.31

13272

PLATE,POLE GUIDE

13272-1940

$13.08

92022

WASHER,6X12.8X1.2

92022-1827

$4.69

92026

SPACER

92026-1217

$5.52

92043

PIN,8X39

92043-0017

$8.89

92043A

PIN,PLUNGER

92043-1676

$8.72

92145

SPRING

92145-0453

$3.87

92145A

SPRING,RETURN

92145-0496

$13.73

92145B

SPRING,POSITION LEVER RETURN

92145-1669

$6.20

92152

COLLAR

92152-1414

$7.63

92152A

COLLAR

92152-2120

$6.24

92154

BOLT,TORX

92154-1621

$3.90

92154A

BOLT,FLANGED,6X14

92154-2964

$0.64

92154B

BOLT,FLANGED,6X25

92154-2967

$0.90

172

BOLT-STUD,6X12

172BA0612

$0.87

311

NUT-HEX,6MM

311BA0600

$2.23
