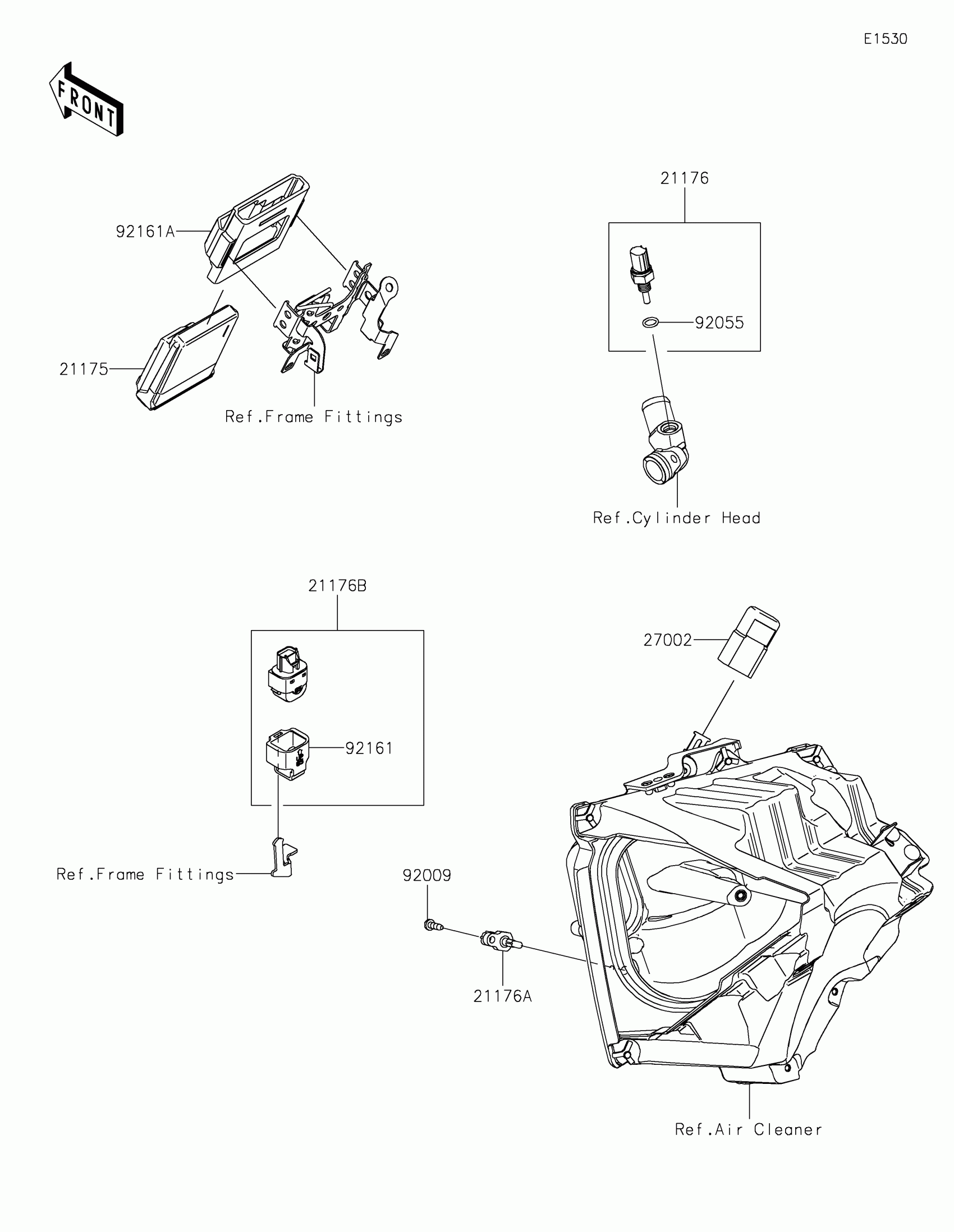

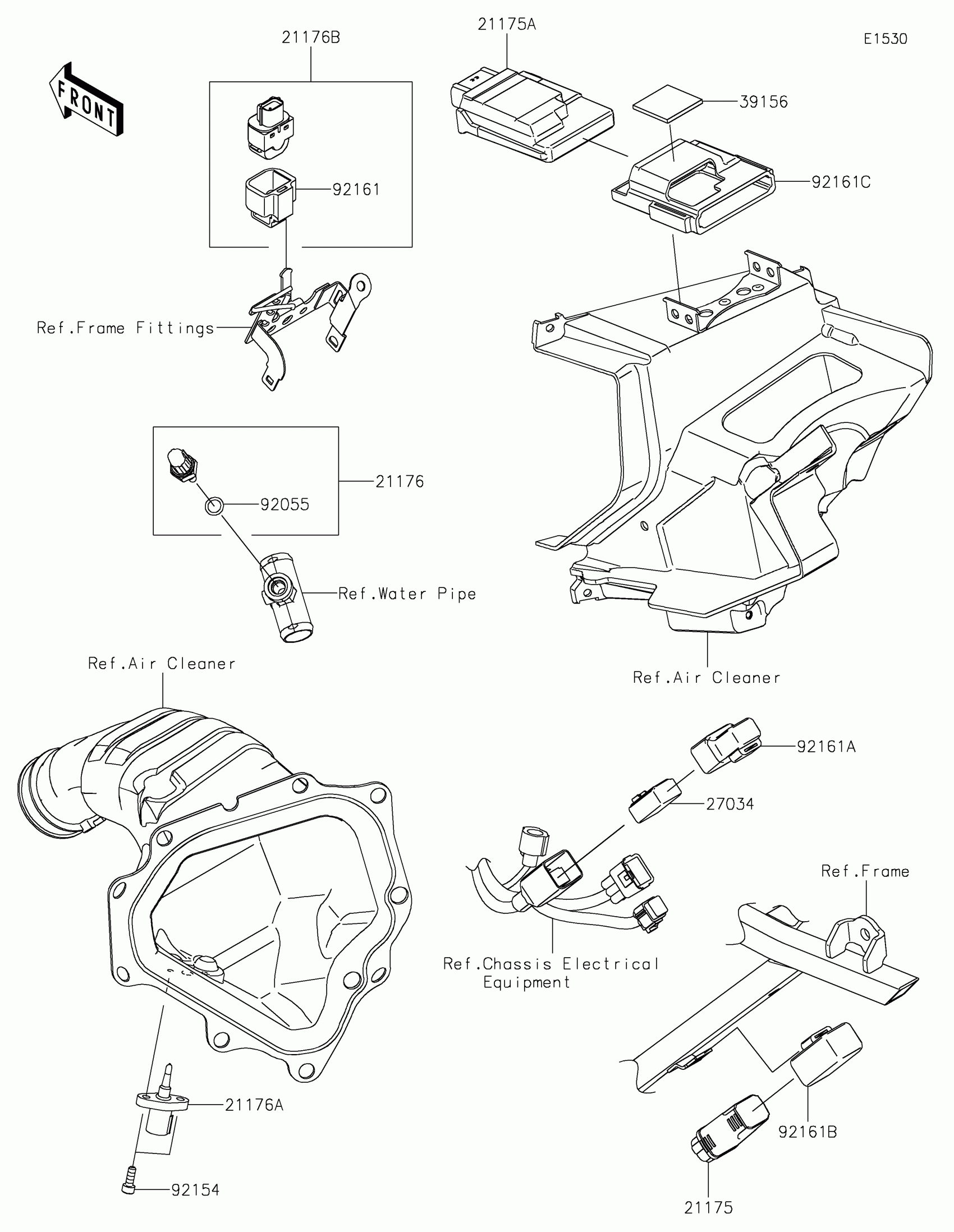

Kawasaki KX™450SR Fuel Injection Diagram

Description

Price

21175

CONTROL UNIT-ELECTRONIC,B/T

21175-1933

$735.49

21175A

CONTROL UNIT-ELECTRONIC,FI

21175-2196

$710.65

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,AIR TEMP

21176-0121

$55.09

21176B

SENSOR,VEHICLE-DOWN

21176-0704

$90.72

27034

RELAY

27034-0012

$36.91

39156

PAD

39156-2920

$4.11

92055

RING-O,9.5X1.9

92055-0016

$8.89

92154

BOLT,SOCKET,5X14

92154-0491

$1.63

92161

DAMPER

92161-0951

$14.90

92161A

DAMPER

92161-2290

$6.03

92161B

DAMPER,B/T UNIT

92161-2513

$12.07

92161C

DAMPER,ECU

92161-2518

$19.77
