Description

Price

11004

GASKET-HEAD

11004-0813

$49.04

11008

HEAD-COMP-CYLINDER

11008-1574

$741.60

16066

HOLDER-THROTTLE BODY

16066-0029

$16.19

49002

GUIDE-VALVE

49002-0020

$36.47

49002A

GUIDE-VALVE

49002-0042

$36.47

92004

STUD,8X22

92004-0025

$3.87

92005

FITTING

92005-1458

$71.50

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,10.1X12X14

92043-4009

$6.22

92055

RING-O,23.5X2.0

92055-0046

$2.15

92055A

RING-O,22.1X2.4

92055-1081

$4.69

92055B

RING-O,47X1.9

92055-1600

$9.19

92066

PLUG,18X10

92066-0832

$12.90

92066A

PLUG

92066-0931

$9.31

92153

BOLT,TORX,6X14

92153-0406

$2.80

92154

BOLT,FLANGED,6X16

92154-2965

$0.90

92154A

BOLT,FLANGED,6X42

92154-2979

$1.17

92154B

BOLT,FLANGED,6X35

92154-2983

$1.17

92154C

BOLT-SOCKET,6X25

92154-3960

$1.17

92154D

BOLT-SOCKET,6X75

92154-7120

$3.65

92154E

BOLT,FLANGED,10X132

92154-7293

$24.56

92154F

BOLT,FLANGED,10X153

92154-7294

$27.35

92170

CLAMP

92170-1514

$4.31

92171

CLAMP

92171-1552

$16.41

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92200

WASHER,12.5X18X1.6

92200-0087

$2.12

92200A

WASHER,10.5X19X2.3

92200-0363

$3.90

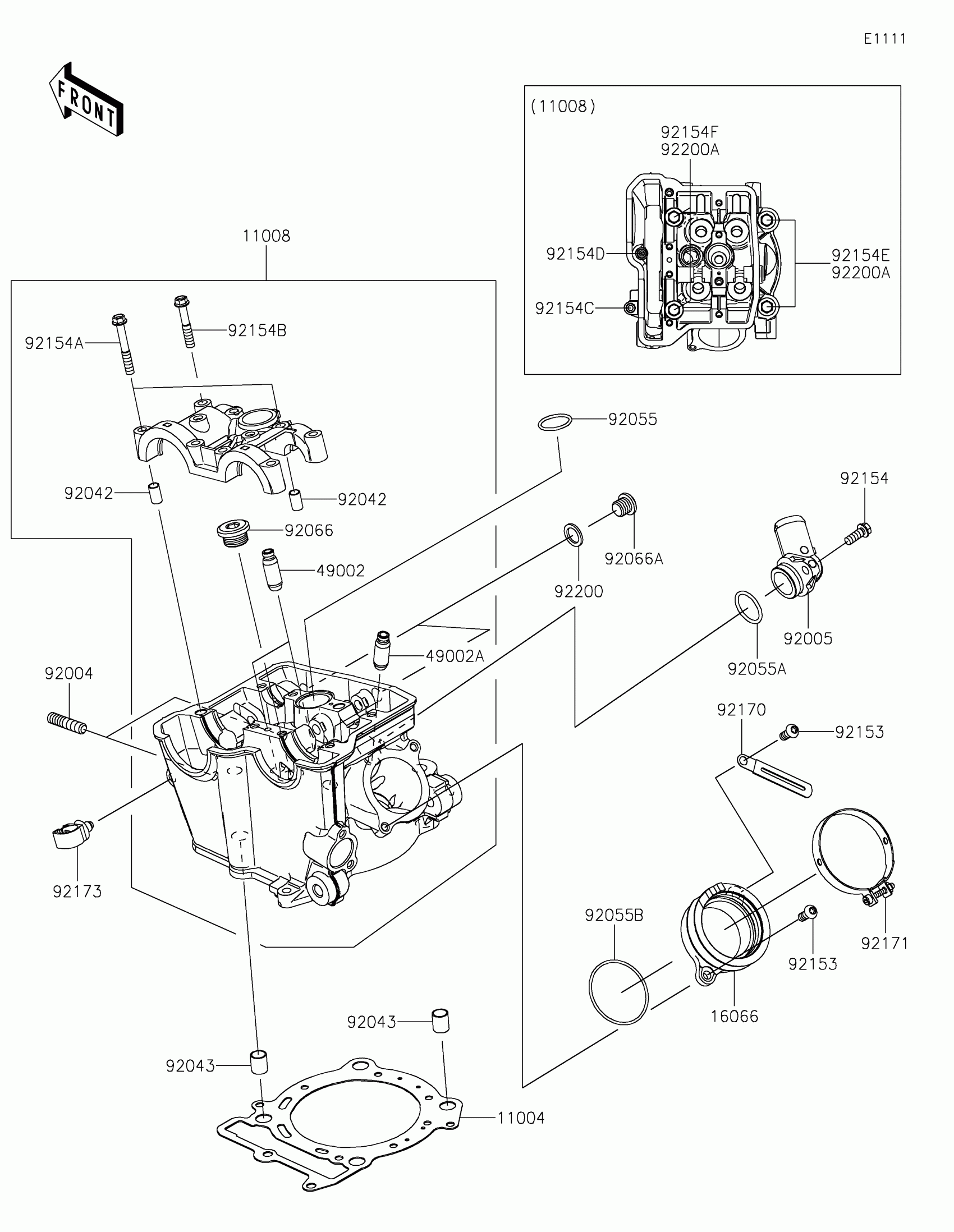

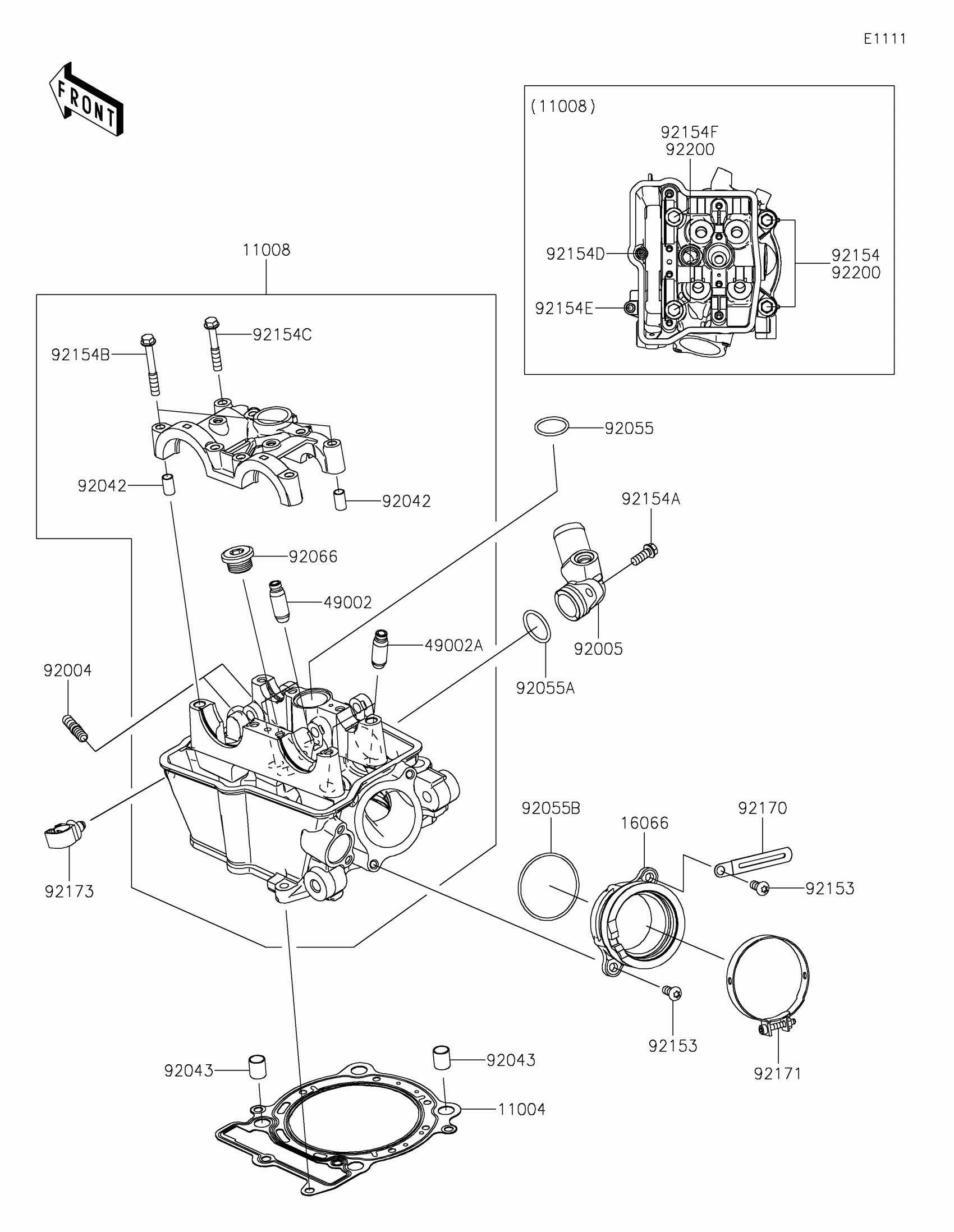

Kawasaki KX™450SR Cylinder Head Diagram

GASKET-HEAD

HEAD-COMP-CYLINDER

HOLDER-THROTTLE BODY

GUIDE-VALVE

GUIDE-VALVE

STUD,8X22

FITTING

PIN,DOWEL,6.3X8X14

PIN,10.1X12X14

RING-O,23.5X2.0

RING-O,22.1X2.4

RING-O,47X1.9

PLUG,18X10

PLUG

BOLT,TORX,6X14

BOLT,FLANGED,6X16

BOLT,FLANGED,6X42

BOLT,FLANGED,6X35

BOLT-SOCKET,6X25

BOLT-SOCKET,6X75

BOLT,FLANGED,10X132

BOLT,FLANGED,10X153

CLAMP

CLAMP

CLAMP,12MM DIA.

WASHER,12.5X18X1.6

WASHER,10.5X19X2.3
