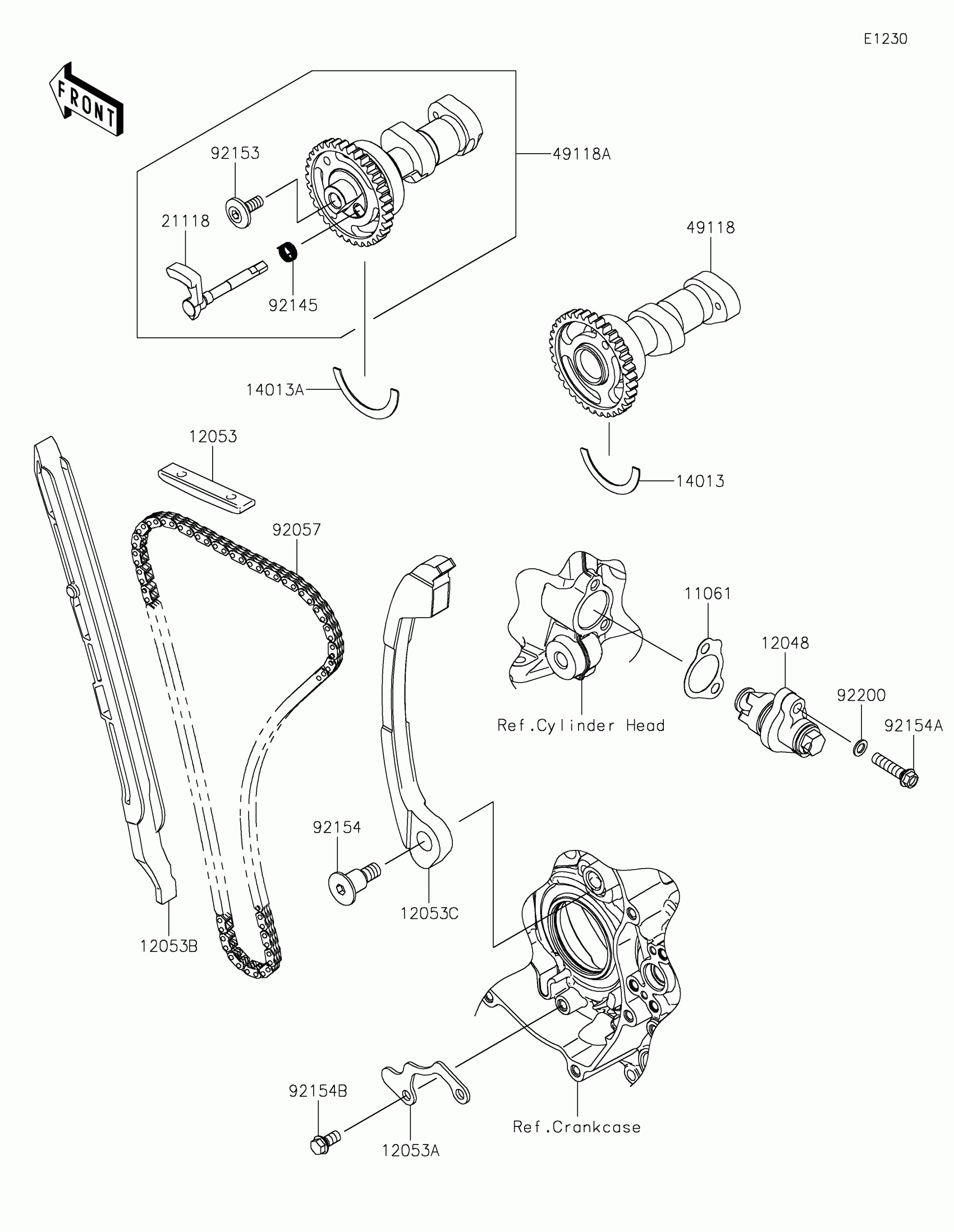

Kawasaki KX™450SR Camshaft(s)/Tensioner Diagram

Description

Price

11061

GASKET

11061-1288

$4.92

12048

TENSIONER-ASSY

12048-0088

$120.81

12053

GUIDE-CHAIN,UPP

12053-0051

$19.45

12053A

GUIDE-CHAIN,FR

12053-0256

$47.70

12053B

GUIDE-CHAIN,STOPPER

12053-0257

$4.34

12053C

GUIDE-CHAIN,RR

12053-0306

$70.45

14013

RING-POSITION

14013-0003

$4.85

14013A

RING-POSITION

14013-0004

$4.85

21118

DECOMPRESSOR

21118-0026

$110.94

49118

CAMSHAFT-COMP,INTAKE

49118-0991

$221.08

49118A

CAMSHAFT-COMP,EXHAUST

49118-0992

$286.31

92057

CHAIN,CAM,98XRH2010-126M

92057-0078

$51.76

92145

SPRING,DECOMP

92145-0365

$5.61

92153

BOLT,SOCKET,6X16

92153-0918

$8.76

92154

BOLT

92154-2944

$12.95

92154A

BOLT,FLANGED,6X25

92154-2967

$0.76

92154B

BOLT,FLANGED,6X12

92154-2975

$0.60

92200

WASHER,6.1X10.0X1.0

92200-0190

$1.85
