Description

Price

11011

CASE-AIR FILTER,L.GREEN

11011-0997-290

$89.02

11011A

CASE-AIR FILTER,RR,EBONY

11011-0998-6C

$33.20

11011B

CASE-AIR FILTER,FR,EBONY

11011-0999-6C

$46.38

11013

ELEMENT-AIR FILTER

11013-0843

$40.16

13280

HOLDER,ELEMENT

13280-1377

$48.25

13280A

HOLDER,ELEMENT

13280-1378

$10.30

14073

DUCT

14073-1923

$174.68

39156

PAD

39156-2906

$14.59

92075

DAMPER,10X24X12

92075-1690

$5.00

92150

BOLT,6X25

92150-1829

$4.31

92152

COLLAR

92152-1449

$7.54

92152A

COLLAR,6.3X8.3X16

92152-1602

$3.74

92161

DAMPER

92161-0266

$1.78

92161A

DAMPER,8.3X16X6.4

92161-1848

$10.05

92161B

DAMPER

92161-2508

$28.91

92170

CLAMP

92170-1514

$4.31

92172

SCREW,TAPPING,5X16

92172-0175

$1.78

92172A

SCREW,TAPPING,5X20

92172-0382

$2.55

92173

CLAMP,59.5MM

92173-2634

$20.37

92173A

CLAMP

92173-2655

$8.21

92210

NUT

92210-0571

$3.52

130

BOLT-FLANGED,5X25

130BA0525

$0.65

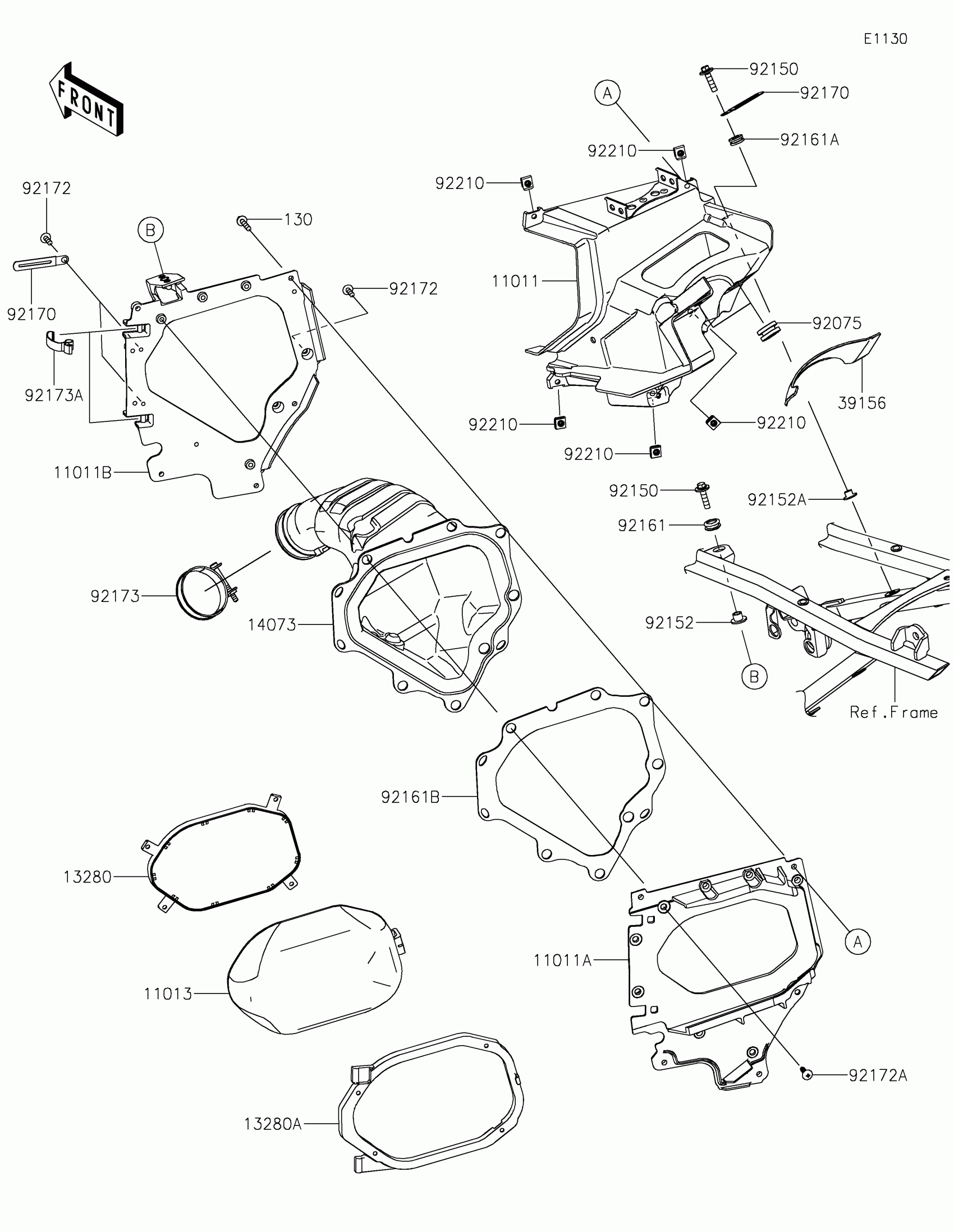

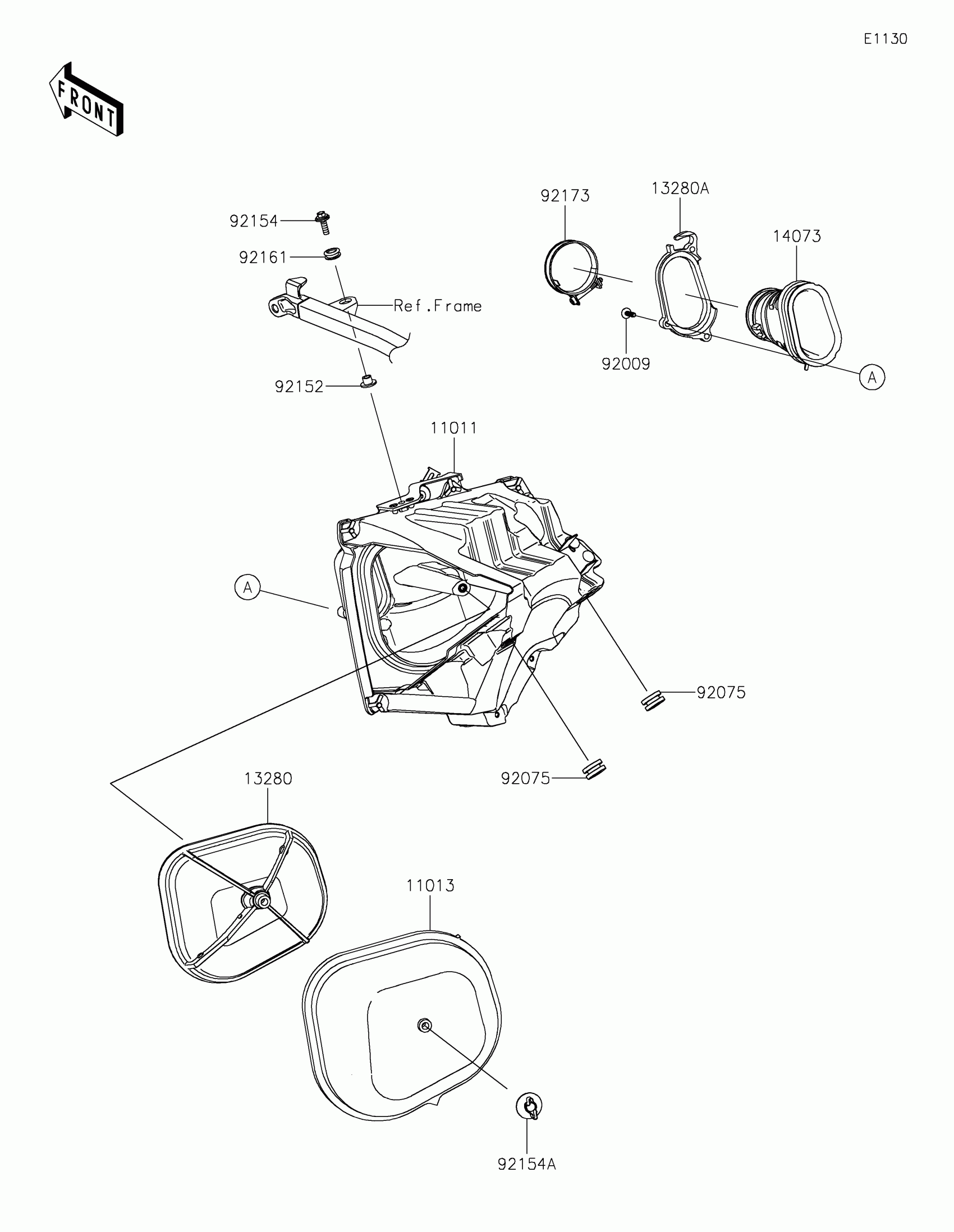

Kawasaki KX™450SR Air Cleaner Diagram

CASE-AIR FILTER,L.GREEN

CASE-AIR FILTER,RR,EBONY

CASE-AIR FILTER,FR,EBONY

ELEMENT-AIR FILTER

HOLDER,ELEMENT

HOLDER,ELEMENT

DUCT

PAD

DAMPER,10X24X12

BOLT,6X25

COLLAR

COLLAR,6.3X8.3X16

DAMPER

DAMPER,8.3X16X6.4

DAMPER

CLAMP

SCREW,TAPPING,5X16

SCREW,TAPPING,5X20

CLAMP,59.5MM

CLAMP

NUT

BOLT-FLANGED,5X25
