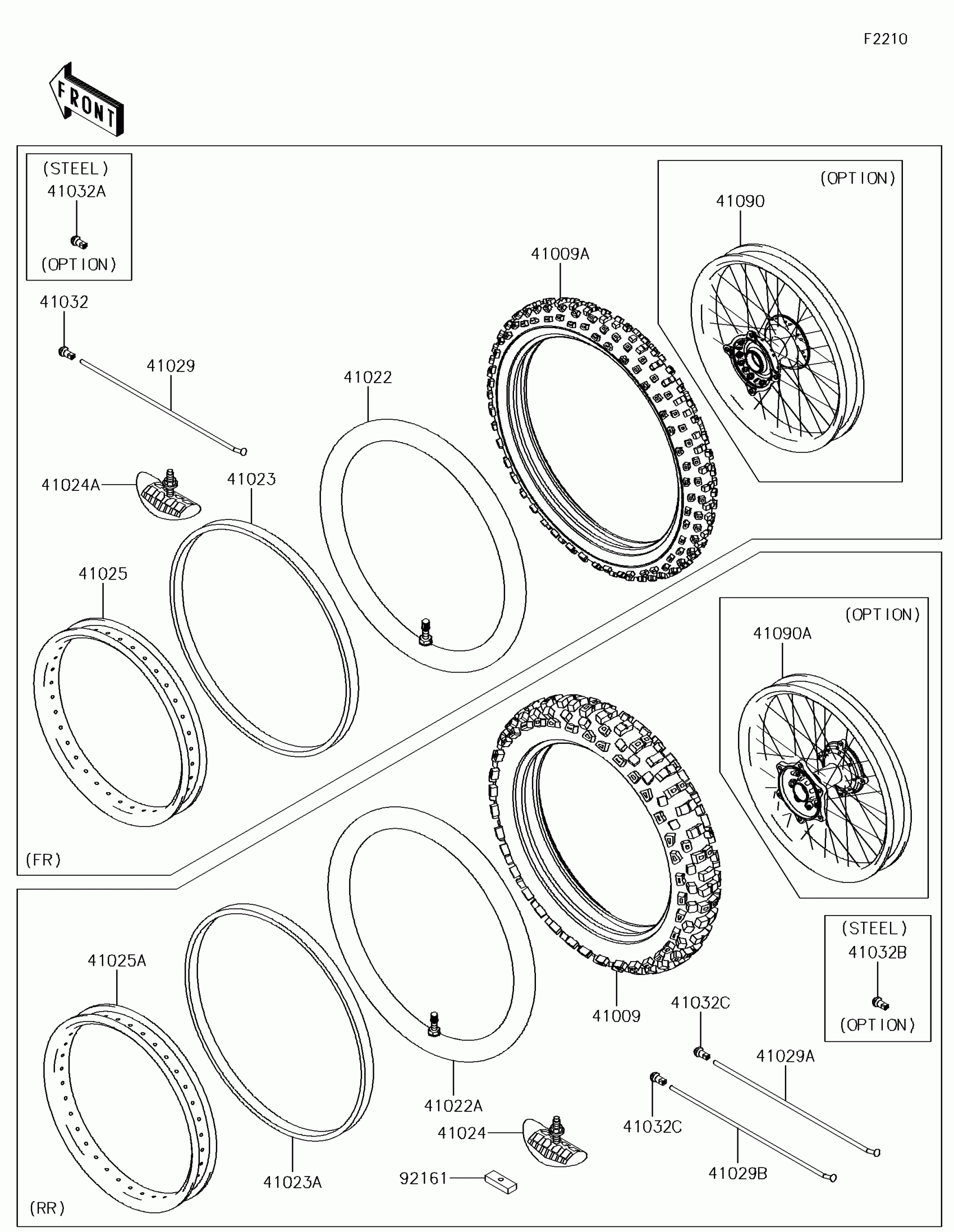

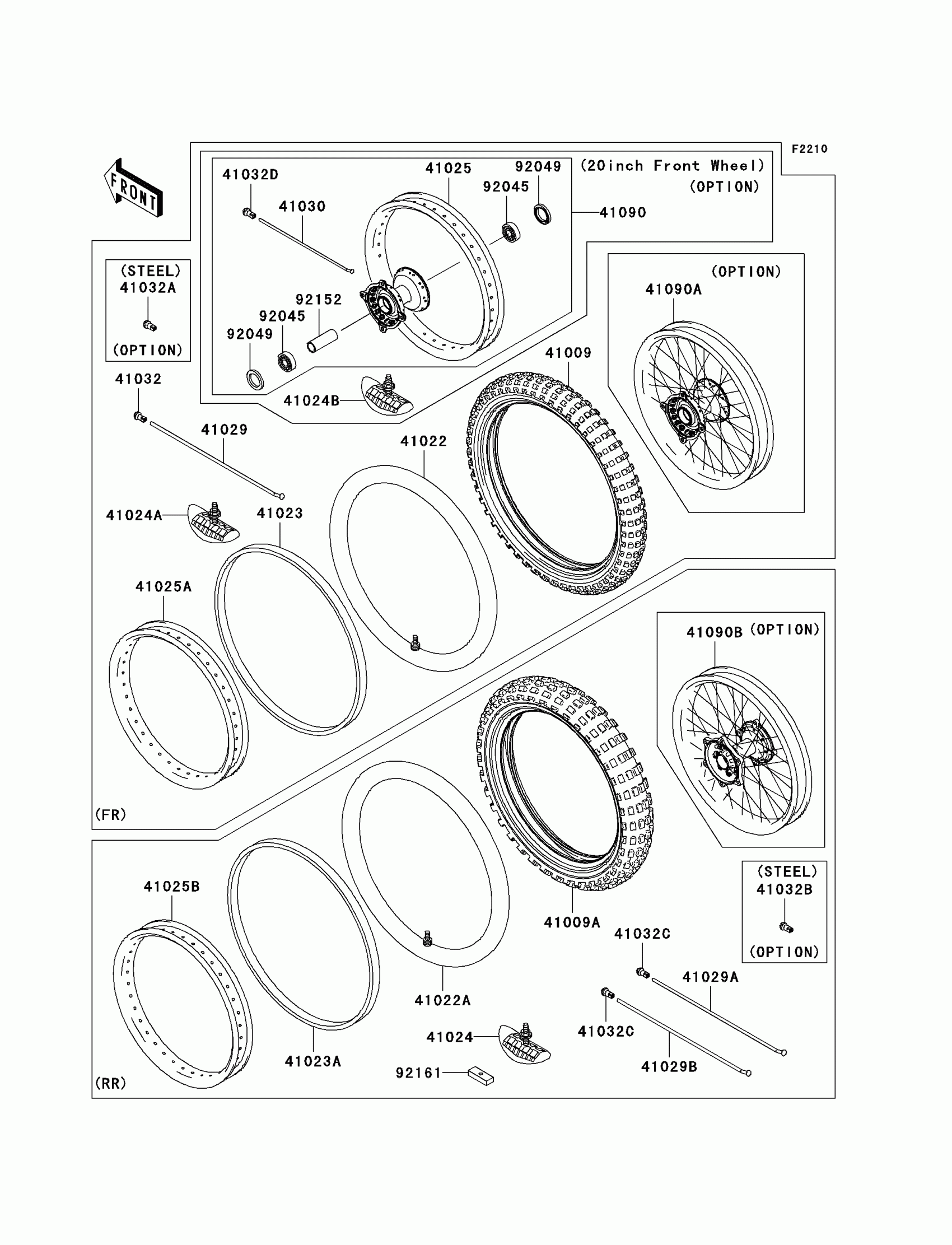

Kawasaki KX™450F Wheels/Tires Diagram

TIRE,FR,90/100-21 57M,D742F(D)

41009-0118

Unavailable

TIRE,RR,120/80-19 63M,D756(D)

41009-0119

$258.64

TUBE-TIRE,90/100-21(D)

41022-0022

$51.54

TUBE-TIRE,120/80-19(D)

41022-0023

$51.54

BAND-RIM,90/100-21(D)

41023-0009

$15.30

BAND-RIM,120/80-19(D)

41023-0010

$15.30

STOPPER-RIM,2.15-M(DUNLOP)

41024-009

$59.16

STOPPER-RIM,1.60-M(DUNLOP)

41024-010

$51.74

STOPPER-RIM,1.85-M(DUNLOP)

41024-011

$53.28

RIM,FR,1.85X20

41025-0015

$432.41

RIM,FR,1.60X21,BLACK

41025-0094-WC

$388.58

RIM,RR,2.15X19,BLACK

41025-0095-WC

$483.57

SPOKE-INNER,FR

41029-0003

$5.29

SPOKE-INNER,RR,202MMX160D

41029-1204

$7.22

SPOKE-INNER,RR,204MMX159D

41029-1330

$4.74

SPOKE-OUTER,FR,217.5MMX170D

41030-1172

$8.72

NIPPLE-SPOKE,ALUMINIUM

41032-0002

$3.70

NIPPLE-SPOKE,8X9X20(+),STEEL

41032-1077

$3.72

NIPPLE-SPOKE,STEEL

41032-1085

$3.54

NIPPLE-SPOKE,ALUMINIUM

41032-1086

$2.94

NIPPLE-SPOKE,ALUMINIUM

41032-1086

$2.94

WHEEL,FR,1.85X20,ALUM NIPPLE

41090-0012

$840.13

WHEEL,FR,1.60X21,ALUM NIPPLE

41090-5212

$890.64

WHEEL,RR,2.15X19,ALUM NIPPLE

41090-5213

$890.64

BEARING-BALL,69042RS

92045-1284

$29.43

SEAL-OIL,BJNC-2 25X37X5

92049-1403

$17.02

COLLAR,FRONT BRAKE DRUM,L=72

92152-1472

$26.04

DAMPER,RIM STOPPER

92161-1184

$3.92
