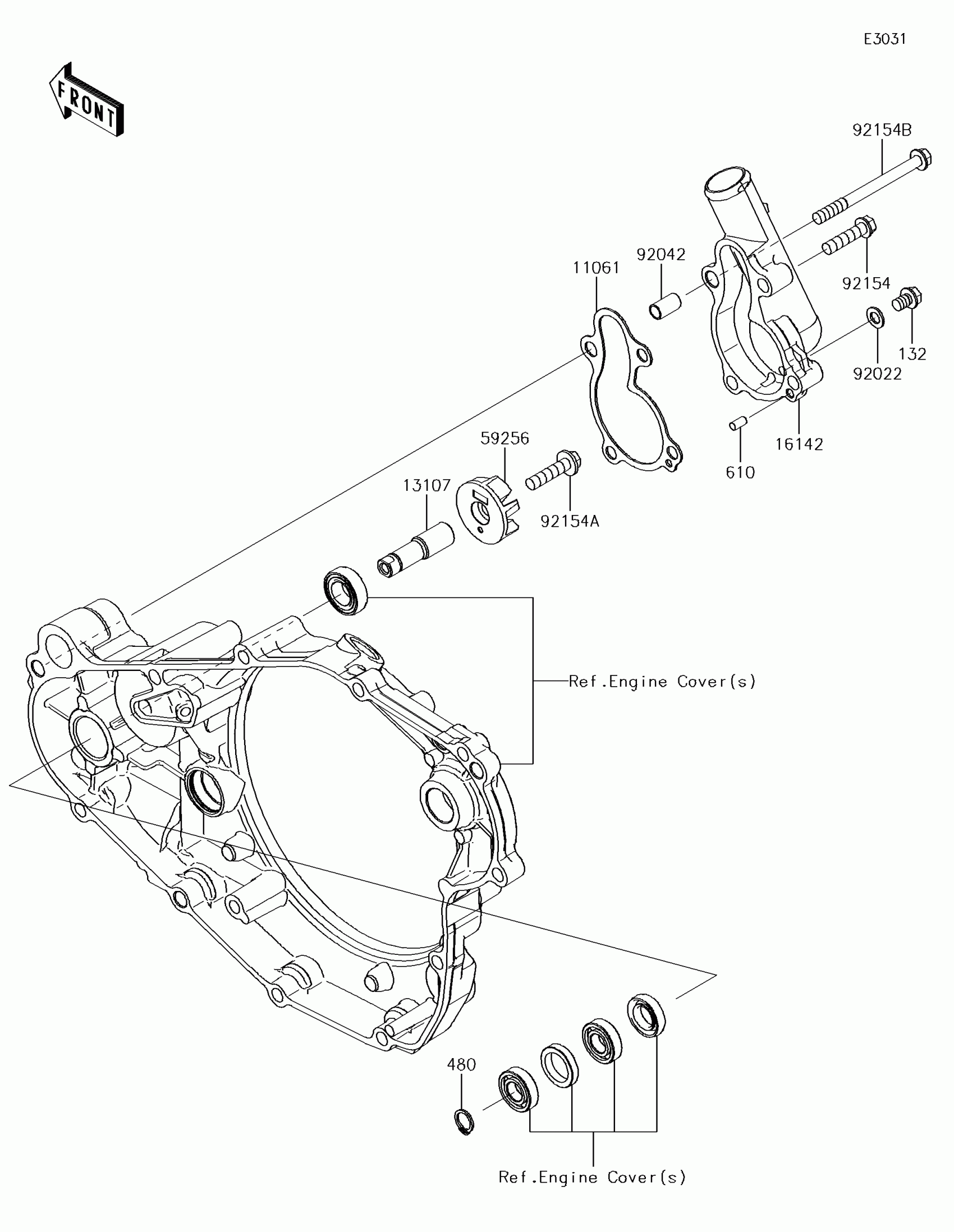

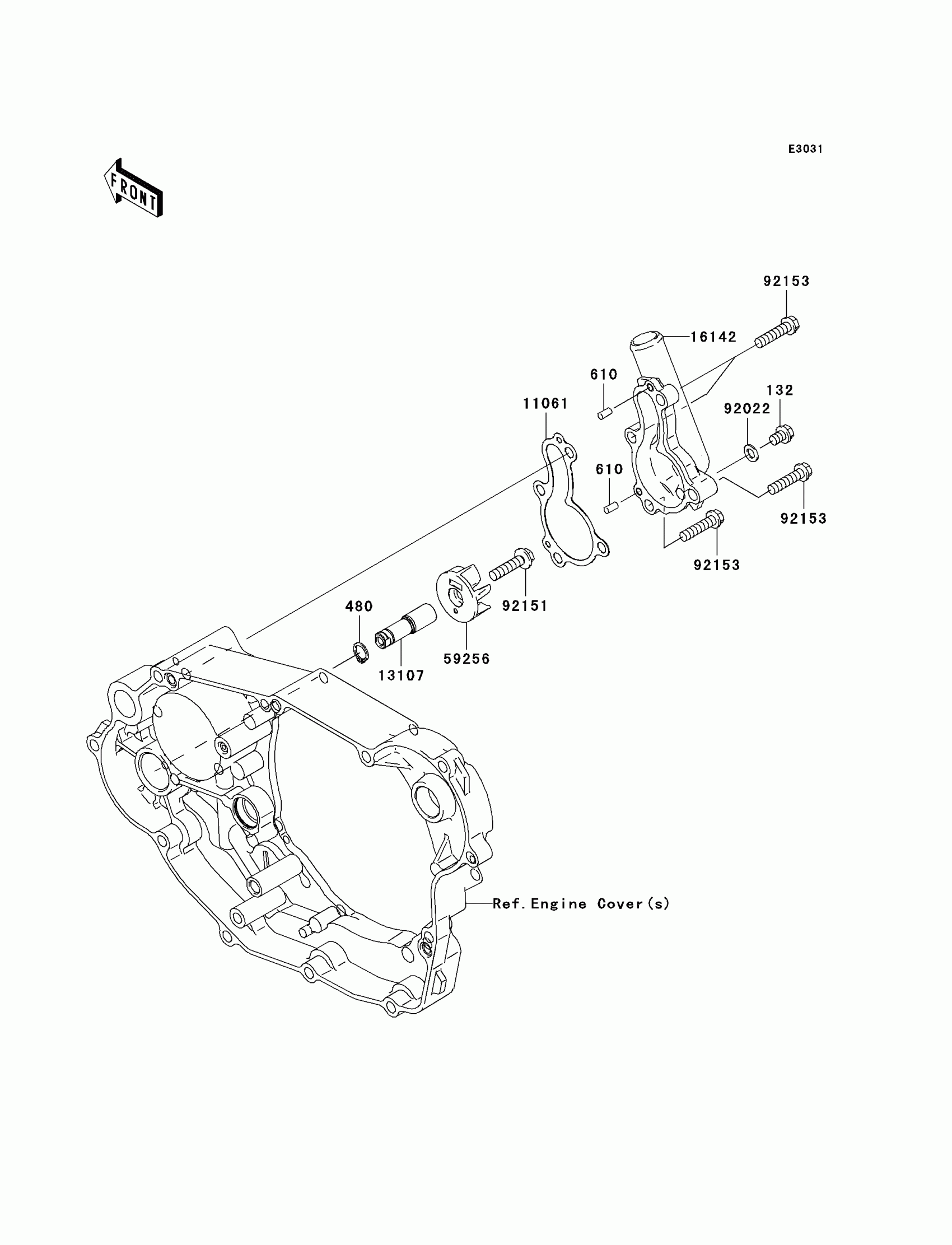

Kawasaki KX™450F Water Pump Diagram

Description

Price

11061

GASKET

11061-0983

$5.88

13107

SHAFT

13107-0826

$55.64

132

BOLT-FLANGED-SMALL,6X8

132BA0608

$2.49

16142

COVER-PUMP

16142-0726

$89.97

480

CIRCLIP-TYPE-C,10MM

480J1000

$0.65

59256

IMPELLER

59256-0003

$46.35

610

ROLLER,4X8

610A0408

$4.31

92022

WASHER,6.2X11X1

92022-304

$3.65

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92154

BOLT,FLANGED,6X25

92154-0520

$3.35

92154A

BOLT,FLANGED,6X25

92154-0531

$3.02

92154B

BOLT,FLANGED,6X70

92154-1930

$1.50
