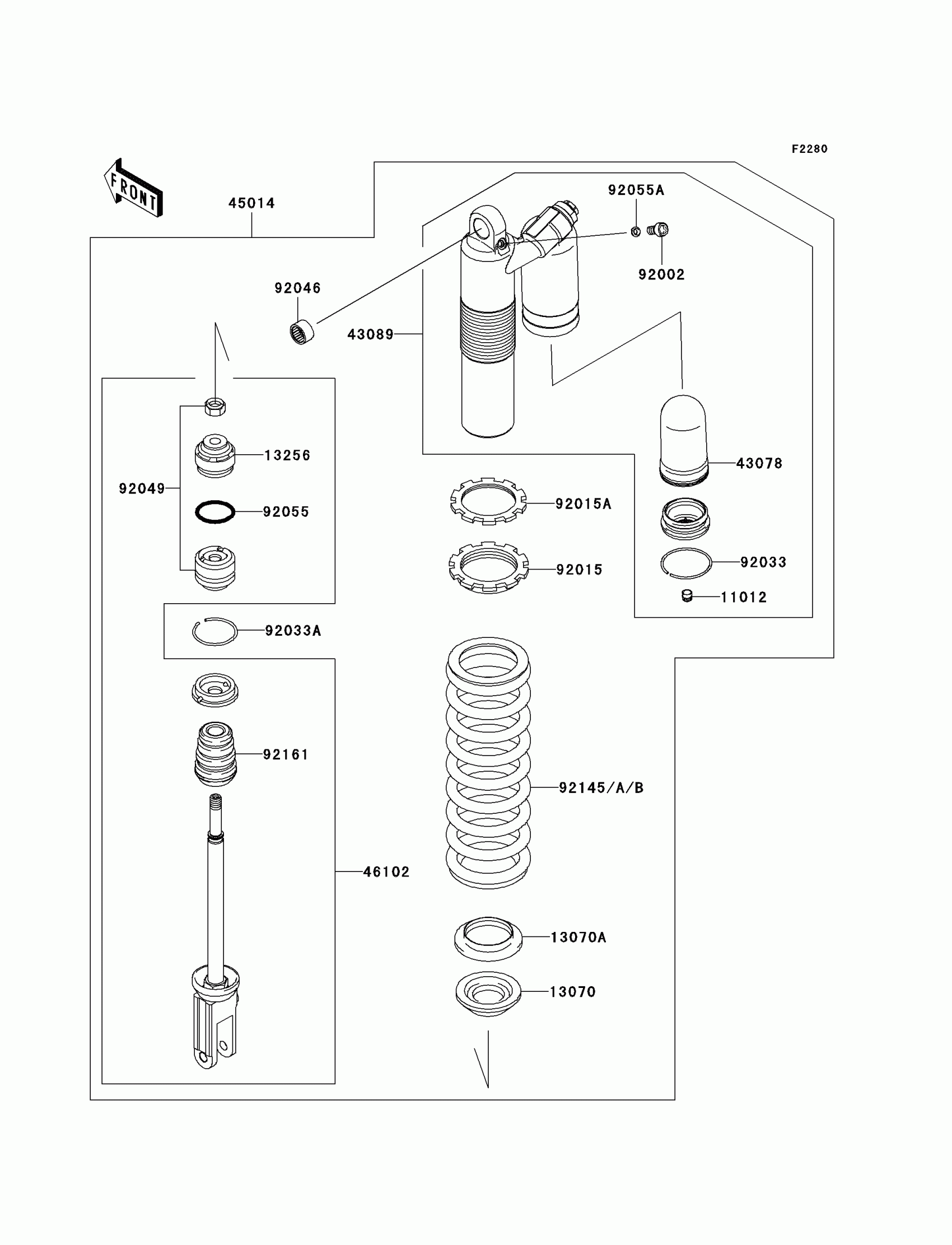

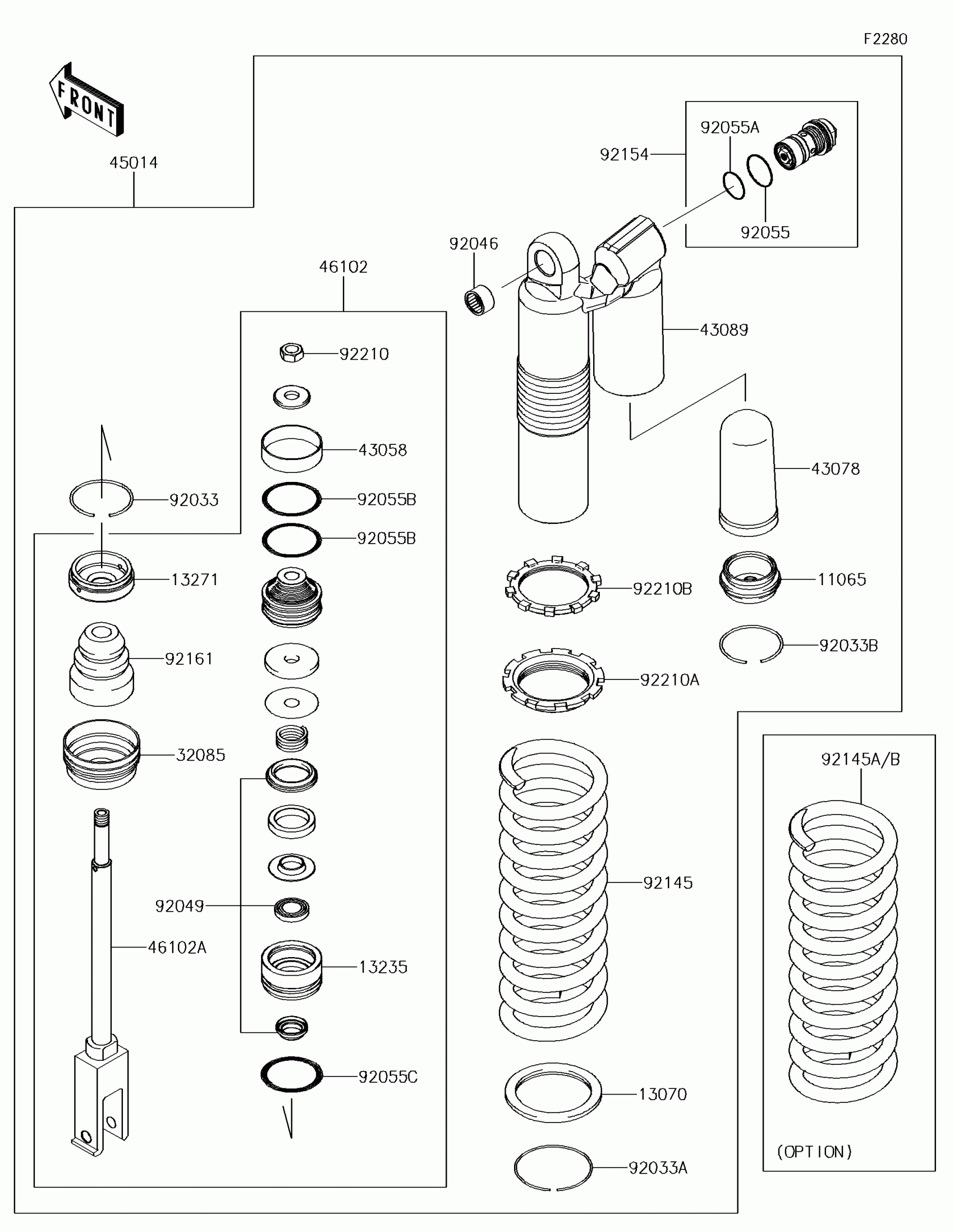

Kawasaki KX™450F Shock Absorber(s) Diagram
#
Description
Price
11065
CAP,CHAMBER
11065-0340
$47.46
13070
GUIDE,SPRING SEAT
13070-0057
$30.46
13235
GUIDE-COMP,ROD
13235-0012
$43.63
13271
PLATE,END
13271-0858
$27.48
32085
STOPPER,SPRING SEAT
32085-0077
$22.70
43058
RING,PISTON
43058-0012
$24.99
43078
RESERVOIR
43078-0030
$29.17
43089
CYLINDER-SHOCKABSORBER
43089-0032
$637.74
45014
SHOCKABSORBER,BLACK+GRN
45014-0563-52L
$1,281.49
46102
ROD,PISTON
46102-0622
$502.40
46102A
ROD,PISTON
46102-0625
$340.23
92033
RING-SNAP
92033-0040
$4.87
92033A
RING-SNAP
92033-0042
$11.82
92033B
RING-SNAP
92033-0076
$4.87
92046
BEARING-NEEDLE,7E-HVS16X22X12
92046-1301
$19.53
92049
SEAL-OIL
92049-0151
$39.80
92055
RING-O,PLUG BOLT
92055-0098
$4.20
92055A
RING-O,PLUG BOLT
92055-0099
$3.93
92055B
RING-O
92055-0100
$7.75
92055C
RING-O
92055-0101
$7.75
92145
SPRING,REAR SHOCK,K=52N/MM,BLK
92145-1746-10
$207.78
92145A
SPRING,REAR SHOCK,K=54N/MM,BLK
92145-1759-10
$207.78
92145B
SPRING,REAR SHOCK,K=50N/MM,BLK
92145-1760-10
$207.78
92154
BOLT,PLUG
92154-2285
$171.12
92161
DAMPER,STOPPER
92161-0329
$22.01
92210
NUT,PISTON
92210-0270
$4.65
92210A
NUT,SPRING ADJUSTER
92210-0814
$36.01
92210B
NUT,SPRING ADJUST NUT
92210-0815
$32.36
