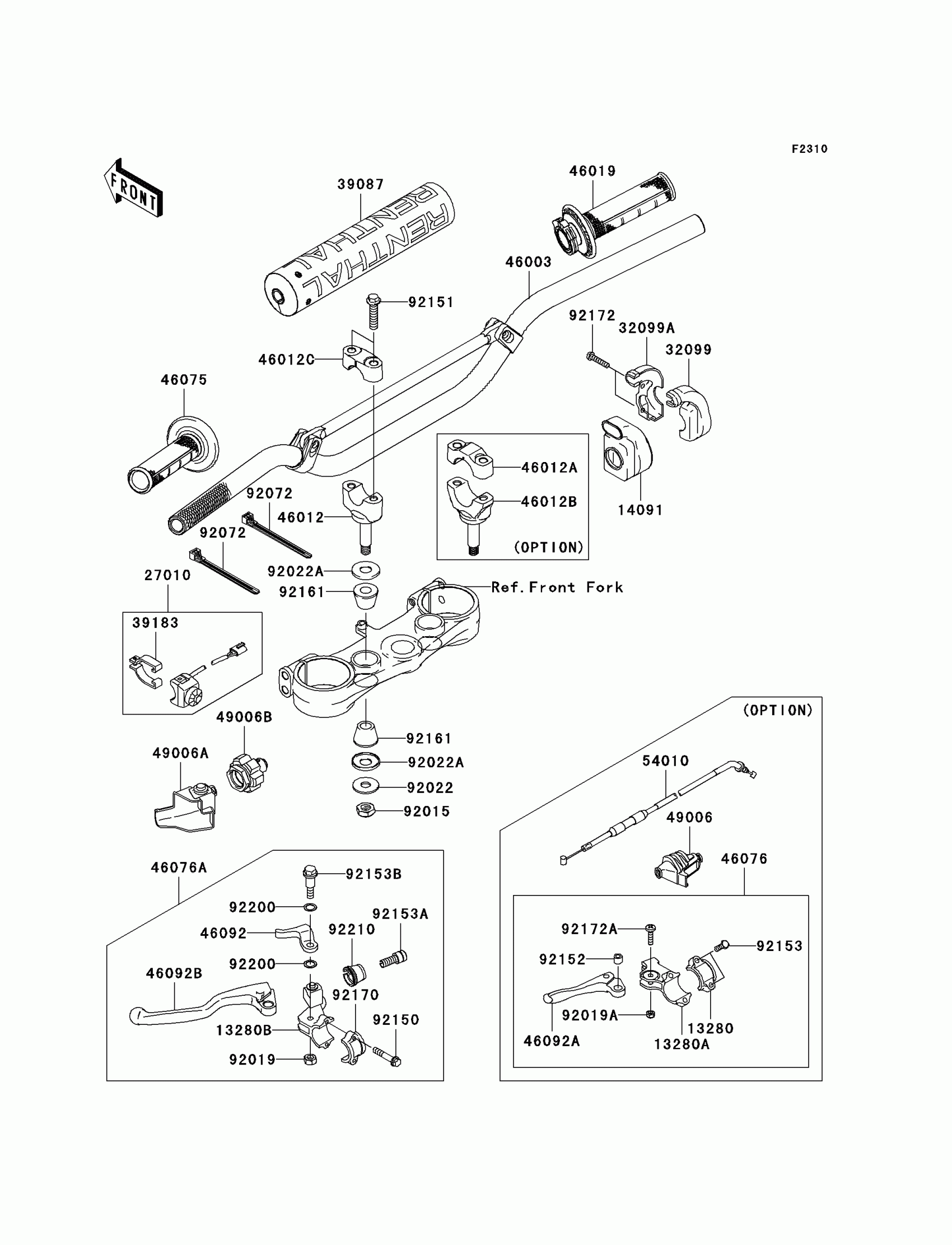

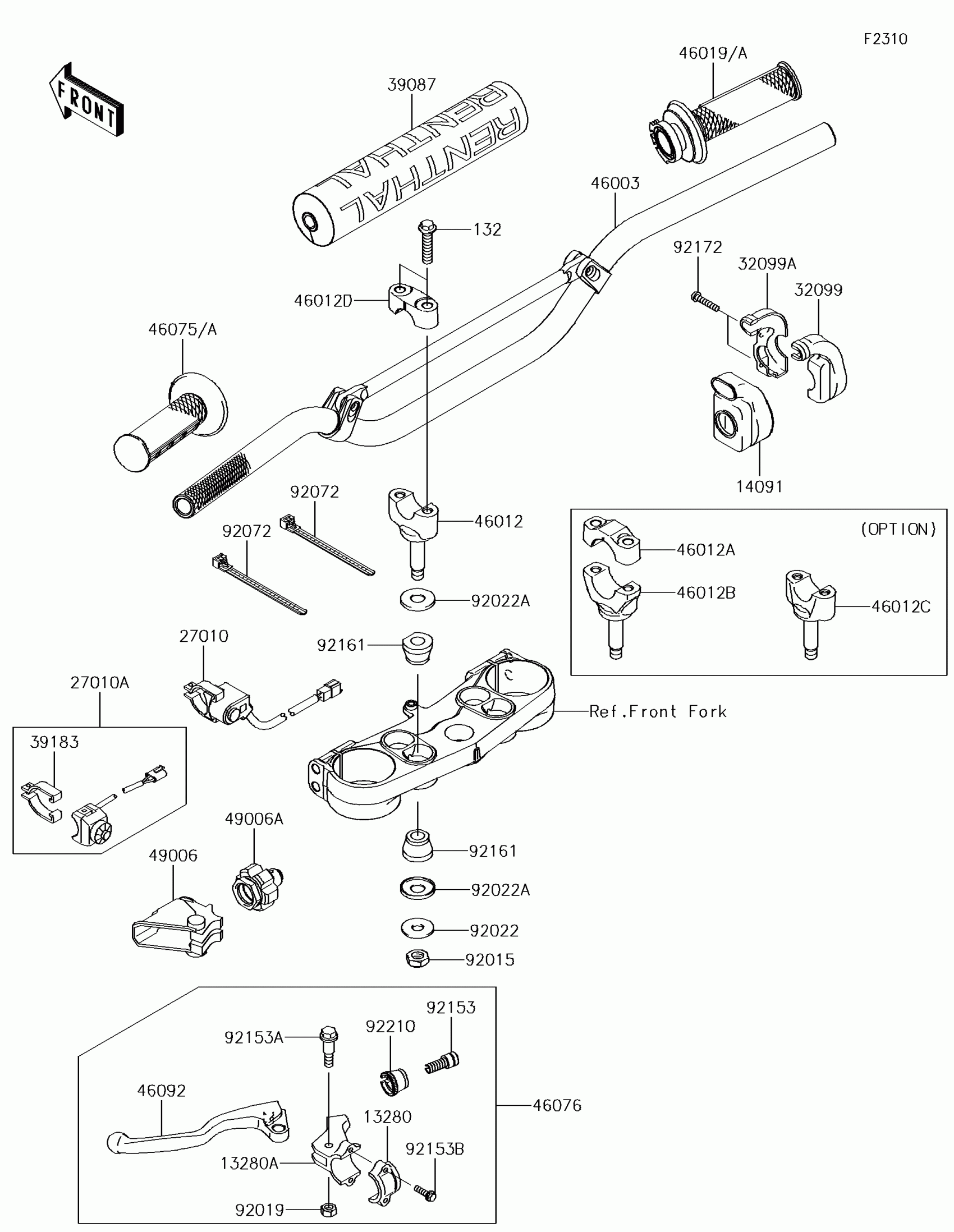

Kawasaki KX™450F Handlebar Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,8X35
132BA0835
$4.76
13280
HOLDER
13280-0055
$28.62
13280A
HOLDER,CLUTCH LEVER
13280-0118
$55.09
14091
COVER,THROTTLE CASE
14091-0182
$10.06
27010
SWITCH
27010-0812
$125.11
27010A
SWITCH,ENGINE STOP
27010-0826
$55.13
32099
CASE,THROTTLE,RR
32099-0002
$30.31
32099A
CASE,THROTTLE,FR
32099-0003
$30.31
39087
PAD-HANDLE
39087-0004
$74.54
39183
BAND-ASSY,SWITCH
39183-1059
$13.02
46003
HANDLE,RENTHAL,K971
46003-0572
$201.30
46012
HOLDER-HANDLE,LWR,F.BLACK
46012-0013-21
$42.27
46012A
HOLDER-HANDLE,UPP,FAT BAR,BLK
46012-0020-21
$24.15
46012B
HOLDER-HANDLE,LWR,FAT BAR,BLK
46012-0021-21
$42.27
46012C
HOLDER-HANDLE,LWR,F.BLACK
46012-0048-21
$42.27
46012D
HOLDER-HANDLE,UPP,F.BLACK
46012-0324-21
$24.27
46019A
GRIP-ASSY,THROTTLE
46019-0069
$51.65
46075A
GRIP,LH
46075-0615
$14.62
46076
LEVER-ASSY-GRIP,CLUTCH
46076-0055
$50.65
46092
LEVER-GRIP,CLUTCH
46092-0016
$20.88
49006
BOOT,CLUTCH LEVER
49006-0030
$20.56
49006A
BOOT,CLUTCH CABLE
49006-0060
$7.60
92015
NUT,LOCK,10MM
92015-1962
$6.11
92019
NUT,LOCK,6MM
92019-008
$4.26
92022
WASHER,10.2X28X2
92022-1088
$4.69
92022A
WASHER
92022-1737
$5.52
92072
BAND,L=140
92072-1293
$7.11
92153
BOLT,BOLT ADJUSTING
92153-0773
$11.95
92153A
BOLT
92153-0807
$2.63
92153B
BOLT,5X16
92153-0808
$4.24
92161
DAMPER,HANDLE HOLDER
92161-0929
$5.65
92172
SCREW,5X20
92172-0069
$3.32
92210
NUT,BOLT WIRE ADJUSTING
92210-0167
$31.86
