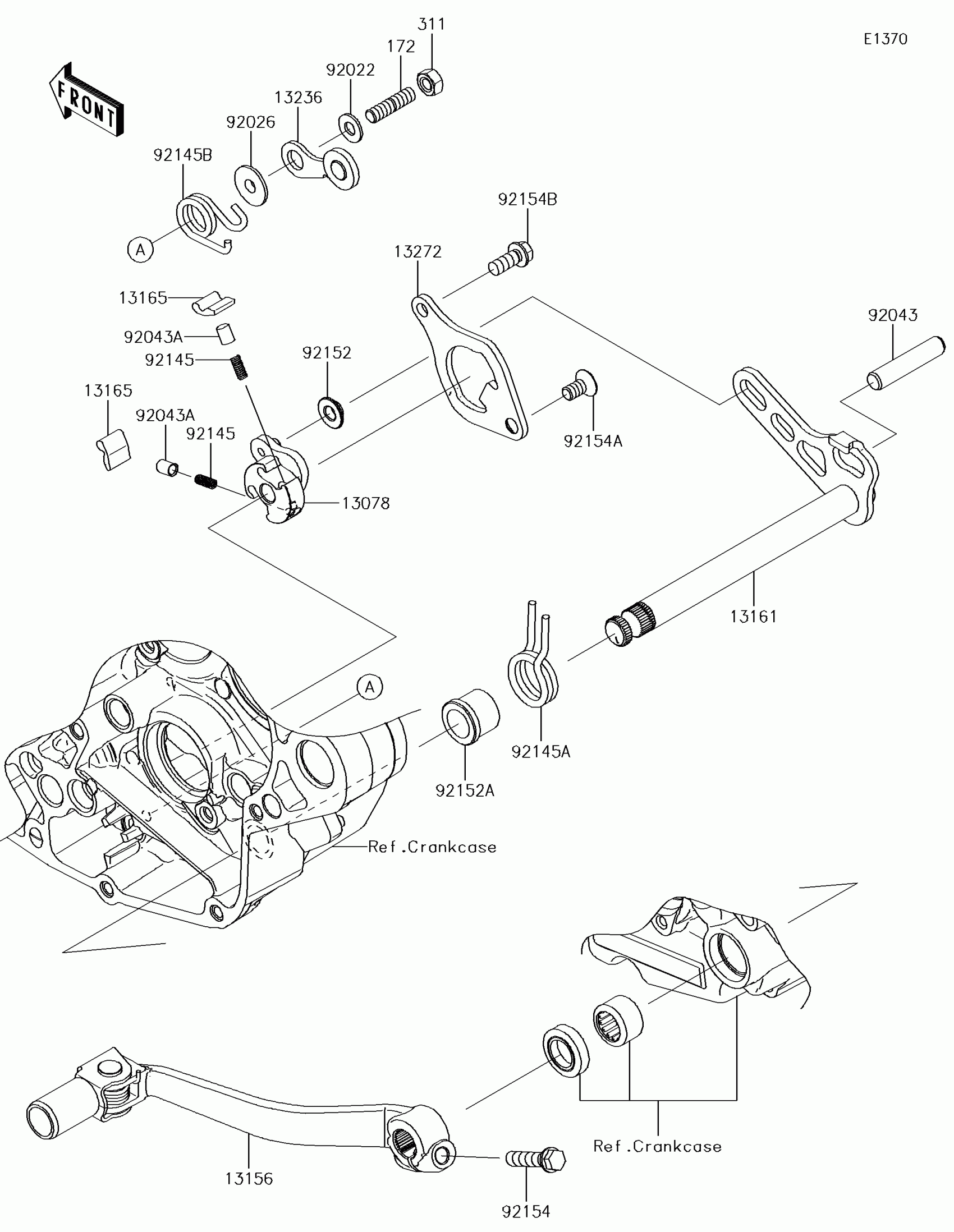

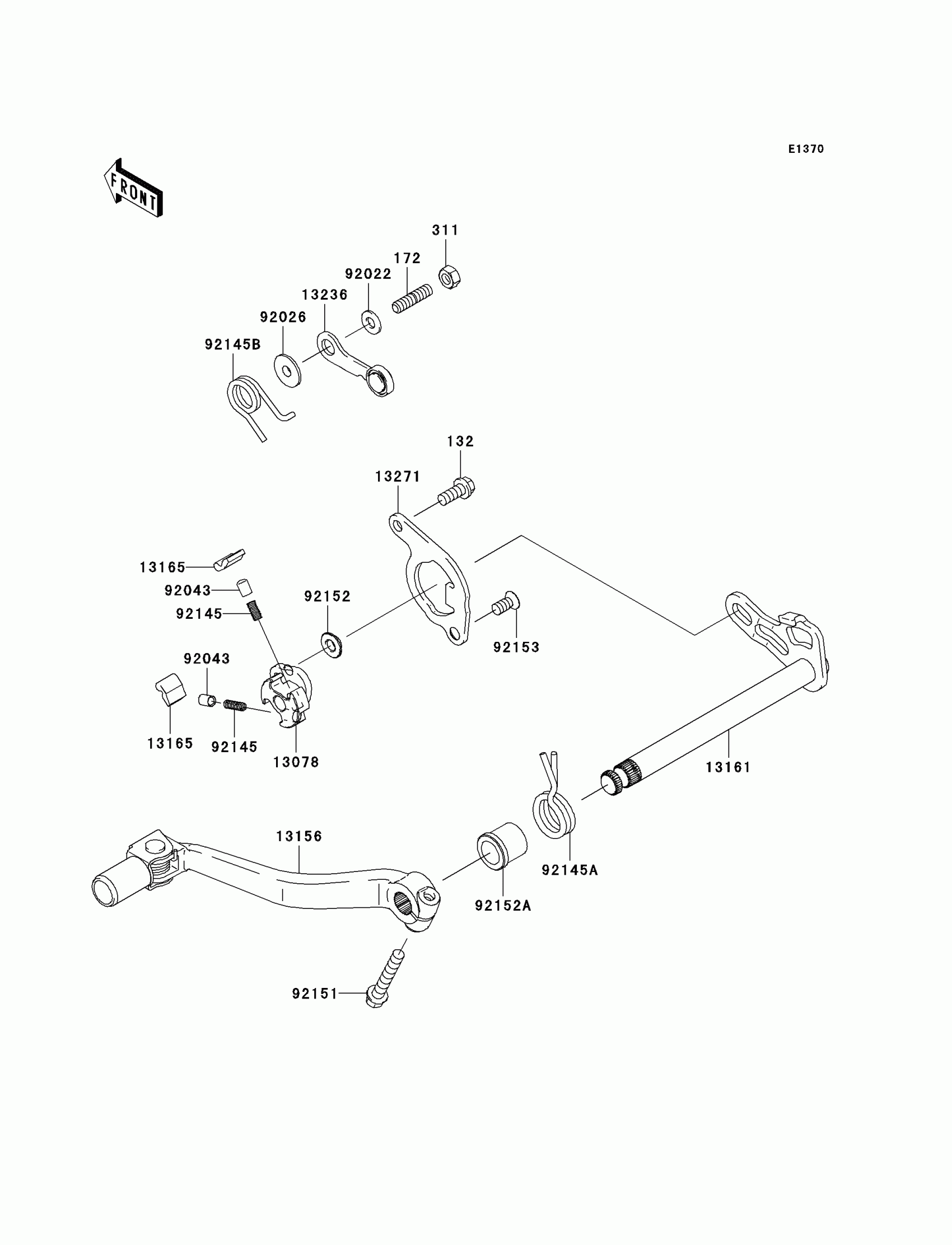

Kawasaki KX™450F Gear Change Mechanism Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132G0614

Unavailable

172

BOLT-STUD,6X12

172G0612

Unavailable

311

NUT-HEX,6MM

311G0600

Unavailable

13078

RATCHET

13078-0012

$72.59

13156

LEVER-CHANGE

13156-0084

$113.70

13161

LEVER-COMP-CHANGE SHAFT

13161-0045

Unavailable

13165

PAWL

13165-0017

$19.24

13236

LEVER-COMP,POSITION

13236-0129

$15.37

13271

PLATE,PAWL GUIDE

13271-0893

$12.95

92022

WASHER,6X12.8X1.2

92022-1827

$3.57

92026

SPACER

92026-1217

$4.18

92043

PIN,PLUNGER

92043-1676

$6.65

92145

SPRING

92145-0453

$3.49

92145A

SPRING,RETURN

92145-0496

$13.05

92145B

SPRING,POSITION LEVER

92145-0497

$9.86

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92152

COLLAR

92152-1414

$5.82

92152A

COLLAR,RETURN SPRING

92152-1419

$7.51

92153

BOLT,TORX,6X8.7

92153-1669

$2.98
