2008 Kawasaki KX™450F Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2008 Kawasaki KX™450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

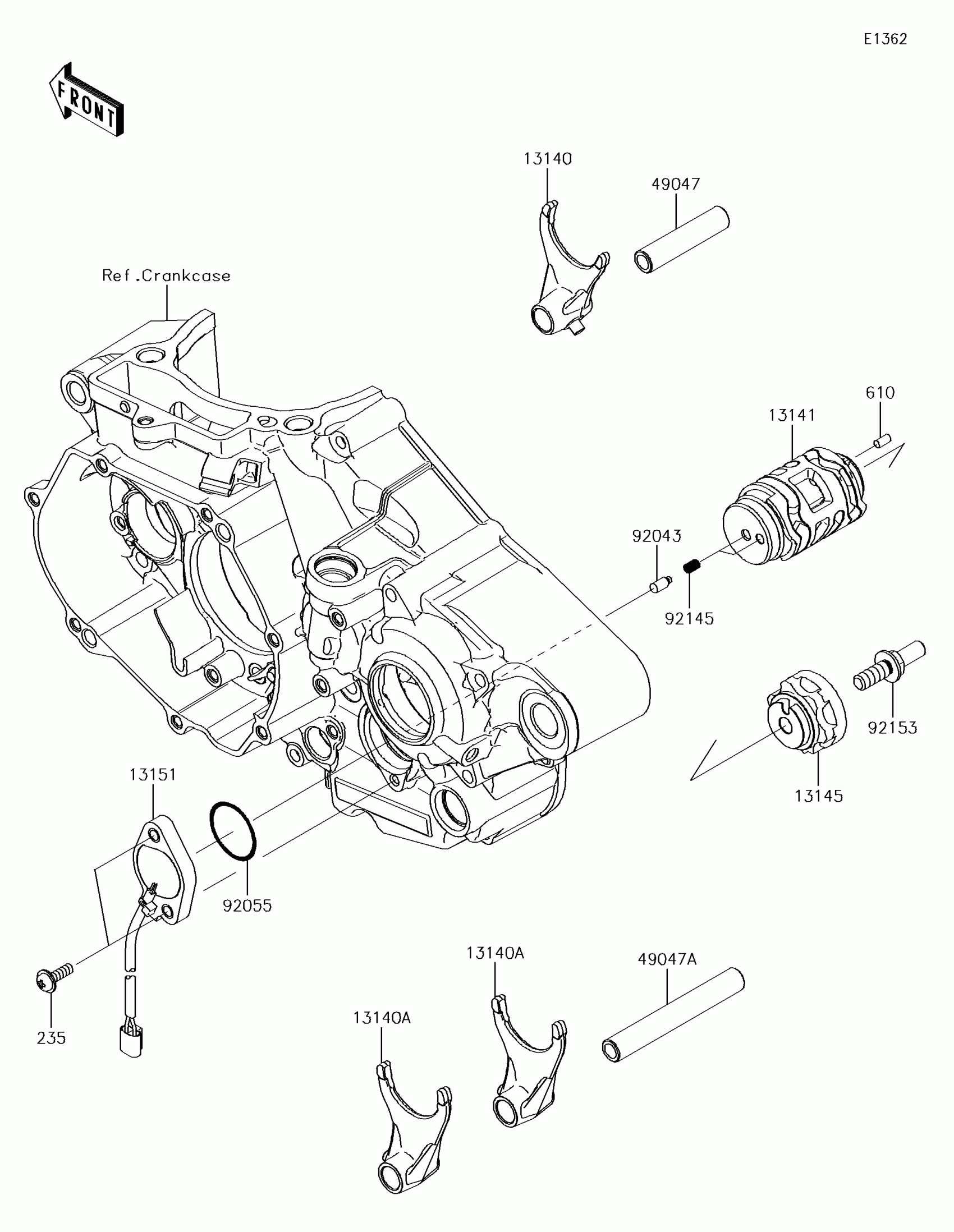

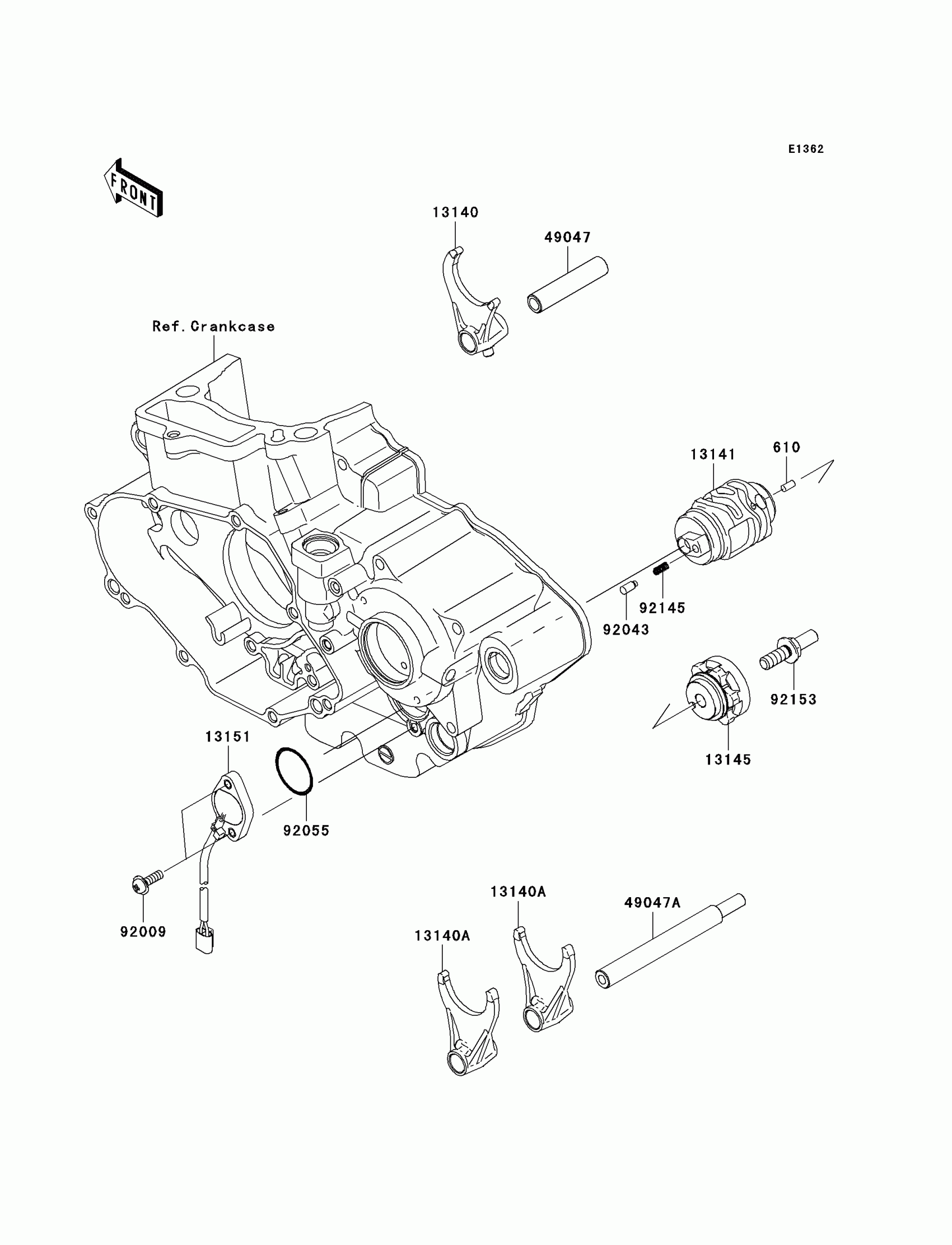

2008 Kawasaki KX™450F Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

610

ROLLER,4X8

610A0408

1
Out of stock

13140

FORK-SHIFT,IN

13140-0043

1
Out of stock

13140A

FORK-SHIFT,OUT

13140-0044

1
Out of stock

13141

DRUM-CHANGE

13141-0029

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0031

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-0008

1
Out of stock

49047

ROD-SHIFT,IN

49047-0017

1
Out of stock

49047A

ROD-SHIFT,OUT

49047-0028

1
Out of stock

92009

SCREW,5X16

92009-1571

1
Out of stock

92043

PIN

92043-1654

1
Out of stock

92055

RING-O,27.7X2.4

92055-091

1
Out of stock

92145

SPRING

92145-1414

1
Out of stock

92153

BOLT,8X20

92153-0530

1
Out of stock
