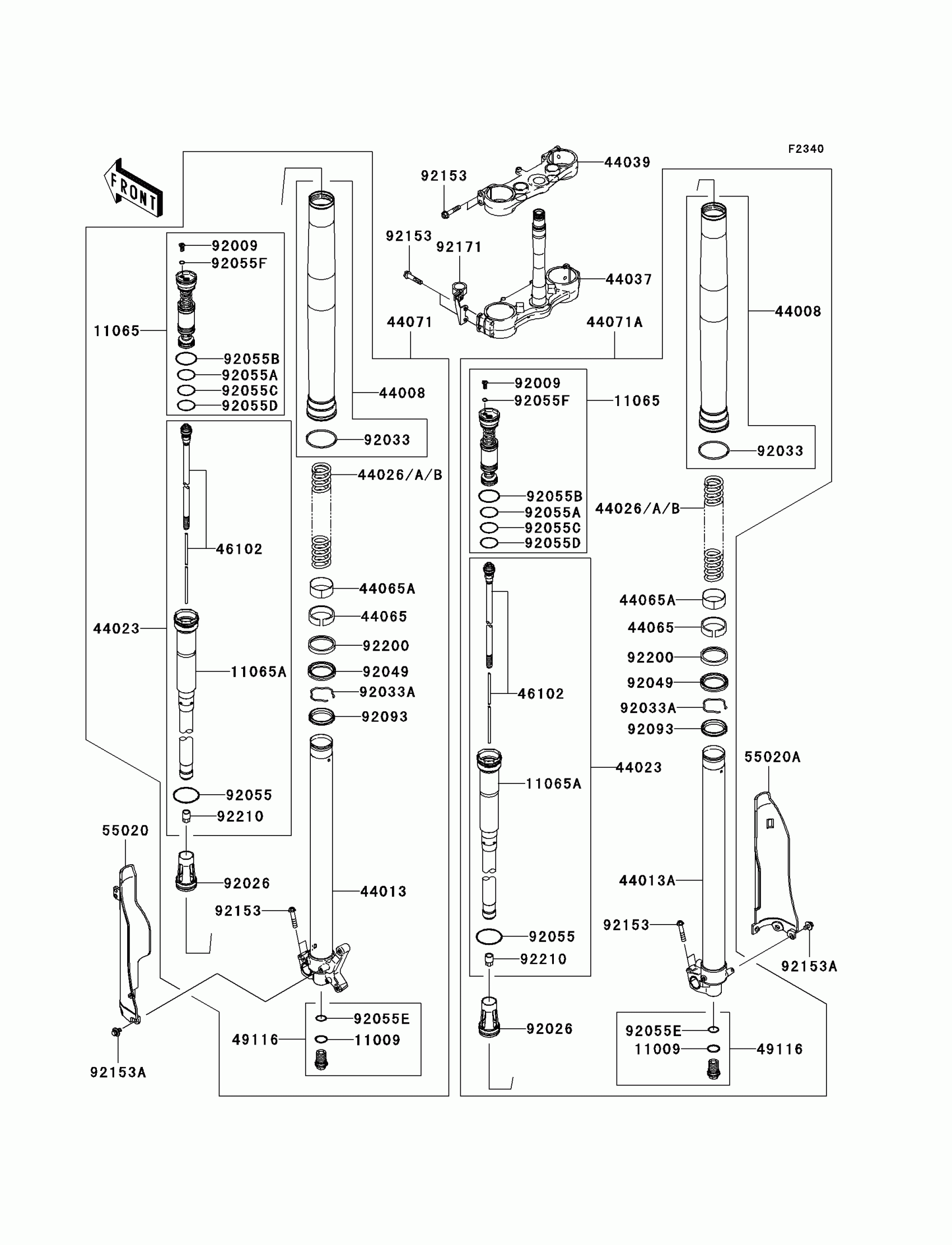

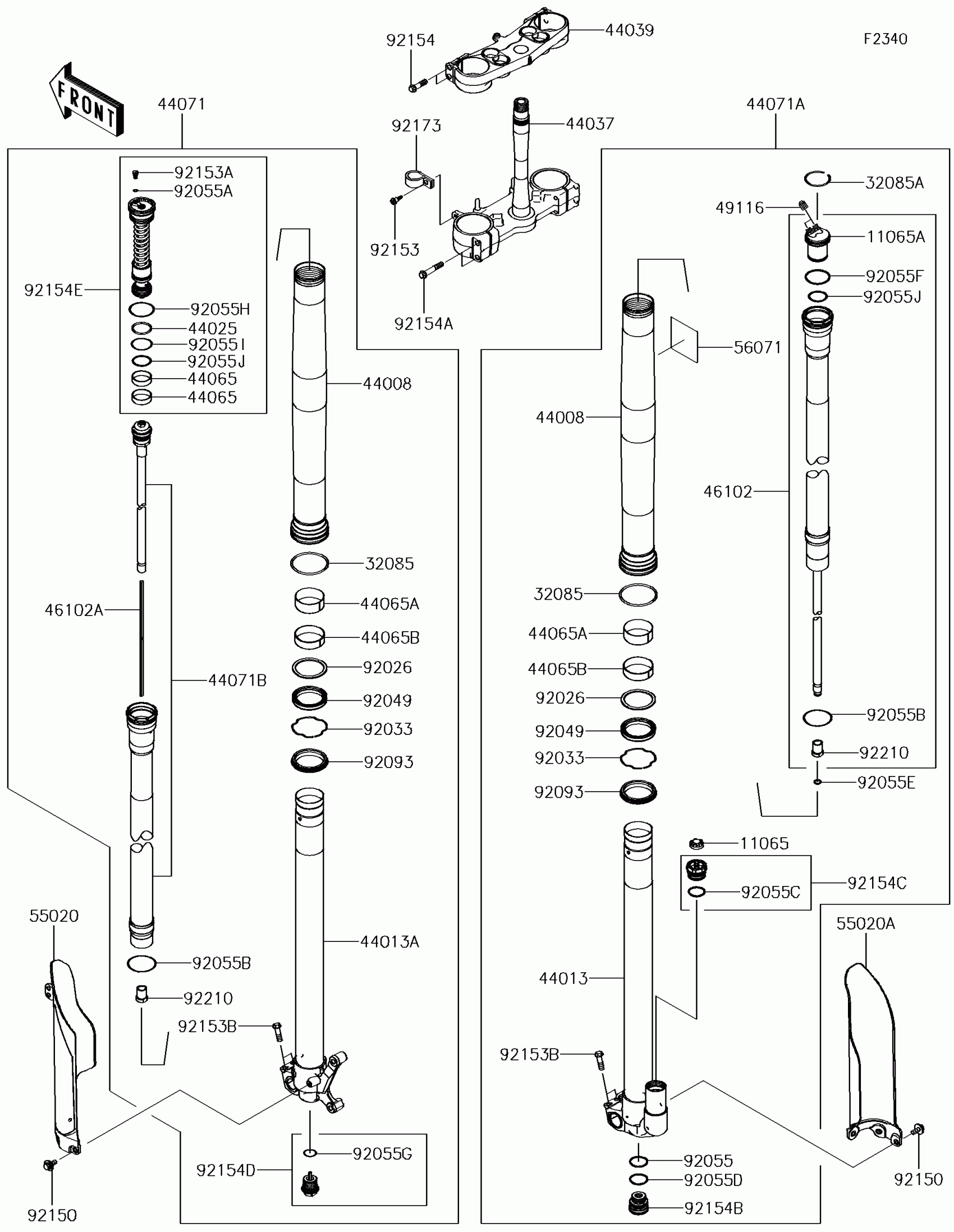

Kawasaki KX™450F Front Fork Diagram
#
11065
CAP,AIR VALVE
11065-0873
$3.29
11065A
CAP,CHAMBER,G.B.GREEN
11065-0963-50Y
$105.36
32085
STOPPER,RING
32085-0773
$6.00
32085A
STOPPER
32085-0782
$6.05
44008
PIPE-FORK OUTER
44008-0083
$514.86
44013
PIPE-FORK INNER,RH
44013-0279
$573.30
44013A
PIPE-FORK INNER,LH
44013-0308
$573.30
44025
RING-FORK PISTON
44025-0012
$20.04
44037
HOLDER-FORK UNDER,F.BLACK
44037-0164-21
$610.02
44039
HOLDER-FORK UPPER,F.BLACK
44039-0161-21
$250.70
44065
BUSHING-FRONT FORK,SLIDE
44065-0018
$7.82
44065A
BUSHING-FRONT FORK
44065-0049
$15.06
44065B
BUSHING-FRONT FORK
44065-0050
$14.49
44071
DAMPER-ASSY,FORK,LH,GR+BLK+BLK
44071-1195-56B
$2,310.11
44071A
DAMPER-ASSY,FORK,RH,GR+BLK+BLK
44071-1196-56B
$1,909.26
44071B
DAMPER-ASSY,COMP
44071-1238
$664.74
46102
ROD,G.B.GREEN
46102-0623-50Y
$970.42
46102A
ROD,PUSH
46102-0624
$10.49
49116
VALVE-ASSY,AIR
49116-0040
$2.04
55020
GUARD,FORK,LH,EBONY
55020-1938-6C
$55.96
55020A
GUARD,FORK,RH,EBONY
55020-1939-6C
$55.96
56071
LABEL-WARNING
56071-0496
$19.62
92026
SPACER,SEAL
92026-0785
$4.18
92033
RING-SNAP
92033-0751
$6.18
92049
SEAL-OIL
92049-0768
$32.48
92055
RING-O
92055-0093
$3.93
92055A
RING-O
92055-0094
$2.97
92055B
RING-O
92055-0744
$3.72
92055C
RING-O
92055-0799
$3.61
92055D
RING-O
92055-0800
$1.63
92055E
RING-O
92055-0801
$1.47
92055F
RING-O
92055-0802
$5.70
92055G
RING-O
92055-0804
$1.63
92055H
RING-O
92055-0807
$5.65
92055I
RING-O
92055-0877
$4.76
92055J
RING-O
92055-0895
$5.70
92093
SEAL
92093-0657
$21.59
92150
BOLT,6X14
92150-1340
$5.07
92153
BOLT,FLANGED
92153-1397
$3.90
92153A
BOLT,PLUG
92153-1398
$3.39
92153B
BOLT,FLANGED,8X40
92153-1399
$4.65
92154
BOLT
92154-0463
$4.41
92154A
BOLT
92154-0464
$3.65
92154B
BOLT,SEALING
92154-1500
$30.70
92154C
BOLT
92154-1904
$65.06
92154D
BOLT,CNT
92154-2286
$43.54
92154E
BOLT,G.B.GREEN
92154-2287-50Y
$384.29
92173
CLAMP
92173-1579
$15.41
92210
NUT,LOCK
92210-0922
$15.20
