2008 Kawasaki KX™450F Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2008 Kawasaki KX™450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

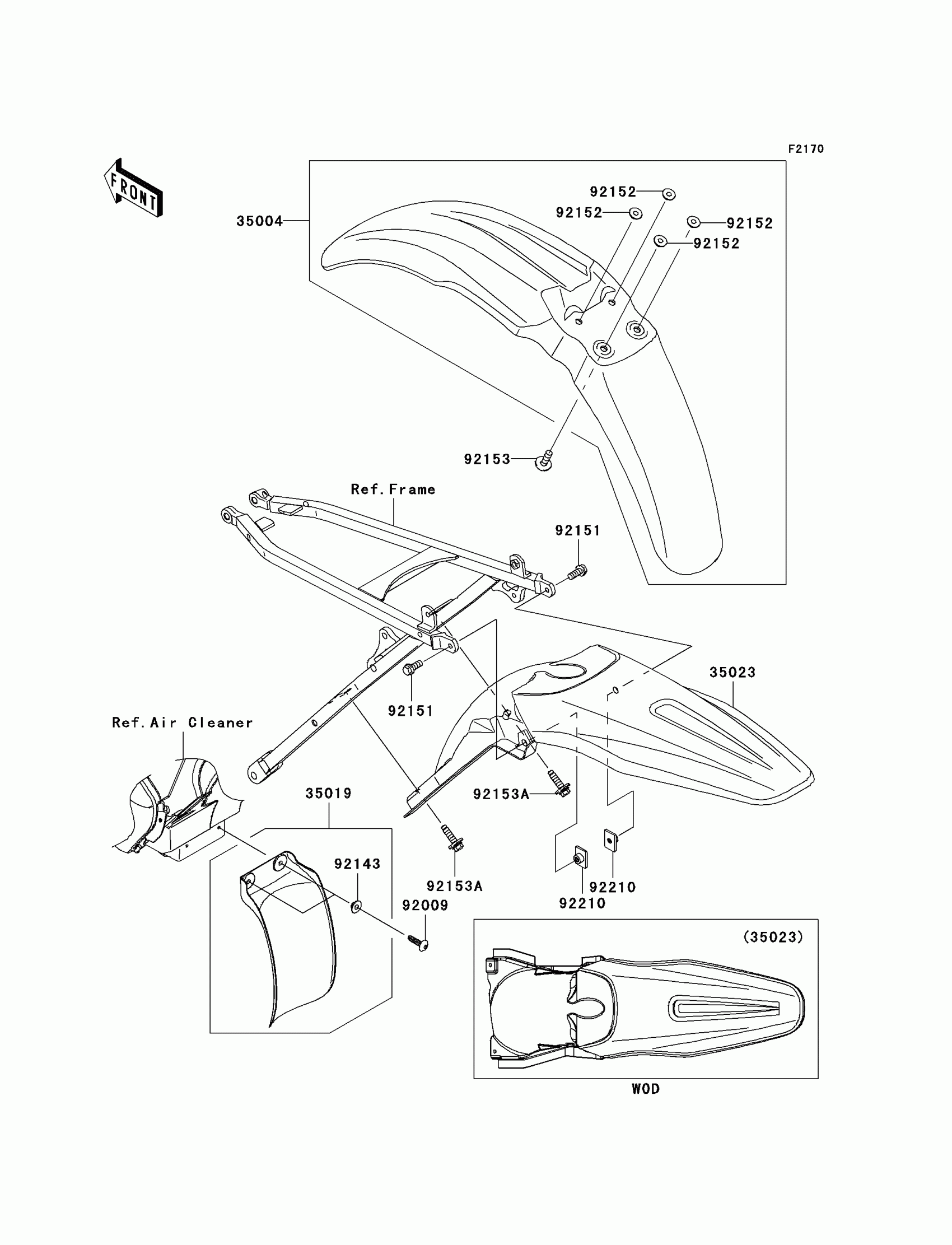

2008 Kawasaki KX™450F Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,L.GREEN

35004-0078-290

1
Out of stock

35019

FLAP,AIR FILTER

35019-0050

1
Out of stock

35023

FENDER-REAR,L.GREEN

35023-0100-290

1
Out of stock

92009

SCREW,TAPPING,5X20

92009-1993

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

92151

BOLT,6X14

92151-1423

1
Out of stock

92152

COLLAR

92152-1422

1
Out of stock

92153

BOLT,6X20

92153-0502

1
Out of stock

92153A

BOLT,FLANGED,6X23

92153-1852

1
Out of stock

92210

NUT,PLATE,6MM

92210-1352

1
Out of stock
