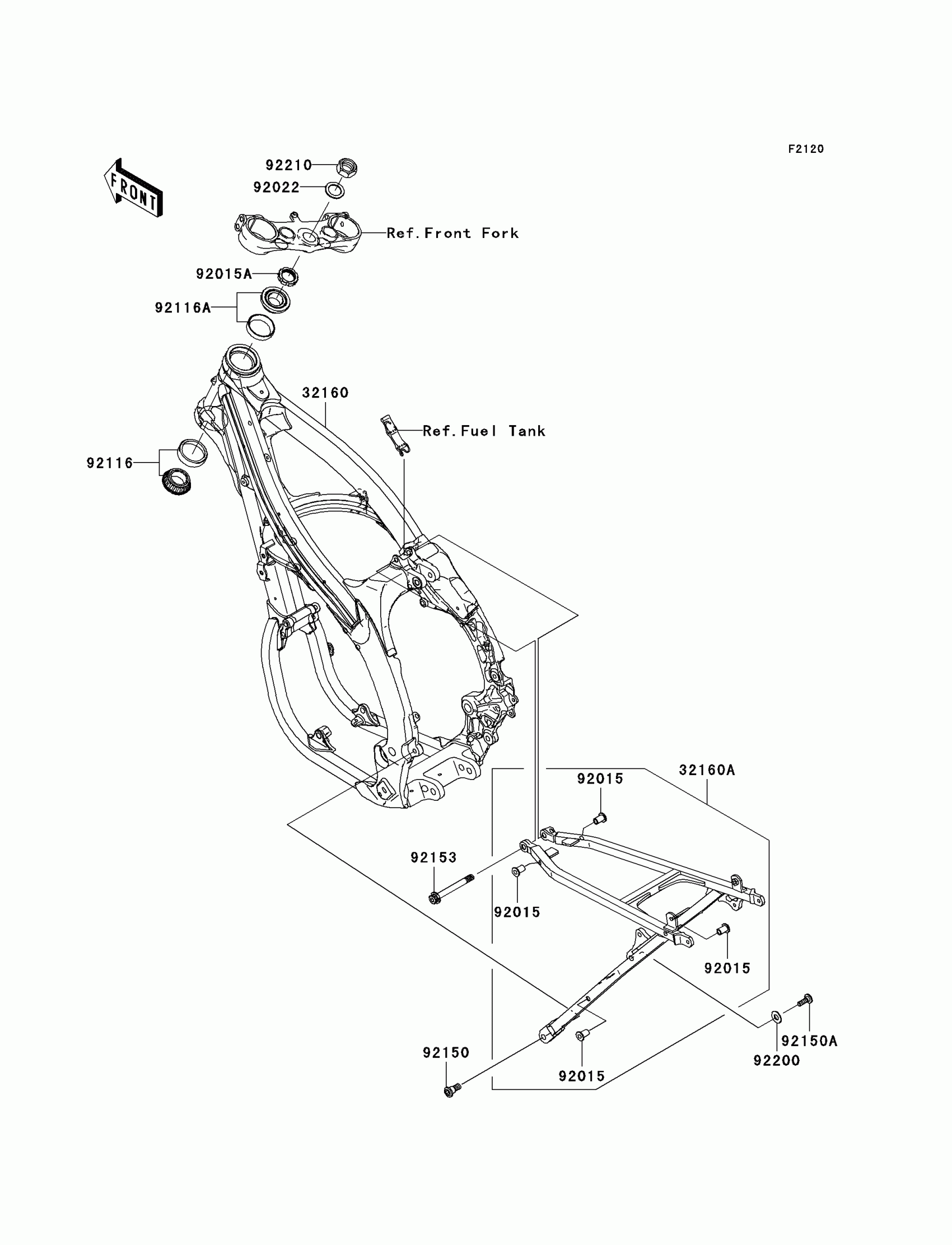

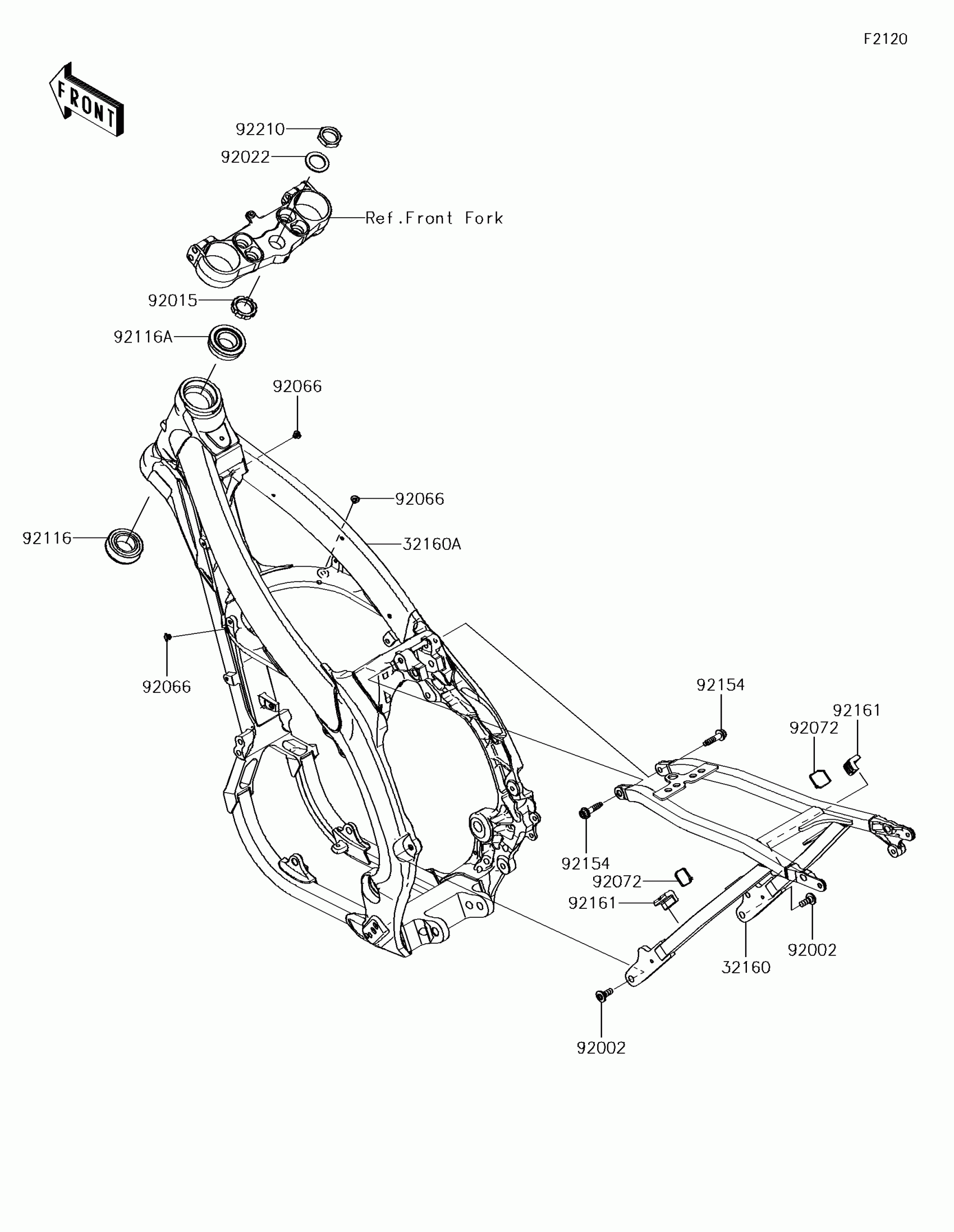

Kawasaki KX™450F Frame Diagram

Description

Price

32160

FRAME-COMP,FR

32160-0244

$2,529.29

32160A

FRAME-COMP,RR

32160-0298

$874.07

92015

NUT,POP,6MM,L=15

92015-1791

$3.57

92015A

NUT,STEERING STEM,28MM

92015-1861

$13.69

92022

WASHER,25X36X2.3

92022-250

$3.81

92116

BEARING-ROLLER,HI-CAP32006JRRS

92116-1069

$57.86

92116A

BEARING-ROLLER,HI-CAP320/28JRR

92116-1076

$45.62

92150

BOLT,SOCKET,8X20

92150-1760

$4.93

92150A

BOLT,8X25

92150-1845

$5.86

92153

BOLT,SOCKET,8X74

92153-1790

$4.95

92200

WASHER,10.5X24X1.5

92200-0154

$1.81

92210

NUT,24MM

92210-0066

$8.94
