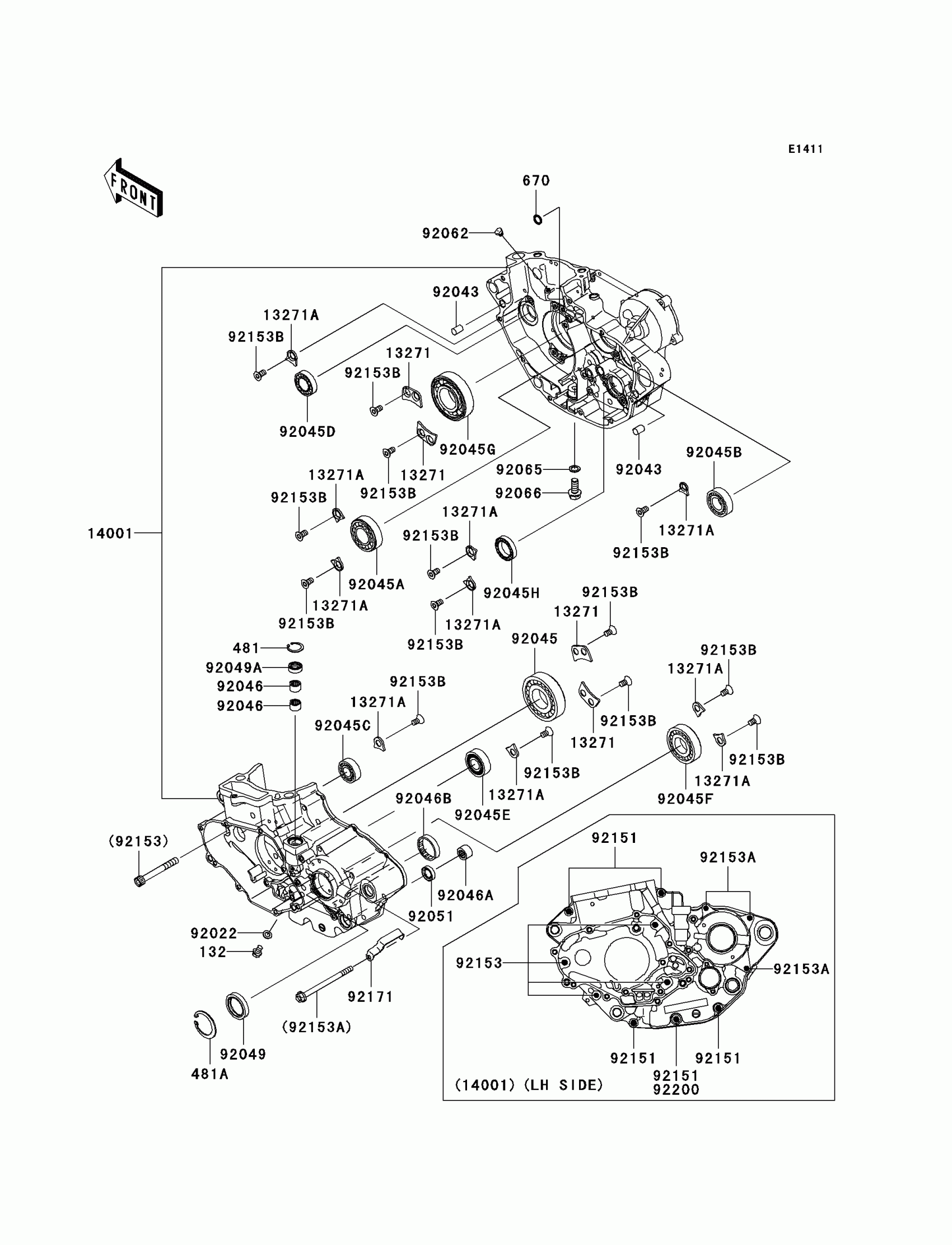

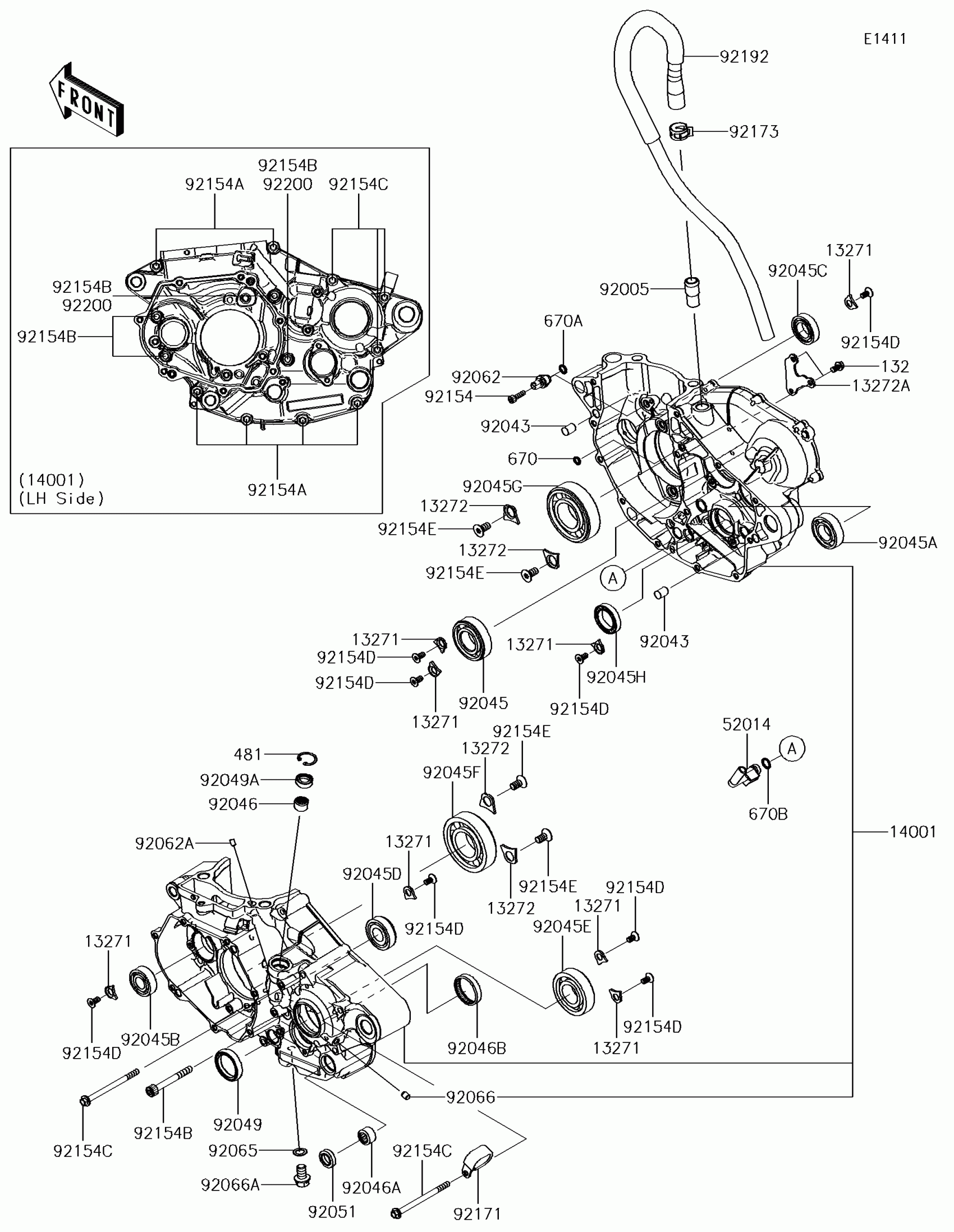

Kawasaki KX™450F Crankcase Diagram
#
132
BOLT-FLANGED-SMALL,6X10
132BA0610
$1.71
13271
PLATE
13271-0345
$5.33
13272
PLATE
13272-1941
$5.69
13272A
PLATE
13272-1942
$5.42
14001
SET-CRANKCASE
14001-0677
$662.33
481
CIRCLIP
481J2100
$1.34
52014
ELBOW
52014-0011
$9.17
670
O RING,7MM
670D1507
$1.70
92005
FITTING,BREATHER
92005-1238
$11.29
92043
PIN,10X14
92043-1506
$3.32
92045
BEARING-BALL,25X52X15
92045-0035
$28.88
92045A
BEARING-BALL,20X42X12
92045-0036
$21.08
92045B
BEARING-BALL,6202SH2C3
92045-0037
$14.01
92045C
BEARING-BALL,6904C3UR5
92045-0038
$23.92
92045D
BEARING-BALL,3TM-5X0391LUC3
92045-0057
$21.62
92045E
BEARING-BALL
92045-0062
$39.48
92045F
BEARING-BALL
92045-0132
$43.82
92045G
BEARING-BALL,32X72X19
92045-0806
$55.89
92045H
BEARING-BALL,6805JRZ
92045-1432
$32.41
92046
BEARING-NEEDLE,HK1210FM
92046-0034
$15.63
92046A
BEARING-NEEDLE,HK1312
92046-1148
$18.74
92046B
BEARING-NEEDLE,7E-HKS33X38X8
92046-1221
$32.47
92049
SEAL-OIL,TC 30 40 7
92049-0030
$19.94
92049A
SEAL-OIL,CLUTCH RELEASE
92049-1475
$4.18
92051
SEAL-OIL,TB13225.5
92051-005
$7.74
92062
NOZZLE
92062-0035
$21.44
92062A
NOZZLE,6X8,SILVER
92062-1081
$6.47
92065
GASKET,10.5X16X1
92065-058
$3.96
92066
PLUG,OIL LINE,7.2X8
92066-1012
$6.51
92066A
PLUG,DRAIN
92066-1437
$6.51
92154
BOLT,SOCKET,5X18
92154-0038
$1.74
92154A
BOLT,FLANGED,6X50
92154-0526
$3.35
92154B
BOLT,SOCKET,7X60
92154-0527
$11.16
92154C
BOLT,FLANGED,6X85
92154-0528
$3.65
92154D
BOLT,TORX
92154-1621
$3.90
92154E
BOLT,TORX,8X16
92154-1733
$3.63
92171
CLAMP
92171-0594
$7.68
92173
CLAMP
92173-1463
$1.97
92192
TUBE,BREATHER
92192-1472
$30.64
92200
WASHER,7.3X13.5X1
92200-1743
$2.00
670A
O RING,8MM
670D1508
$4.31
670B
O RING,10MM
670D1510
$4.69
