Description

Price

13087

HUB-CLUTCH

13087-0015

$119.28

13088

PLATE-FRICTION

13088-0586

$25.48

13088A

PLATE-FRICTION

13088-0587

$25.48

13089

PLATE-CLUTCH,T=2.0

13089-1005

Unavailable

13089A

PLATE-CLUTCH,T=1.2

13089-1010

Unavailable

13089B

PLATE-CLUTCH,T=1.6

13089-1095

$12.80

13095

HOUSING-COMP-CLUTCH

13095-0122

$371.77

13102

RELEASE-COMP-CLUTCH

13102-0048

$52.77

13116

ROD-PUSH

13116-0728

$67.27

13187

PLATE-CLUTCH OPERATING

13187-0018

$65.54

13280

HOLDER

13280-0876

$41.27

92015

NUT,20MM

92015-1725

$18.89

92022

WASHER,20.3X36X3.7

92022-1868

$9.51

92046

BEARING-NEEDLE,FNTA-1326

92046-1190

$11.33

92145

SPRING,CLUTCH

92145-0862

$9.34

92153

BOLT,WP,6X35

92153-1876

$2.61

92200

WASHER,13.4X25X1.0

92200-0045

Unavailable

92200A

WASHER,25X41X5.5

92200-0245

$10.30

92200B

WASHER,13.4X25.0X1.5

92200-1548

$3.92

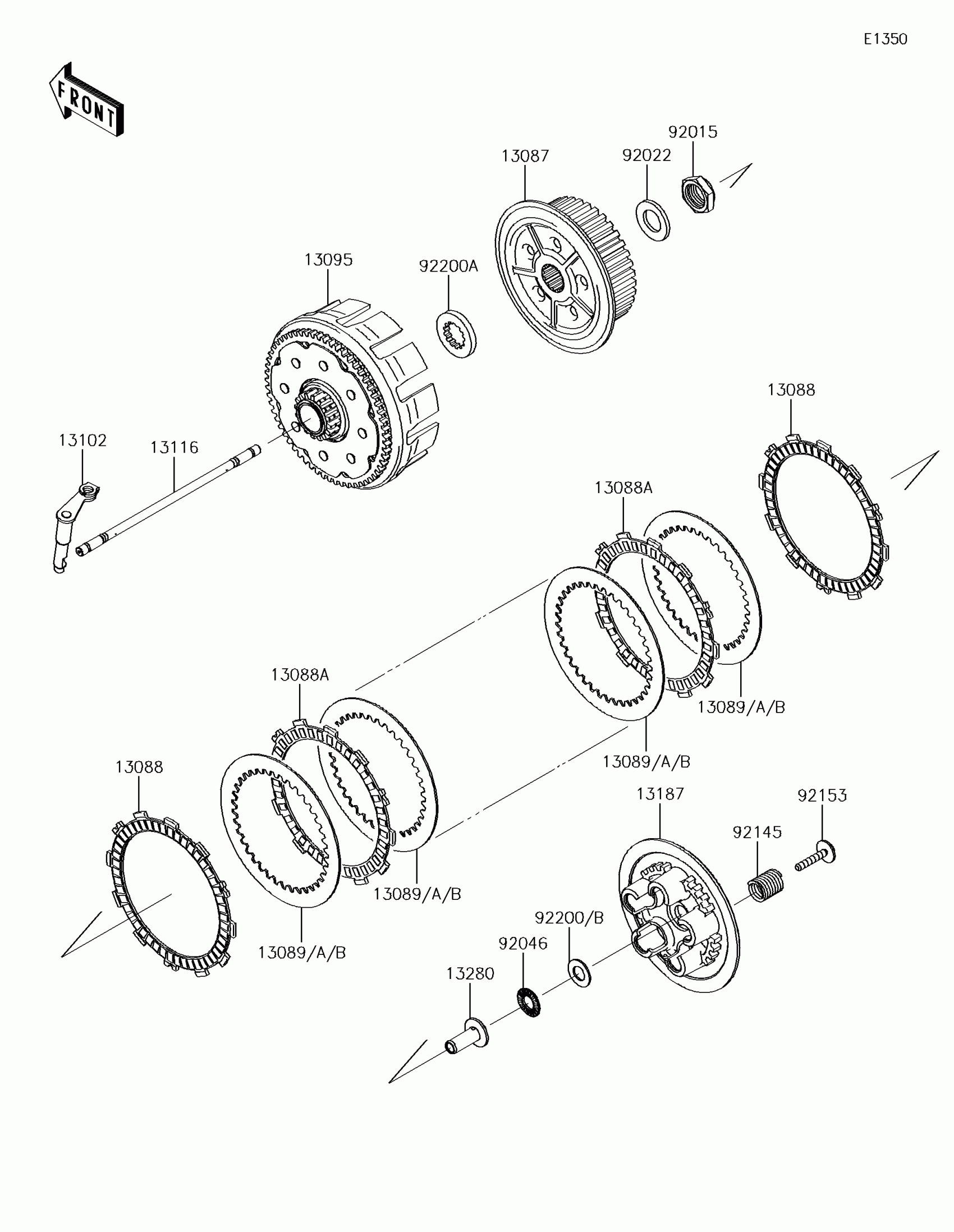

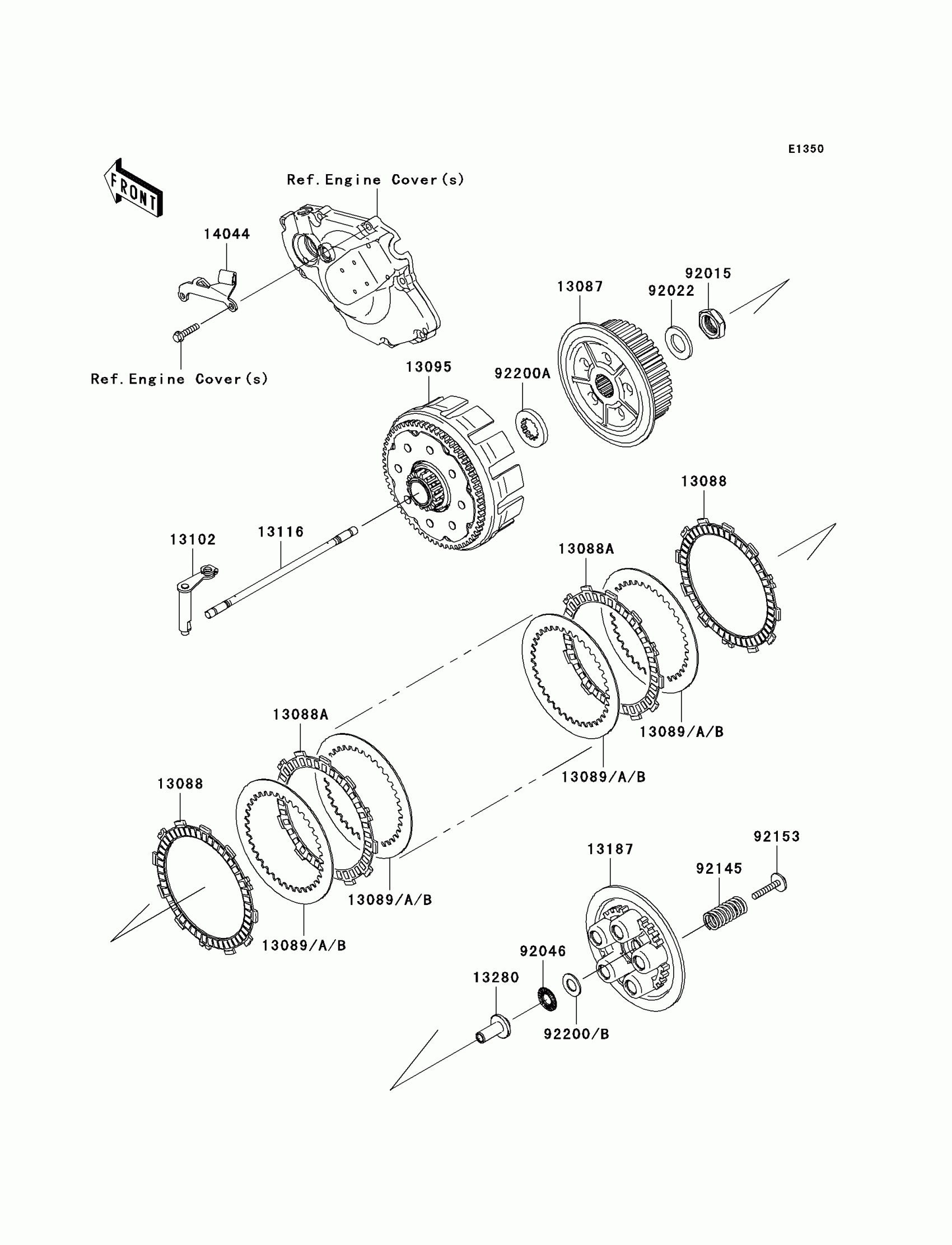

Kawasaki KX™450F Clutch Diagram

HUB-CLUTCH

PLATE-FRICTION

PLATE-FRICTION

PLATE-CLUTCH,T=2.0

PLATE-CLUTCH,T=1.2

PLATE-CLUTCH,T=1.6

HOUSING-COMP-CLUTCH

RELEASE-COMP-CLUTCH

ROD-PUSH

PLATE-CLUTCH OPERATING

HOLDER

NUT,20MM

WASHER,20.3X36X3.7

BEARING-NEEDLE,FNTA-1326

SPRING,CLUTCH

BOLT,WP,6X35

WASHER,13.4X25X1.0

WASHER,25X41X5.5

WASHER,13.4X25.0X1.5
