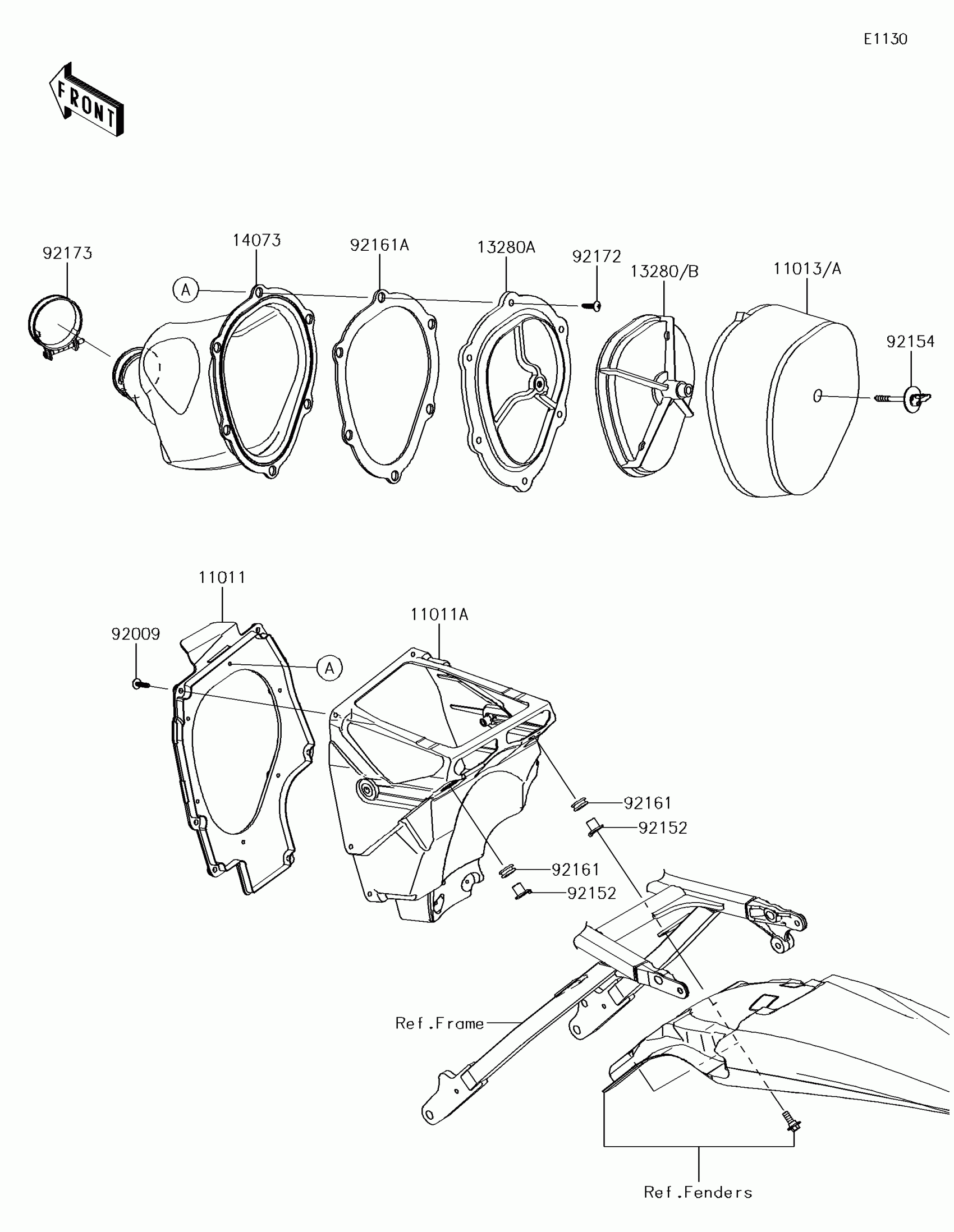

Kawasaki KX™450F Air Cleaner Diagram

Description

Price

11011

CASE-AIR FILTER,FR

11011-0850

$60.57

11011A

CASE-AIR FILTER,RR

11011-0851

$134.14

11013A

ELEMENT-AIR FILTER

11013-0766

$55.04

13280A

HOLDER,ELEMENT BASE

13280-0836

$48.44

13280B

HOLDER,ELEMENT

13280-0893

$63.71

14073

DUCT,AIR FILTER

14073-0856

$85.09

92009

SCREW,TAPPING,5X20

92009-1993

$1.03

92152

COLLAR

92152-2126

$11.10

92154

BOLT,6X58

92154-1731

$9.30

92161

DAMPER

92161-0266

$1.78

92161A

DAMPER

92161-1776

$26.07

92172

SCREW,TAPPING,5X20

92172-0382

$2.55

92173

CLAMP,57.5MM

92173-1608

$15.78
