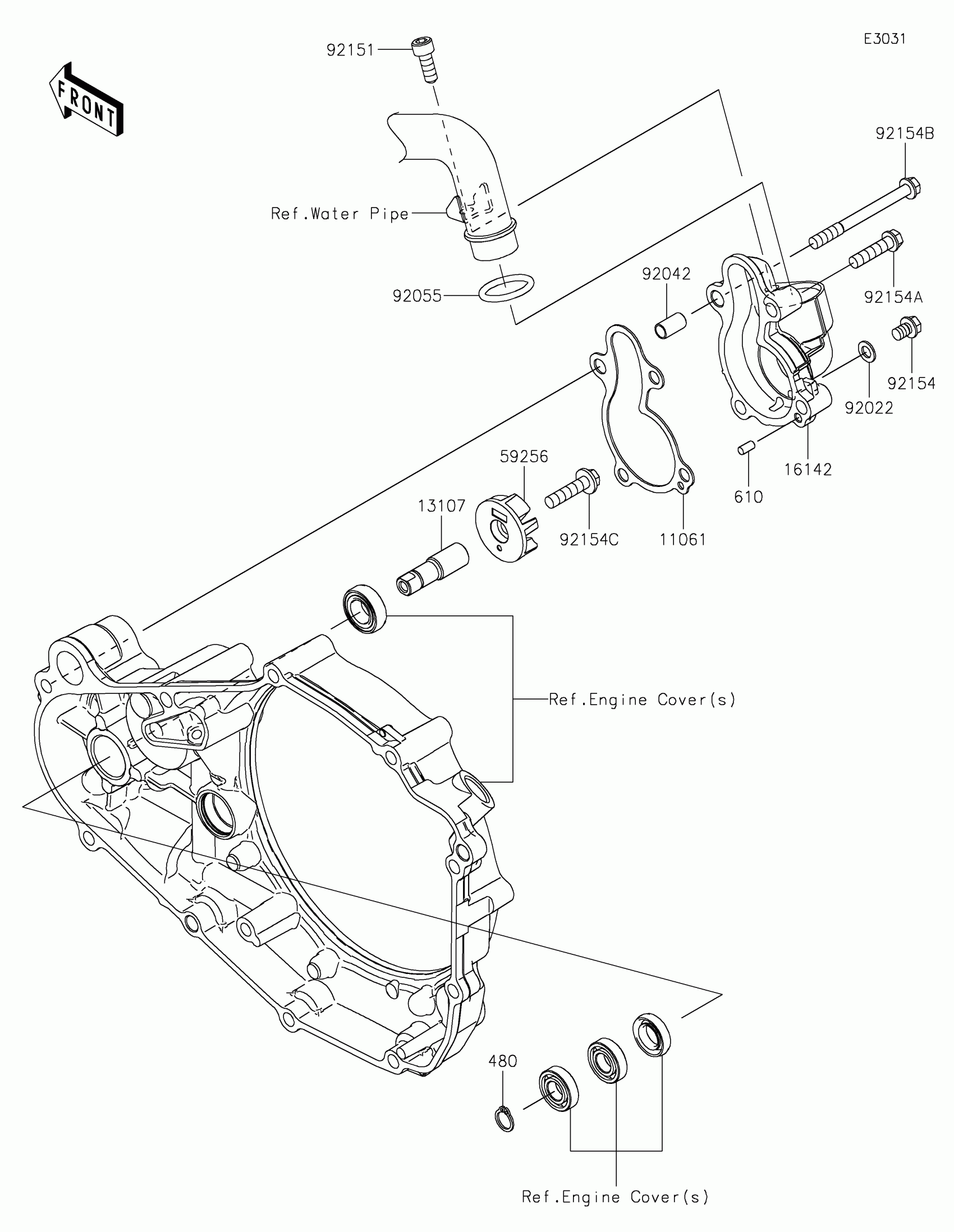

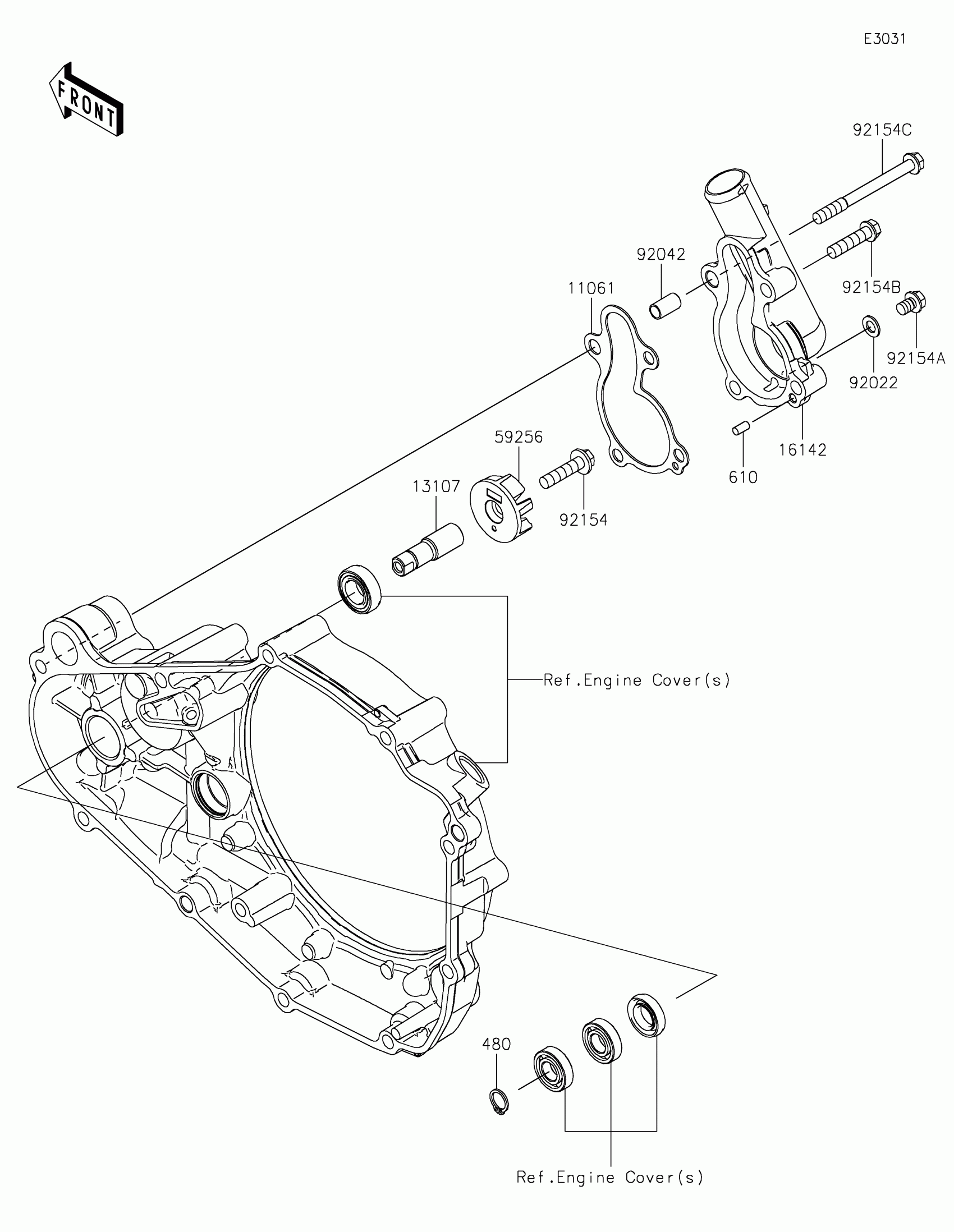

Kawasaki KX™450 Water Pump Diagram

Description

Price

11061

GASKET

11061-1275

$5.62

13107

SHAFT

13107-0872

$55.64

16142

COVER-PUMP

16142-0778

$86.78

59256

IMPELLER

59256-0003

$46.35

92022

WASHER,6.2X11X1

92022-304

$3.65

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92055

RING-O,21.6X3.1

92055-0949

$3.73

92151

BOLT

92151-1166

$2.26

92154

BOLT,FLANGED,6X8

92154-2962

$0.64

92154A

BOLT,FLANGED,6X25

92154-2967

$0.90

92154B

BOLT,FLANGED,6X65

92154-2980

$1.42

92154C

BOLT,FLANGED,6X25

92154-7331

$1.12

480

CIRCLIP-TYPE-C,10MM

480J1000

$0.65

610

ROLLER,4X8

610A0408

$4.31
