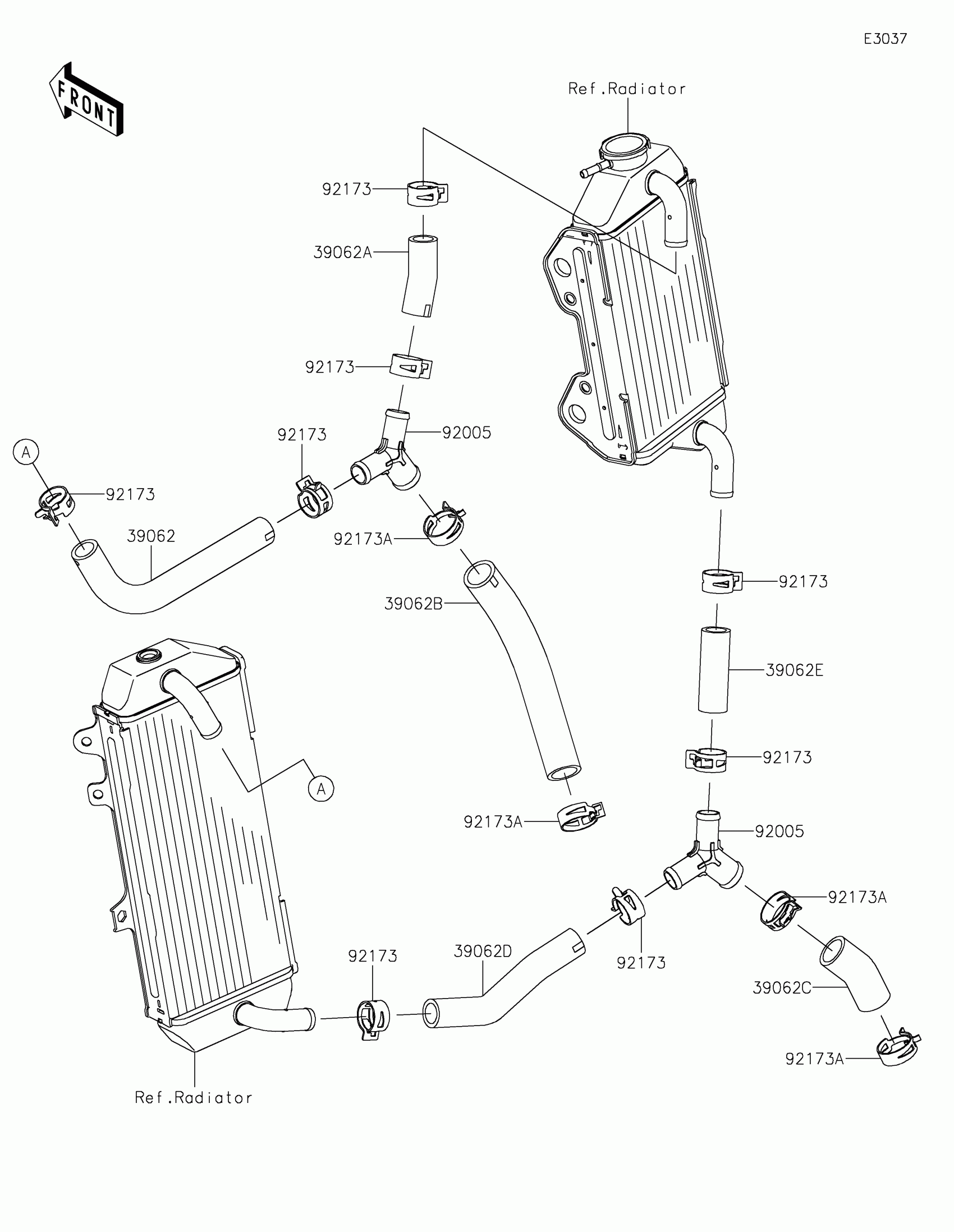

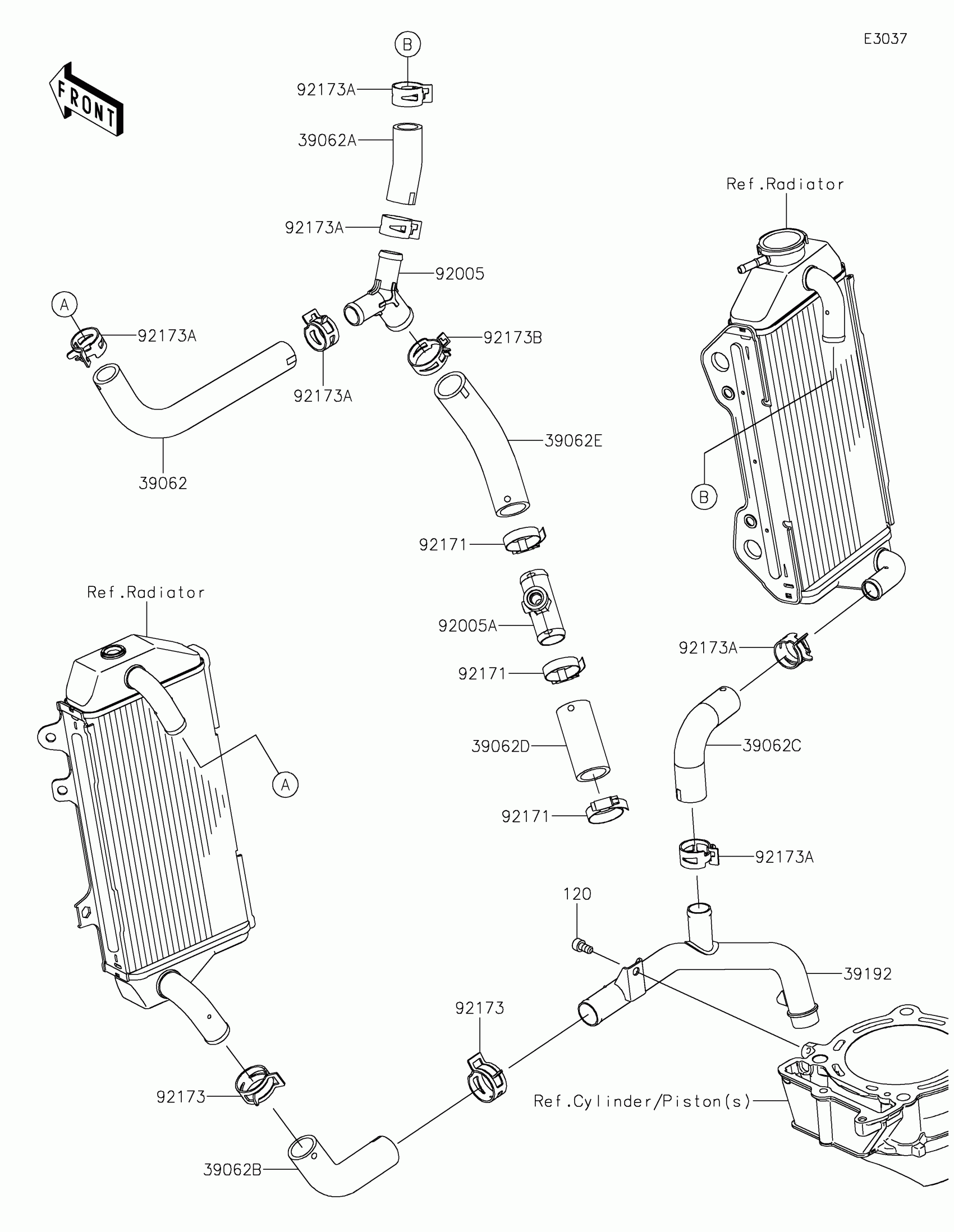

Kawasaki KX™450 Water Pipe Diagram

Description

Price

39062

HOSE-COOLING,RAD.LH UPP-FIT.

39062-0707

$17.74

39062A

HOSE-COOLING,RAD.RH UPP-FIT.

39062-0933

$7.76

39062B

HOSE-COOLING,RAD.LH LWR-FIT.

39062-1939

$13.09

39062C

HOSE-COOLING,RAD.RH LWR-FIT.

39062-1940

$16.32

39062D

HOSE-COOLING,CYL.HEAD-RAD

39062-1942

$9.53

39062E

HOSE-COOLING,CYL.HEAD-RAD

39062-1943

$15.91

39192

PIPE-WATER

39192-0724

$56.79

92005

FITTING,3WAY

92005-0902

$17.40

92005A

FITTING,WATER TEMP SENSOR

92005-1463

$56.35

92171

CLAMP

92171-0179

$8.20

92173

CLAMP

92173-1416

$3.56

92173A

CLAMP

92173-1417

$2.75

92173B

CLAMP

92173-1464

$2.75

120

BOLT-SOCKET,6X12

120CB0612

$2.49
