Description

Price

14093

COVER,THROTTLE DUST

14093-0431

$26.89

16016

PLUNGER

16016-0026

$44.41

16073

INSULATOR

16073-0129

$6.00

16163

THROTTLE-ASSY

16163-0936

$716.58

21176

SENSOR,PRESSURE

21176-0111

$222.28

21176A

SENSOR,THROTTLE POSITION

21176-0893

$188.97

32155

PIPE

32155-3835

$116.00

35063

STAY

35063-1471

$7.37

49033

NOZZLE-INJECTION

49033-0561

$132.64

59071

JOINT

59071-0760

$31.89

92009

SCREW,THROTTLE SENSOR

92009-1981

$2.41

92055

RING-O

92055-0064

$7.65

92055A

RING-O,INJECTION NOZZLE

92055-0124

$2.97

92055B

RING-O

92055-1671

$3.73

92154

BOLT

92154-0133

$7.24

92161

DAMPER

92161-0673

$5.54

92172

SCREW,PIPE INJECTION

92172-0064

$2.80

92172A

SCREW

92172-0393

$7.60

92172B

SCREW

92172-0776

$5.33

92192

TUBE

92192-1642

$9.58

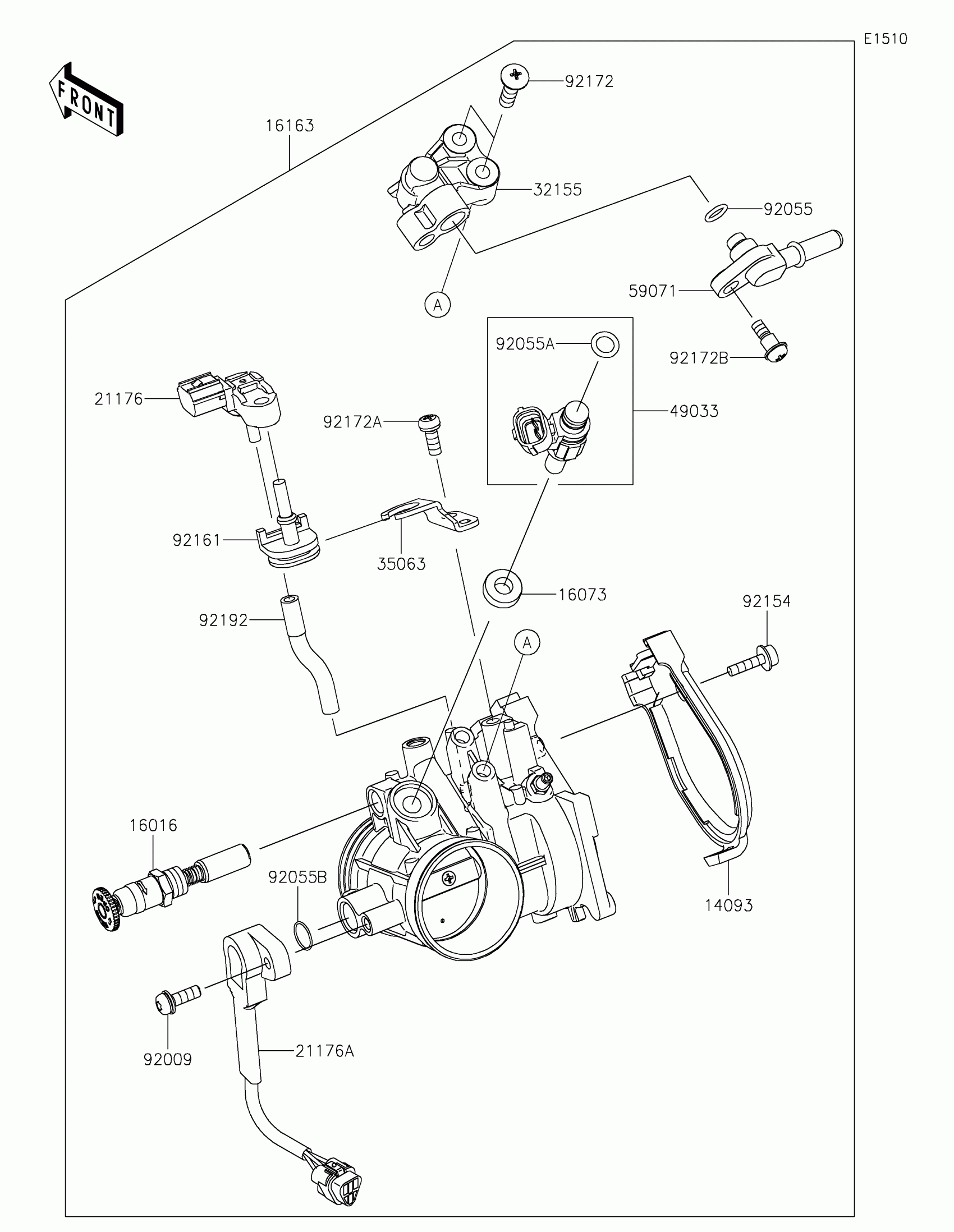

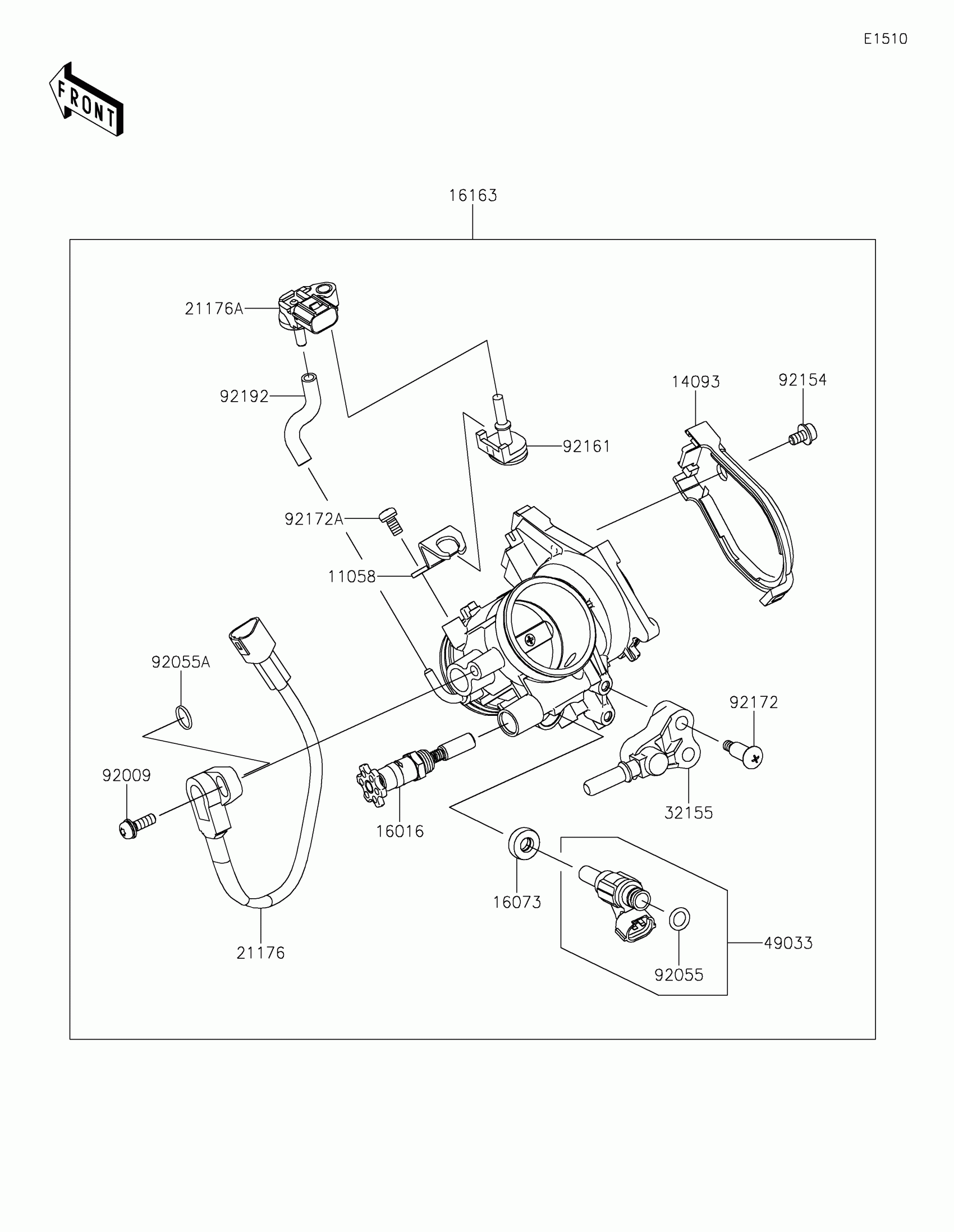

Kawasaki KX™450 Throttle Diagram

COVER,THROTTLE DUST

PLUNGER

INSULATOR

THROTTLE-ASSY

SENSOR,PRESSURE

SENSOR,THROTTLE POSITION

PIPE

STAY

NOZZLE-INJECTION

JOINT

SCREW,THROTTLE SENSOR

RING-O

RING-O,INJECTION NOZZLE

RING-O

BOLT

DAMPER

SCREW,PIPE INJECTION

SCREW

SCREW

TUBE
