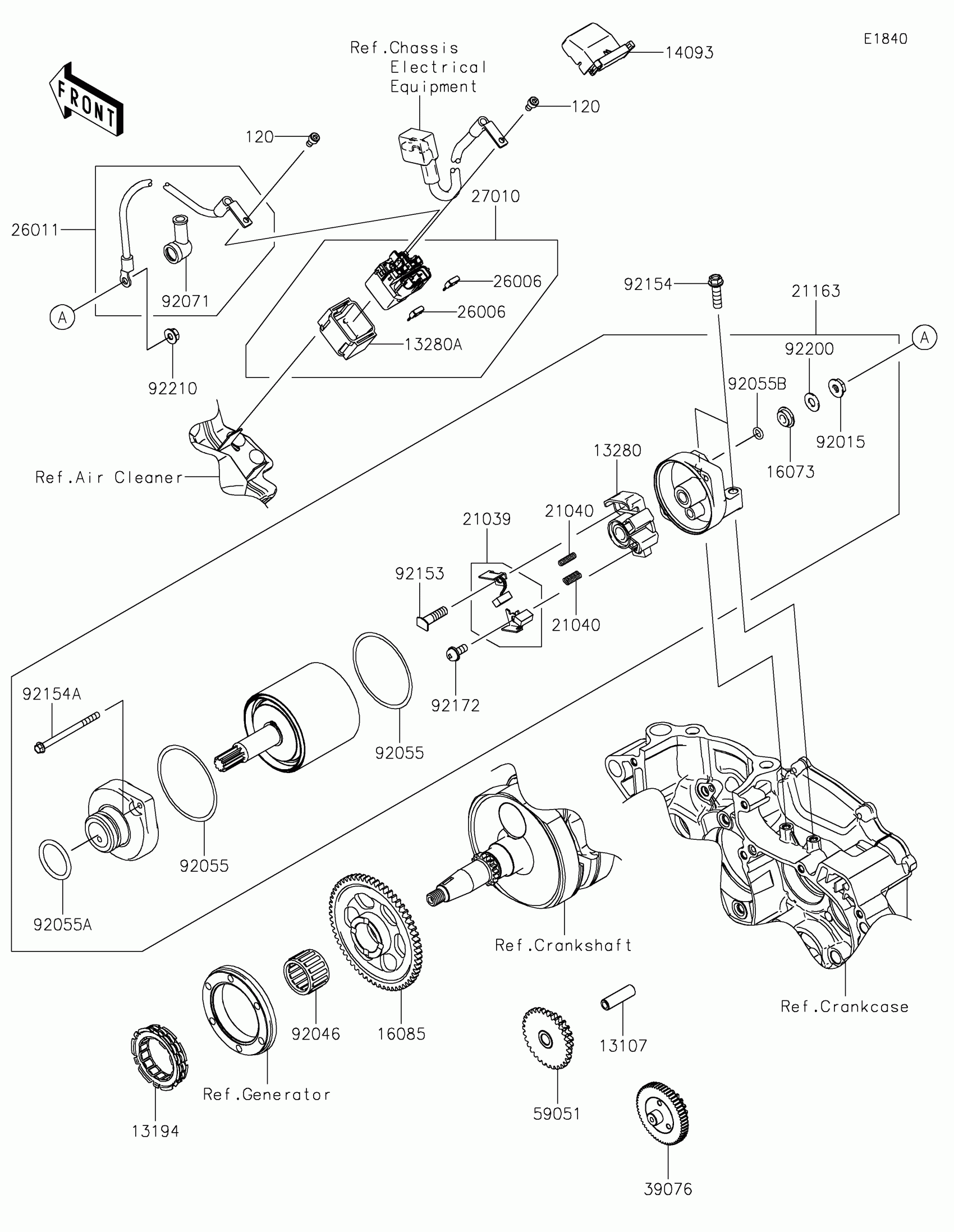

Kawasaki KX™450 Starter Motor Diagram
#
Description
Price
13107
SHAFT,IDLER
13107-0871
$8.98
13194
CLUTCH-ONEWAY
13194-1096
$106.12
13280
HOLDER
13280-0261
$16.72
13280A
HOLDER,MAGNETIC SWITCH
13280-0814
$11.88
14093
COVER,MAGNETIC SWITCH
14093-0716
$9.50
16073
INSULATOR
16073-0053
$11.93
16085
GEAR,60T
16085-0736
$158.59
21039
BRUSH,CARBON SET
21039-0005
$68.25
21040
SPRING-BRUSH
21040-0003
$9.79
21163
STARTER-ELECTRIC
21163-0771
$622.91
26006
FUSE,10A
26006-0033
$6.12
26011
WIRE-LEAD
26011-2438
$56.12
27010
SWITCH,MAGNETIC
27010-0879
$108.75
39076
LIMITER
39076-0037
$199.98
59051
GEAR-SPUR,IDLER
59051-0809
$112.64
92015
NUT,STARTER MOTOR
92015-1476
$4.31
92046
BEARING-NEEDLE,22X28X16
92046-0647
$22.83
92055
RING-O
92055-0136
$7.75
92055A
RING-O
92055-1276
$9.91
92055B
RING-O,4.5X2.0
92055-1370
$4.69
92071
GROMMET
92071-0024
$10.21
92153
BOLT
92153-1866
$4.65
92154
BOLT,FLANGED,6X20
92154-2966
$0.64
92154A
BOLT
92154-3958
$6.38
92172
SCREW
92172-0334
$4.65
92200
WASHER
92200-0386
$4.65
92210
NUT,6MM
92210-0188
$2.15
120
BOLT-SOCKET,5X10
120CB0510
$1.64
