Description

Price

39007

ARM-SUSP

39007-0510

$267.17

39111

ROD-TIE

39111-0403

$157.20

42036

SLEEVE,SUSPENSION ARM,L=49

42036-0021

$13.60

42036A

SLEEVE,SUSPENSION ARM,L=37

42036-0022

$11.93

42036B

SLEEVE,10X16X19.3

42036-0030

$11.93

42036C

SLEEVE,12X20X87.8

42036-0898

$29.26

42036D

SLEEVE

42036-1351

$11.28

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92046

BEARING-NEEDLE,F-2016

92046-1151

$19.48

92046A

BEARING-NEEDLE,16BM2212

92046-1192

$18.21

92049

SEAL-OIL,SDO26X32X4

92049-0063

$12.98

92049A

SEAL-OIL

92049-0069

$12.29

92093

SEAL

92093-1436

$7.26

92152

COLLAR

92152-1139

$8.86

92152A

COLLAR,12X26X4.8

92152-2454

$21.59

92154

BOLT,10X45

92154-0512

Unavailable

92154A

BOLT,10X58

92154-0513

Unavailable

92154B

BOLT,12X86.5

92154-2959

$57.67

92154C

BOLT,12X92.5

92154-2960

$58.44

92154D

BOLT,TIE ROD

92154-7101

$51.49

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

92210A

NUT,LOCK,10MM

92210-1184

$6.11

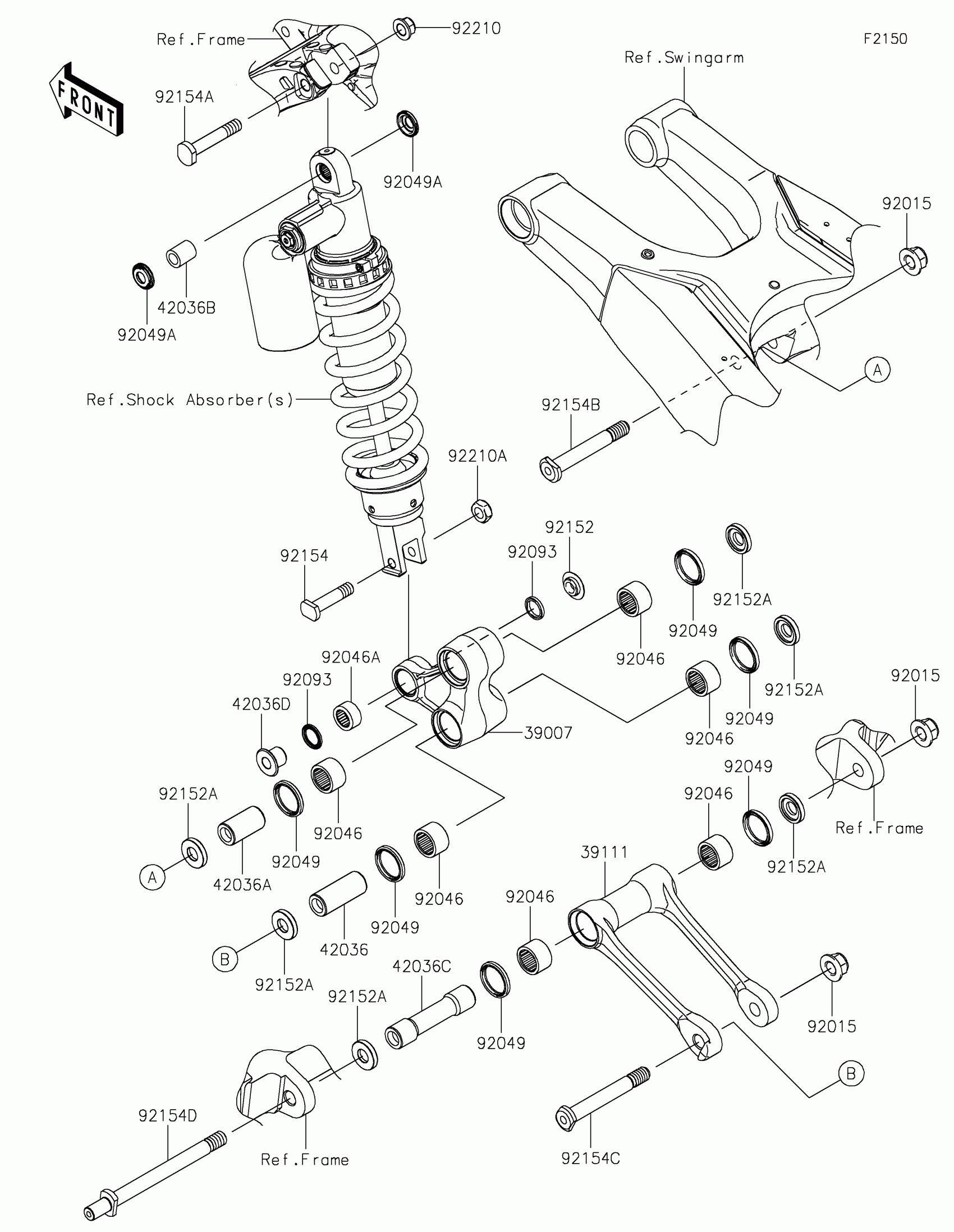

Kawasaki KX™450 Rear Suspension Diagram
