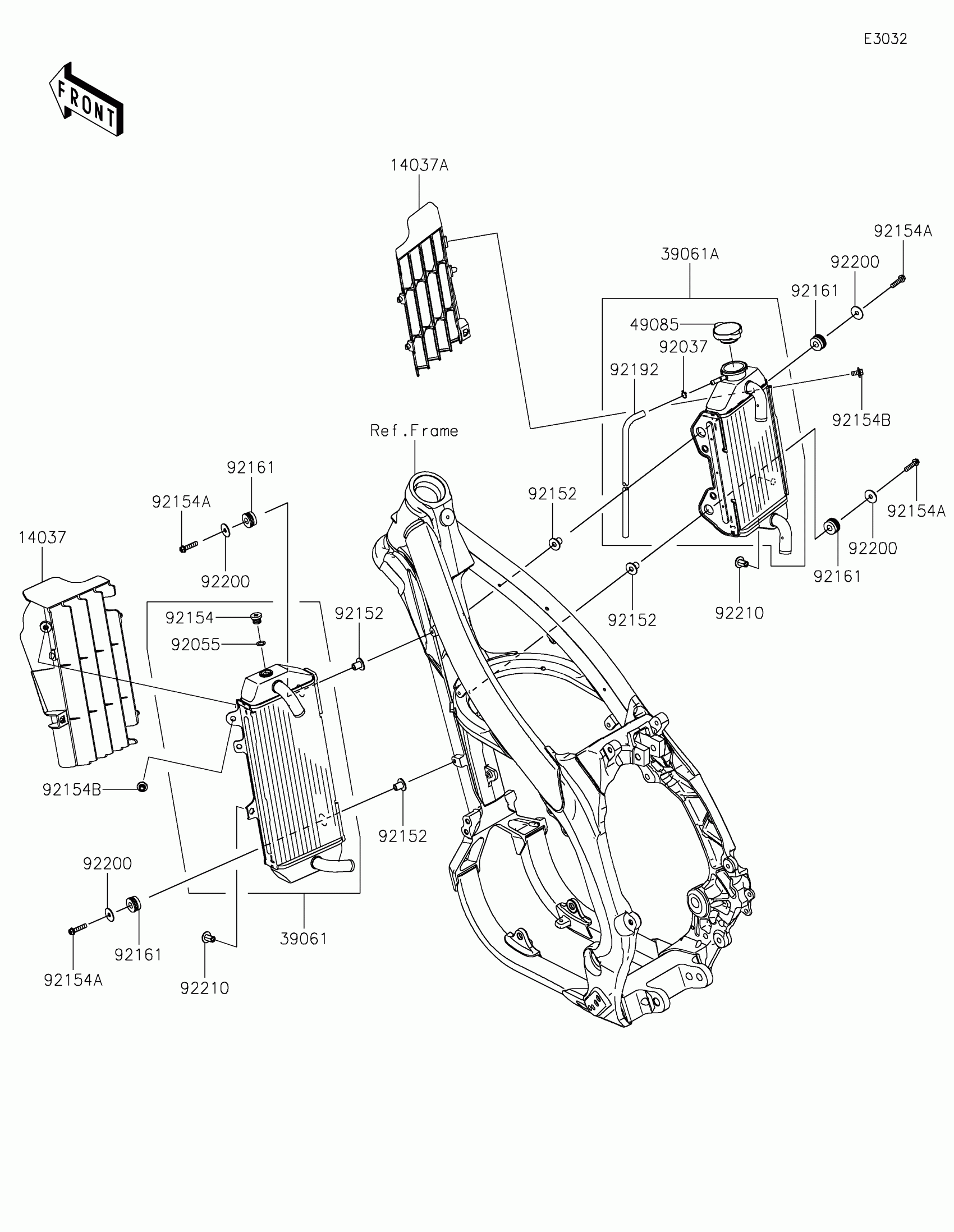

Kawasaki KX™450 Radiator Diagram

Description

Price

14037

SCREEN,LH,EBONY

14037-0849-6C

$28.76

14037A

SCREEN,RH,EBONY

14037-0850-6C

$28.76

39061

RADIATOR-ASSY,LH

39061-0875

$386.25

39061A

RADIATOR-ASSY,RH

39061-0876

$413.15

49085

CAP-ASSY-PRESSURE

49085-0006

$50.52

92037

CLAMP

92037-1610

$2.00

92055

RING-O

92055-0866

$5.67

92152

COLLAR

92152-0666

$6.75

92154

BOLT,AIR VENT

92154-1738

$3.02

92154A

BOLT,FLANGED,6X25

92154-2967

$0.90

92154B

BOLT,FLANGED,6X12

92154-2970

$0.90

92161

DAMPER

92161-1950

$4.85

92192

TUBE,L=830

92192-1490

$11.14

92200

WASHER,6.5X22X1.2

92200-2108

$1.92

92210

NUT

92210-1452

$3.29
