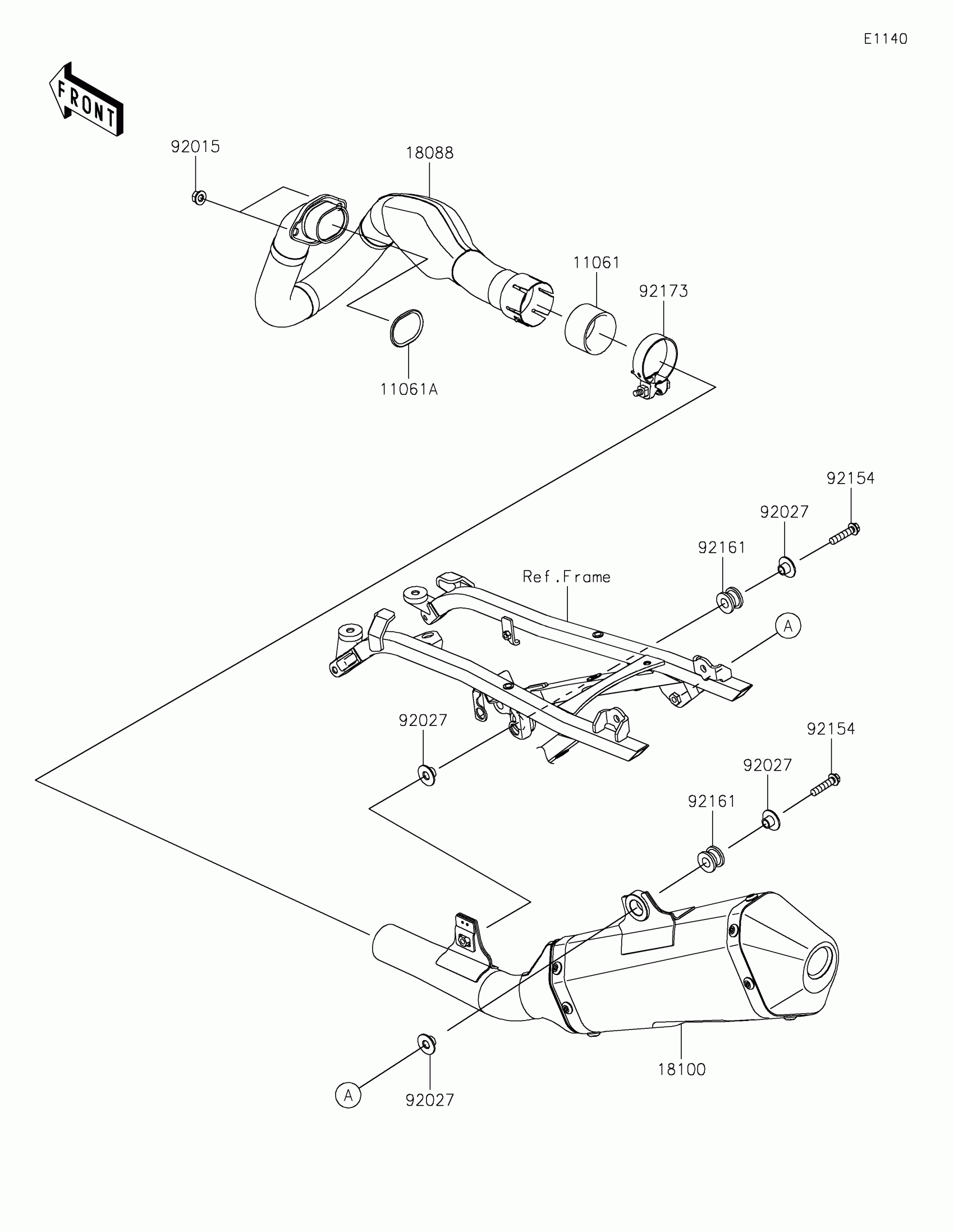

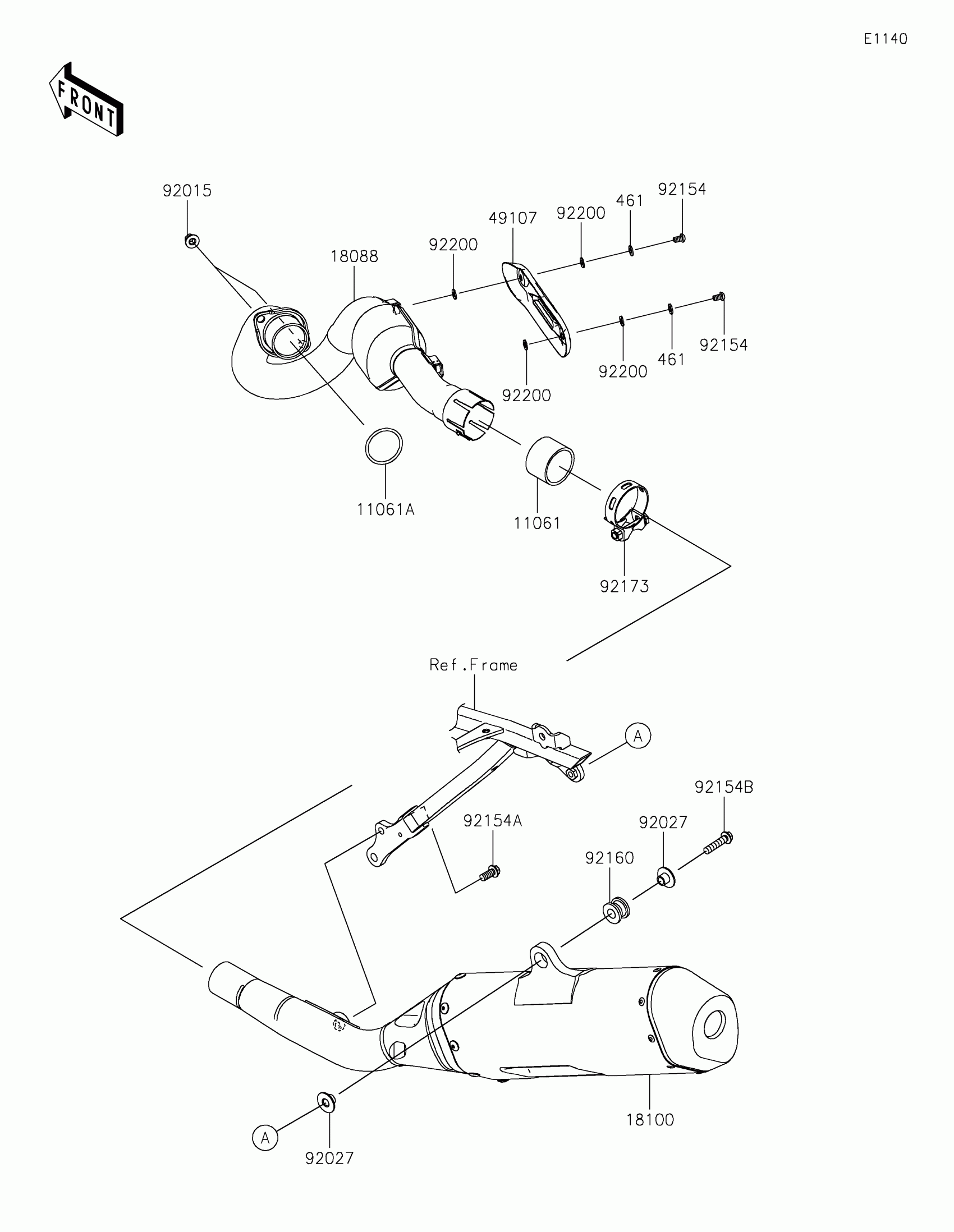

Kawasaki KX™450 Muffler(s) Diagram

Description

Price

11061

GASKET,CONNECTING

11061-1278

$22.17

11061A

GASKET,40X46.4X3

11061-1297

$7.60

18088

PIPE-EXHAUST

18088-1401

$383.05

18100

BODY-ASSY-MUFFLER

18100-0601

$940.85

49107

COVER-EXHAUST PIPE

49107-0812

$59.74

92015

NUT,8MM

92015-1402

$4.69

92027

COLLAR,FLANGED,8.8X10.6

92027-1653

$10.28

92154

BOLT,TORX,6X10

92154-1938

$1.19

92154A

BOLT,FLANGED,8X18

92154-2984

$1.17

92154B

BOLT,FLANGED,8X35

92154-2985

$1.42

92160

DAMPER,MUFFLER MOUNT

92160-1116

$5.52

92173

CLAMP

92173-1859

$20.77

92200

WASHER,5.9X12X1.2

92200-1826

$4.96

461

WASHER-SPRING,6MM

461S0600

$1.07
