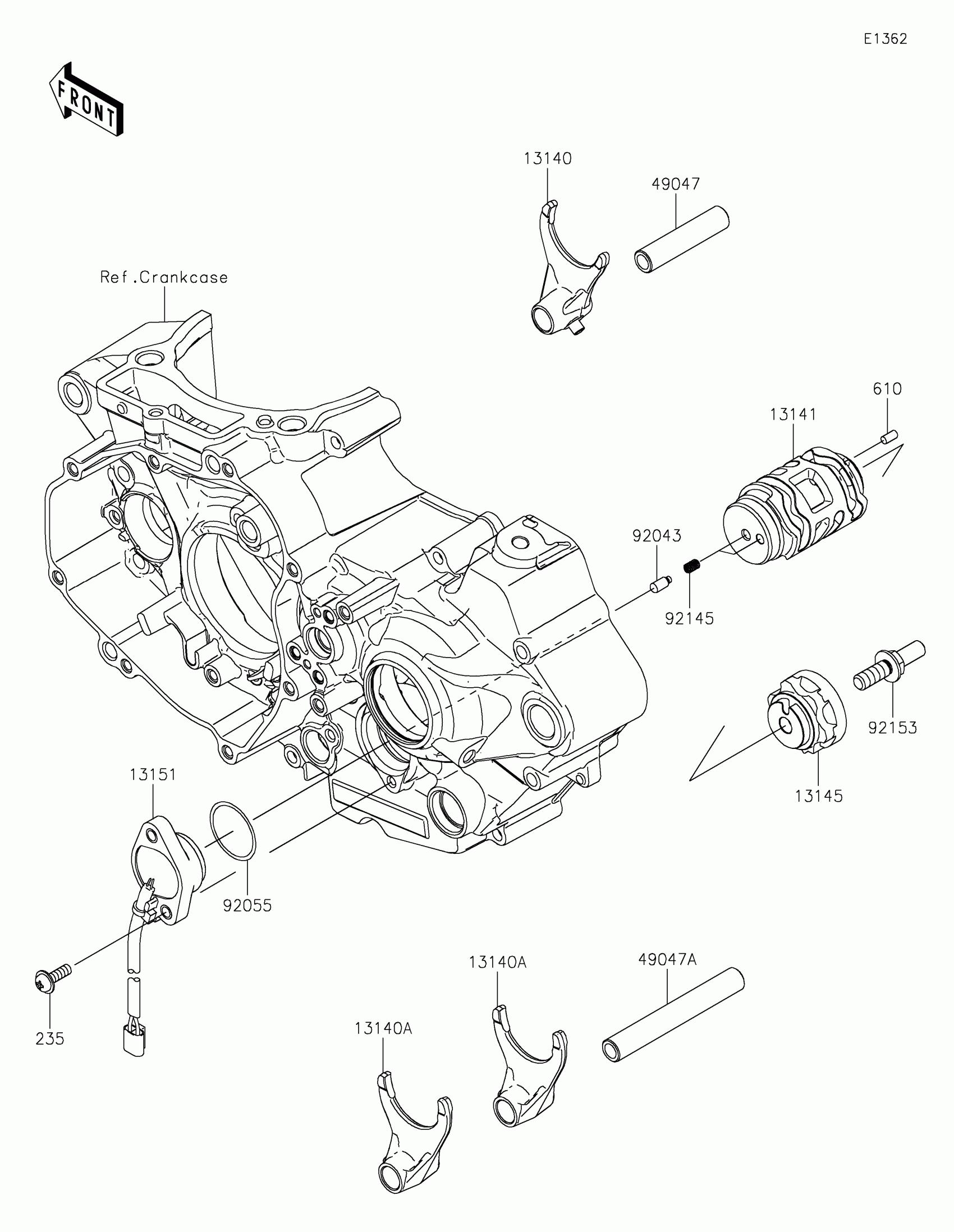

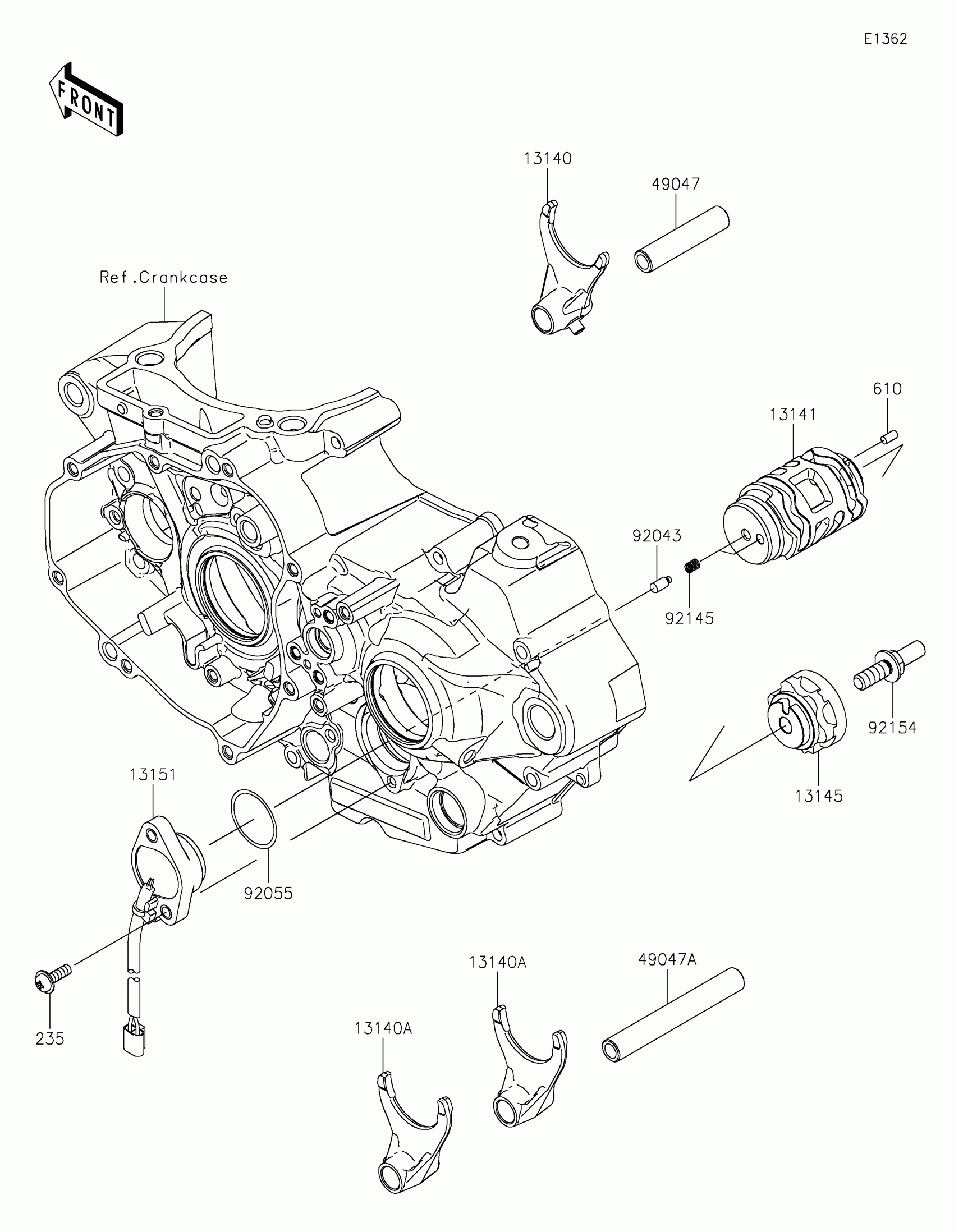

Kawasaki KX™450 Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13140

FORK-SHIFT,INPUT

13140-0647

$94.33

13140A

FORK-SHIFT,OUTPUT

13140-0672

$94.33

13141

DRUM-CHANGE

13141-0600

$112.58

13145

CAM-CHANGE DRUM

13145-0563

$67.01

13151

SWITCH-COMP,GEAR POSITION

13151-0581

$88.52

49047

ROD-SHIFT,INPUT

49047-0628

$16.72

49047A

ROD-SHIFT,OUTPUT

49047-0629

$23.29

92043

92043-1654

$3.74

92055

RING-O,27.7X2.4

92055-091

$6.22

92145

SPRING

92145-1414

$4.14

92153

BOLT,8X20

92153-0530

$6.18

235

SCREW-PAN-WP-CROS,5X16

235AB0516

$1.22

610

ROLLER,4X8

610A0408

$4.31
