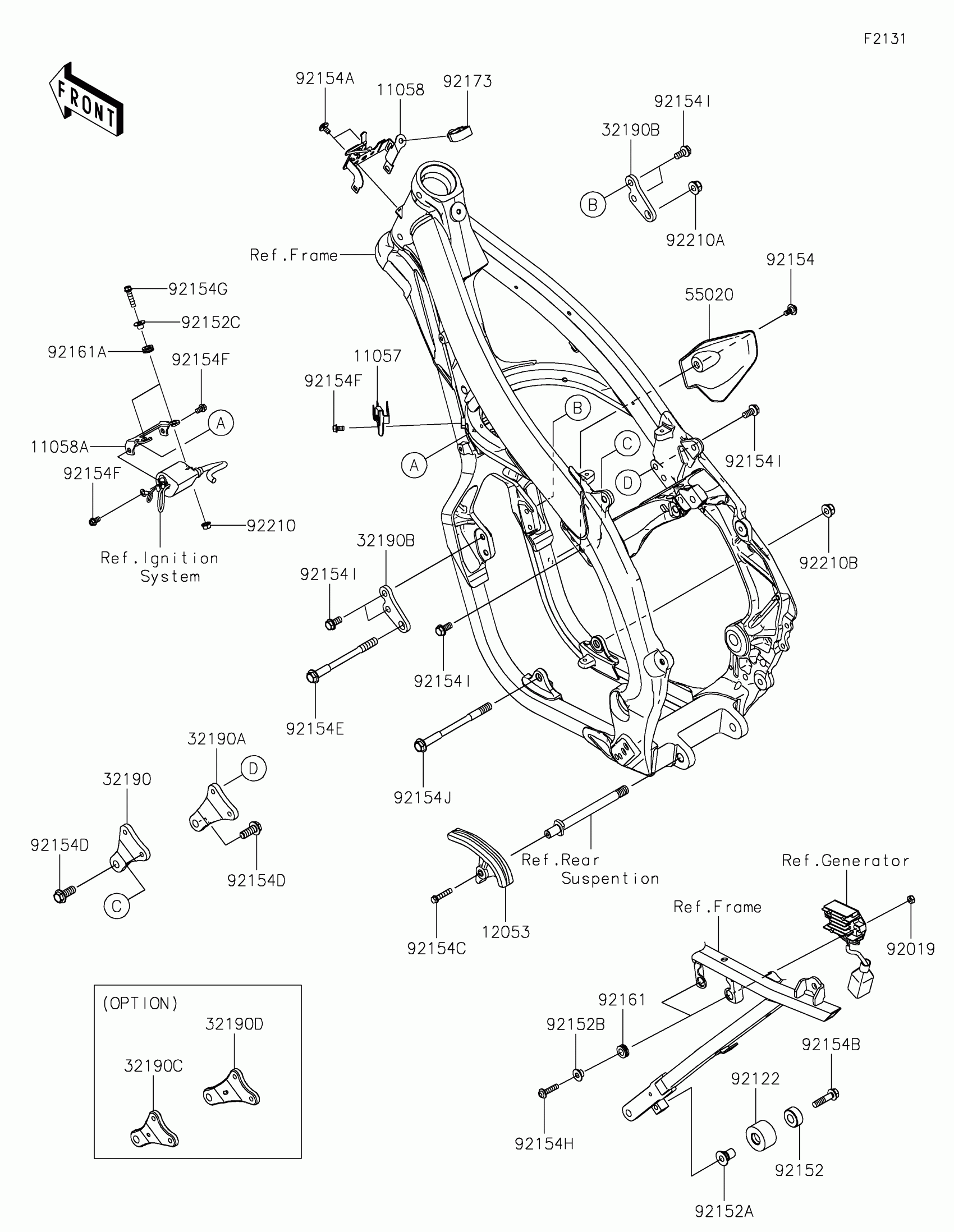

Kawasaki KX™450 Frame Fittings Diagram
#
Description
Price
11057
BRACKET,COUPLER
11057-1529
$13.60
11058
BRACKET,VEHICLE DOWN SENSOR
11058-0745
$54.53
11058A
BRACKET,IGNITION COIL
11058-1064
$11.43
12053
GUIDE-CHAIN
12053-0335
$82.61
32190
BRACKET-ENGINE,UPP,LH
32190-0889
$67.70
32190A
BRACKET-ENGINE,UPP,RH
32190-0890
$67.90
32190B
BRACKET-ENGINE,FR
32190-0891
$12.14
32190C
BRACKET-ENGINE,UPP,LH
32190-0917
$183.30
32190D
BRACKET-ENGINE,UPP,RH
32190-0918
$183.30
55020
GUARD,ENGINE
55020-2448
$29.34
92019
NUT,LOCK,6MM
92019-008
$4.26
92122
ROLLER,CHAIN
92122-0042
$15.80
92152
COLLAR,12.7X27.2X12
92152-0945
$8.58
92152A
COLLAR,8.3X12.5X21.5
92152-2460
$19.34
92152B
COLLAR,6.5X10X8.5
92152-2467
$13.60
92152C
COLLAR,6.3X8.3X16
92152-3839
$13.15
92154
BOLT,FLANGED,6X9
92154-0546
$3.74
92154A
BOLT,SOCKET,6X10
92154-0774
$1.63
92154B
BOLT,FLANGED,8X35
92154-1746
$1.48
92154C
BOLT,FLANGED,6X30
92154-1980
$1.19
92154D
BOLT,FLANGED,10X25
92154-2747
$6.38
92154E
BOLT,10X124
92154-2941
$15.39
92154F
BOLT,6X10
92154-2963
$0.64
92154G
BOLT,FLANGED,6X25
92154-2967
$0.90
92154H
BOLT,SOCKET,6X27,AL
92154-3775
$6.63
92154I
BOLT,8X17
92154-3881
$3.57
92154J
BOLT,10X137
92154-4397
$19.09
92161
DAMPER,10X18X6.5
92161-2091
$2.44
92161A
DAMPER,8.5X15.5X5.5
92161-2561
$3.93
92173
CLAMP
92173-0861
$3.02
92210
NUT,FLANGED,6MM
92210-0630
$2.00
92210A
NUT,LOCK,FLANGED,10MM
92210-1080
$10.28
92210B
NUT,10MM
92210-1868
$10.28
