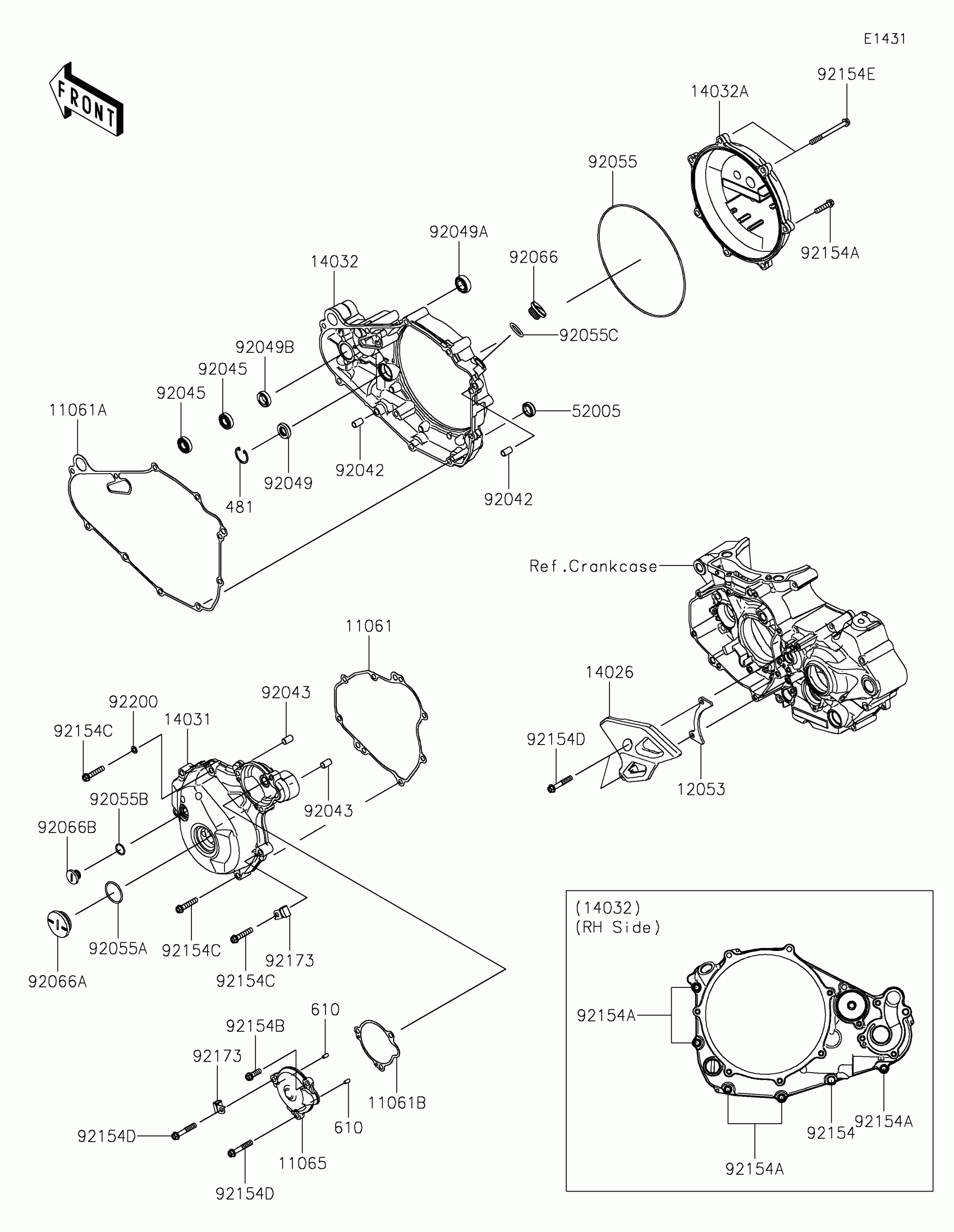

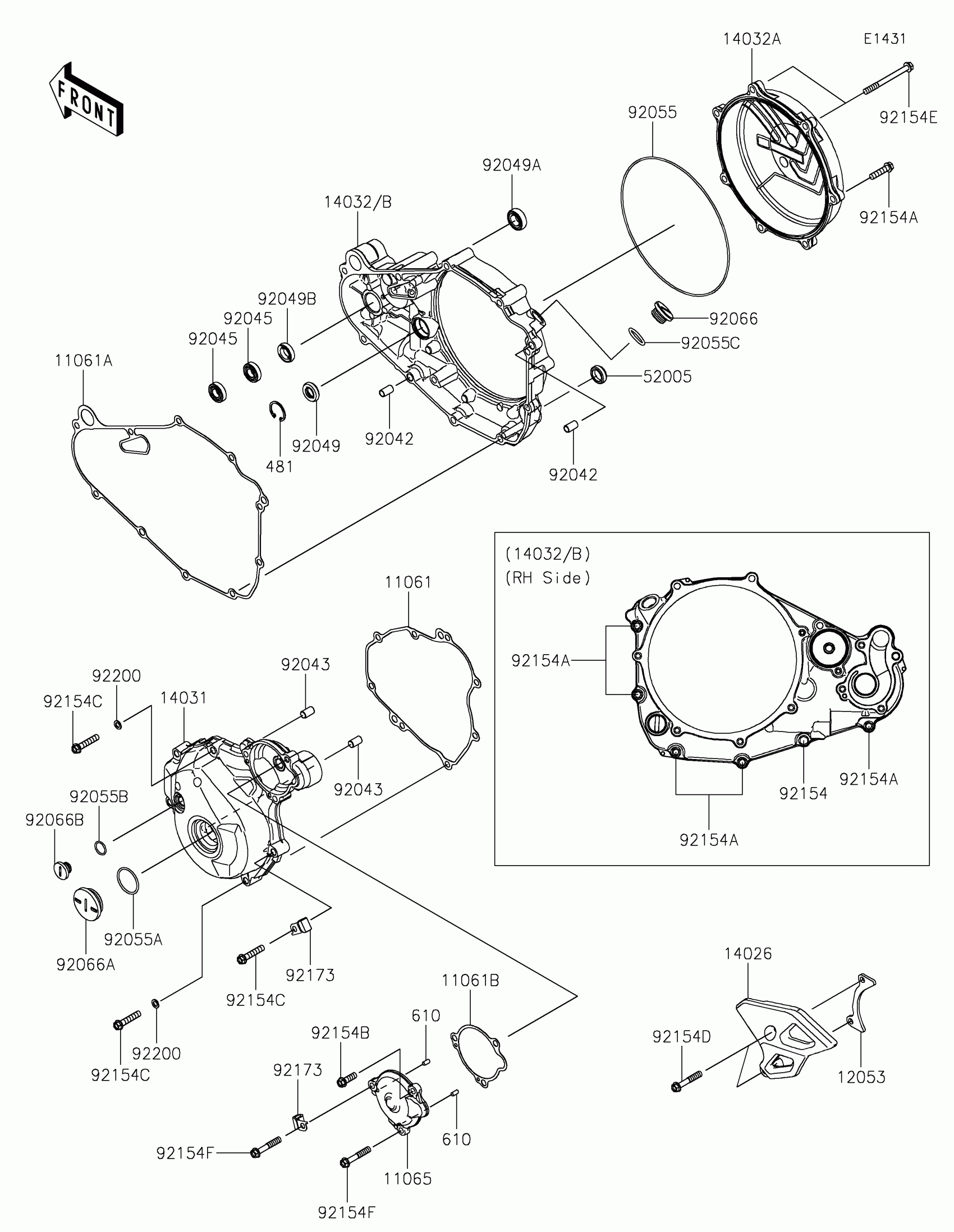

Kawasaki KX™450 Engine Cover(s) Diagram
#
Description
Price
11061
GASKET,GENERATOR COVER
11061-1271
$47.50
11061A
GASKET,CLUTCH INNER COVER
11061-1272
$35.42
11061B
GASKET,CAP
11061-1274
$7.22
11065
CAP
11065-1273
$45.13
12053
GUIDE-CHAIN
12053-0258
$6.84
14026
COVER-CHAIN
14026-0144
$24.27
14031
COVER-GENERATOR
14031-0636
$147.77
14032
COVER-CLUTCH,INNER
14032-0649
$273.96
14032A
COVER-CLUTCH,OUTER
14032-0670
$134.87
14032B
COVER-CLUTCH,INNER
14032-0712
$263.76
52005
GAUGE,OIL LEVEL
52005-0019
$14.76
92042
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92043
PIN,8X14
92043-1567
$2.26
92045
BEARING-BALL,6900C3
92045-0039
$16.52
92049
SEAL-OIL,TVCX13X22X5.5
92049-0762
$17.91
92049A
SEAL-OIL,12X24X7
92049-0782
$9.28
92049B
SEAL-OIL,12X22X5
92049-0783
$7.75
92055
RING-O,163X1.9
92055-0833
$14.60
92055A
RING-O,27.7X2.4
92055-091
$6.22
92055B
RING-O,13.0X1.9
92055-1011
$7.62
92055C
RING-O,20X2
92055-1146
$8.58
92066
PLUG,18X9
92066-0969
$22.17
92066A
PLUG,30X8
92066-0970
$29.77
92066B
PLUG,12X9.1
92066-0971
$21.29
92154
BOLT,FLANGED,6X30
92154-1942
$2.92
92154A
BOLT,FLANGED,6X25
92154-2967
$0.90
92154B
BOLT,FLANGED,6X18
92154-2976
$0.64
92154C
BOLT,FLANGED,6X30
92154-2977
$0.90
92154D
BOLT,FLANGED,6X35
92154-2978
$0.90
92154E
BOLT,FLANGED,6X65
92154-2980
$1.42
92154F
BOLT,FLANGED,6X35
92154-7263
$1.96
92173
CLAMP
92173-1940
$5.88
92200
WASHER,6.1X10.0X1.0
92200-0190
$2.61
481
CIRCLIP-TYPE-C,22MM
481J2200
$1.19
610
ROLLER,4X8
610A0408
$4.31
