2020 Kawasaki KX™450 Chassis Electrical Equipment Diagram

← All diagrams

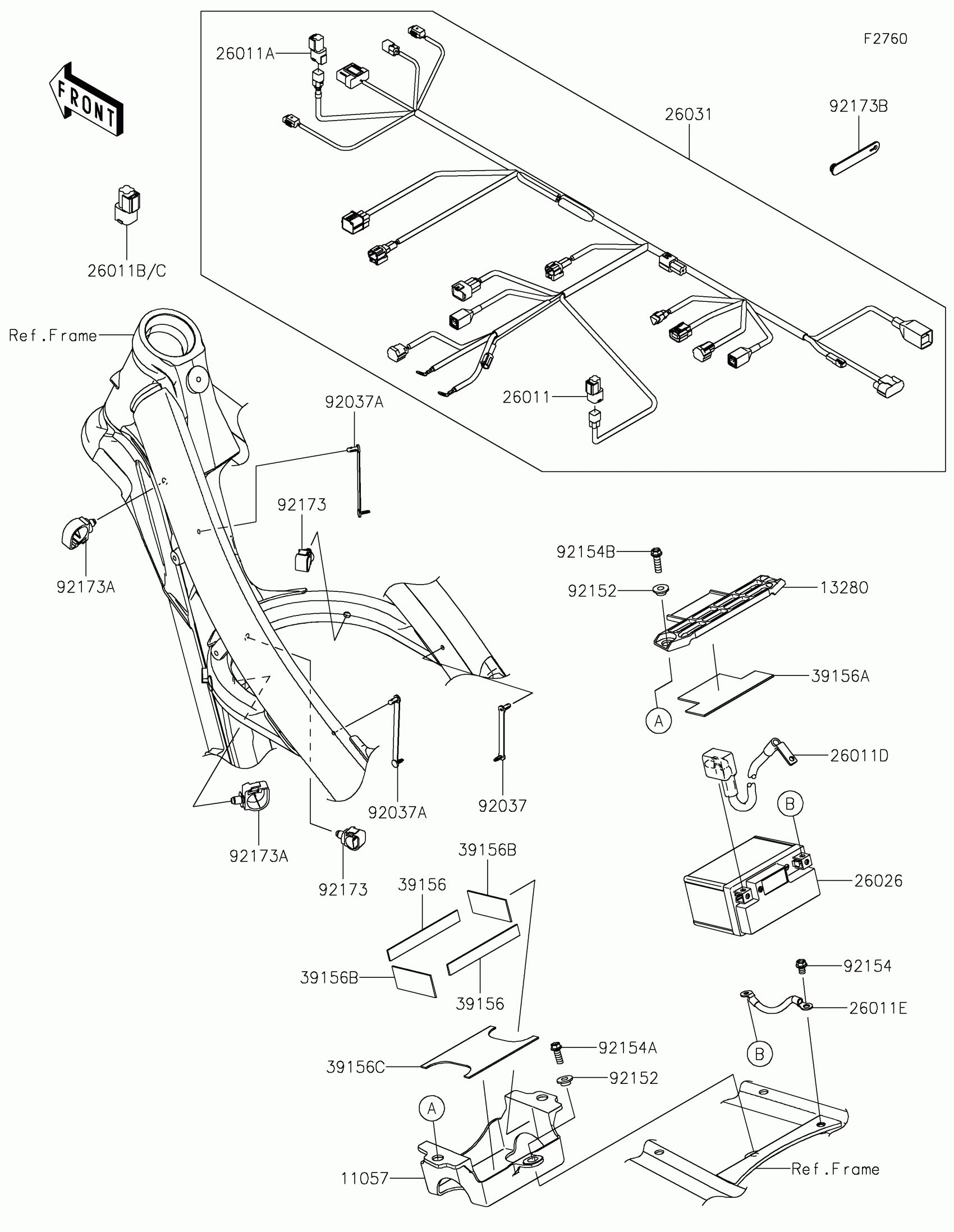

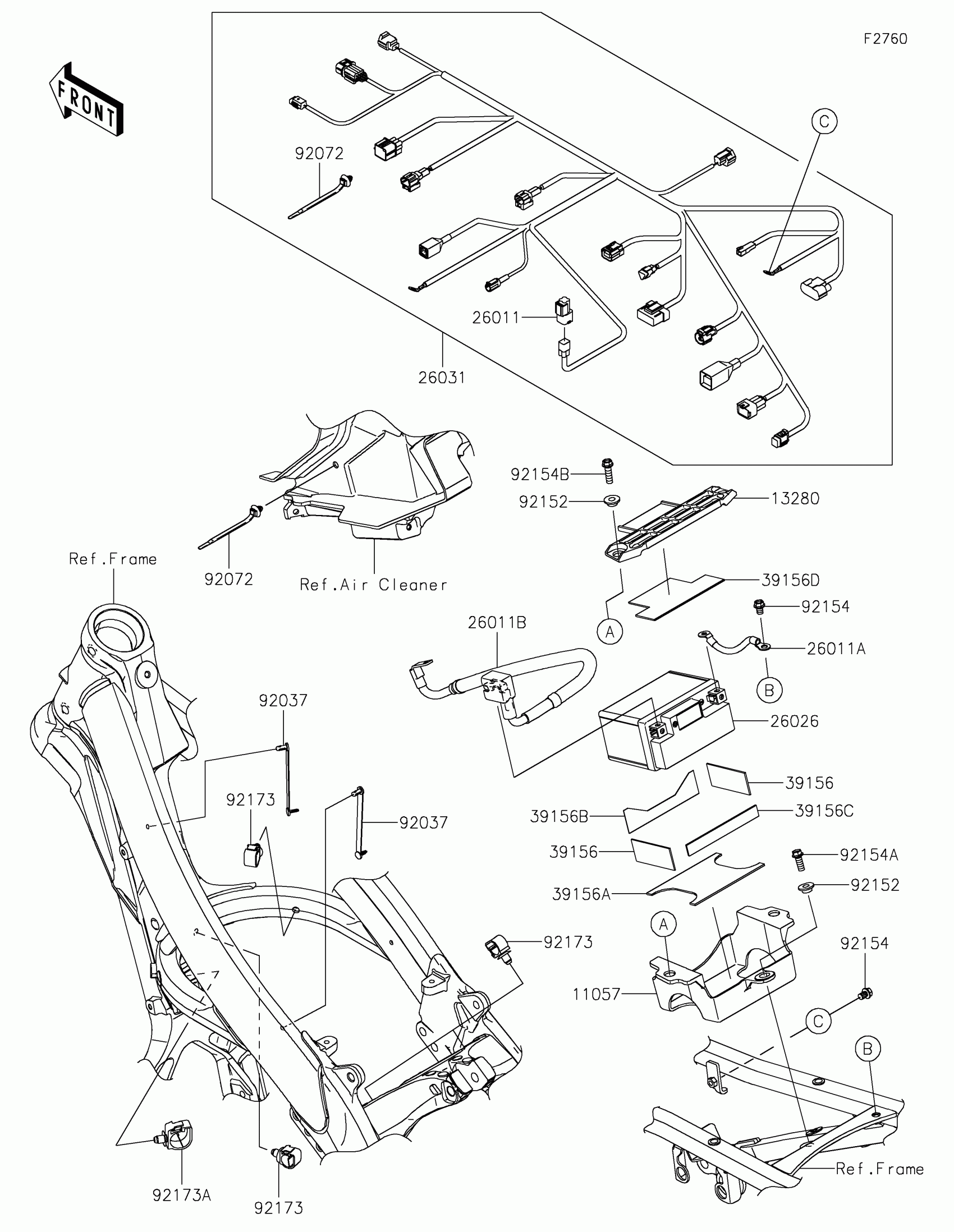

Find the part on the Chassis Electrical Equipment diagram for your 2020 Kawasaki KX™450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KX™450 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

1

$11.76

In stock

13280

1

$9.12

In stock

26011

WIRE-LEAD,NATURAL

26011-0273

1

$14.78

In stock

26011A

WIRE-LEAD,GREEN

26011-0727

1

$12.50

In stock

26011B

1

$12.50

In stock

26011C

1

$12.50

In stock

26011D

1

$41.44

In stock

26011E

1

$29.90

In stock

26026

1

$245.16

In stock

26031

HARNESS,MAIN

26031-2590

1

$396.80

In stock

39156

PAD,12X100X1

39156-2266

1

$1.54

In stock

39156A

PAD,60X100X1.5

39156-2418

1

$4.64

In stock

39156B

PAD,25X58X1.5

39156-2419

1

$1.17

In stock

39156C

PAD,100X72X1.5

39156-2420

1

$4.85

In stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92037A

CLAMP,SPEED,L=80.5

92037-1903

1

$6.24

In stock

92152

COLLAR,6.5X10X5.6

92152-0445

1

$3.90

In stock

92154

BOLT,FLANGED,6X8

92154-2962

1

$0.69

In stock

92154A

BOLT,FLANGED,6X16

92154-2965

1

$0.88

In stock

92154B

BOLT,FLANGED,6X20

92154-2966

1

$0.69

In stock

92173

CLAMP,12MM DIA.

92173-0736

1

$4.01

In stock

92173A

CLAMP

92173-0861

1

$2.44

In stock

92173B

CLAMP

92173-1526

1

$3.56

In stock
