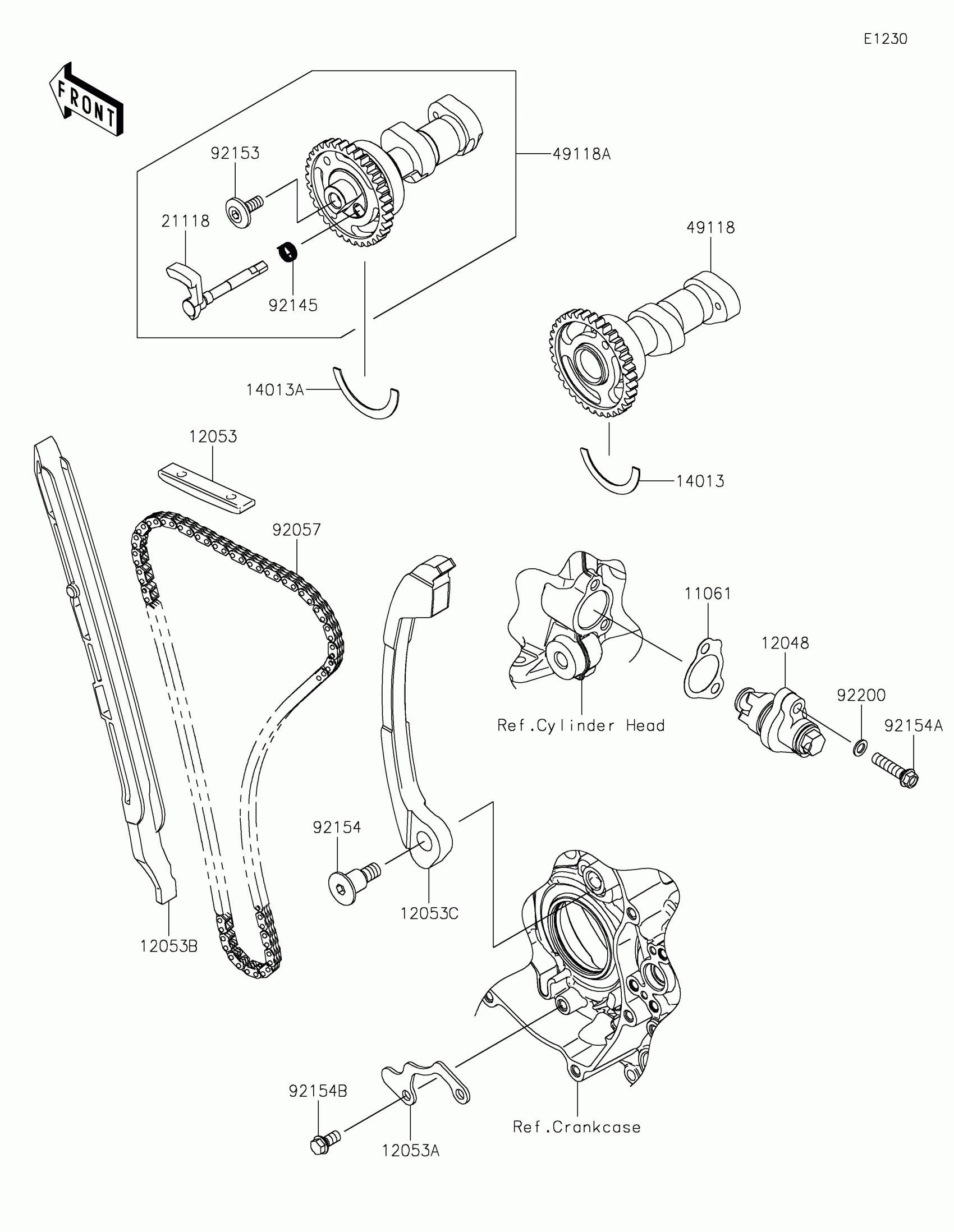

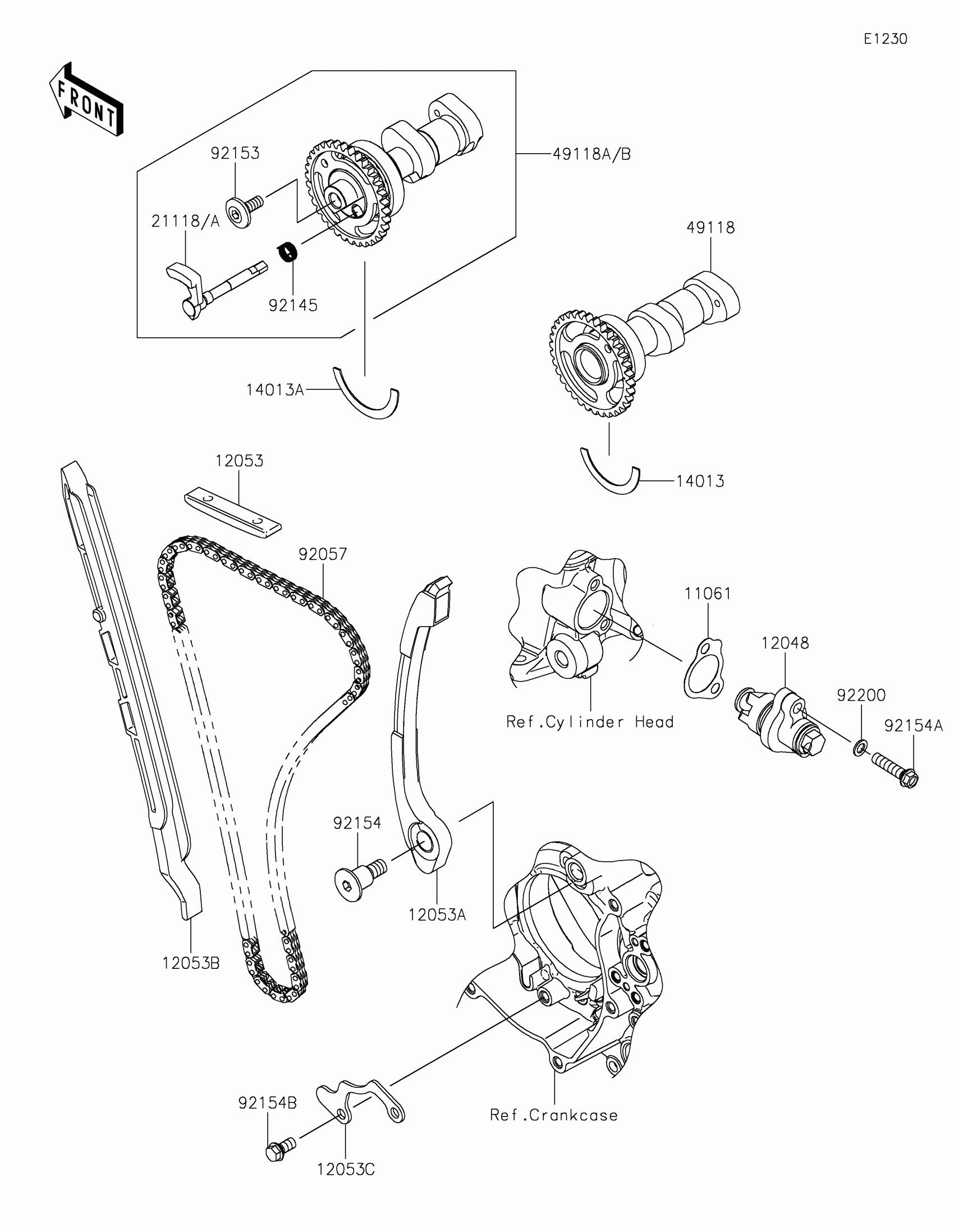

Kawasaki KX™450 Camshaft(s)/Tensioner Diagram

Description

Price

11061

GASKET

11061-1288

$5.60

12048

TENSIONER-ASSY

12048-0088

$135.39

12053

GUIDE-CHAIN,UPP

12053-0051

$23.95

12053A

GUIDE-CHAIN,RR

12053-0255

$69.13

12053B

GUIDE-CHAIN,FR

12053-0256

$46.80

12053C

GUIDE-CHAIN,STOPPER

12053-0257

$4.92

14013

RING-POSITION

14013-0003

$5.54

14013A

RING-POSITION

14013-0004

$5.54

21118A

DECOMPRESSOR

21118-0026

$108.65

49118

CAMSHAFT-COMP,INTAKE

49118-0930

$216.50

49118B

CAMSHAFT-COMP,EXHAUST

49118-0983

$280.35

92057

CHAIN,CAM,98XRH2010-126M

92057-0078

$58.76

92145

SPRING,DECOMP

92145-0365

$6.46

92153

BOLT,SOCKET,6X16

92153-0918

$9.00

92154

BOLT

92154-2944

$13.60

92154A

BOLT,FLANGED,6X25

92154-2967

$0.90

92154B

BOLT,FLANGED,6X12

92154-2975

$0.64

92200

WASHER,6.1X10.0X1.0

92200-0190

$2.61
