Description

Price

12053

GUIDE-CHAIN

12053-0125

$65.67

12053A

GUIDE-CHAIN

12053-0254

$86.26

13272

PLATE,CHAIN GUARD

13272-2485

$46.83

33001

ARM-COMP-SWING

33001-0713

$994.83

33032

SHAFT-SWING ARM

33032-0012

$47.83

33040

ADJUSTER-CHAIN,LH

33040-0050

$15.21

33040A

ADJUSTER-CHAIN,RH

33040-0080

$15.21

42036

SLEEVE,17X22X47.3

42036-0784

$28.42

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92046

BEARING-NEEDLE,TA2230Z

92046-1174

$36.90

92046A

BEARING-NEEDLE,NTBR22356E01

92046-1240

$19.12

92093

SEAL,SDO29X35X4.5

92093-1434

$9.11

92093A

SEAL,SDO22X29X5

92093-1435

$8.79

92143

COLLAR

92143-1676

$6.22

92152

COLLAR,17.1X29X6.7

92152-2222

$12.56

92154

BOLT,8X50

92154-2957

$4.85

92154A

BOLT,6X10

92154-2963

$0.64

92154B

BOLT,6X40

92154-2968

$0.90

92172

SCREW,5X8

92172-0119

$2.12

92200

WASHER,17.2X30X2.3

92200-0285

$3.90

92210

NUT,LOCK,16MM

92210-0285

$20.37

92210A

NUT,FLANGED,6MM

92210-0630

$2.00

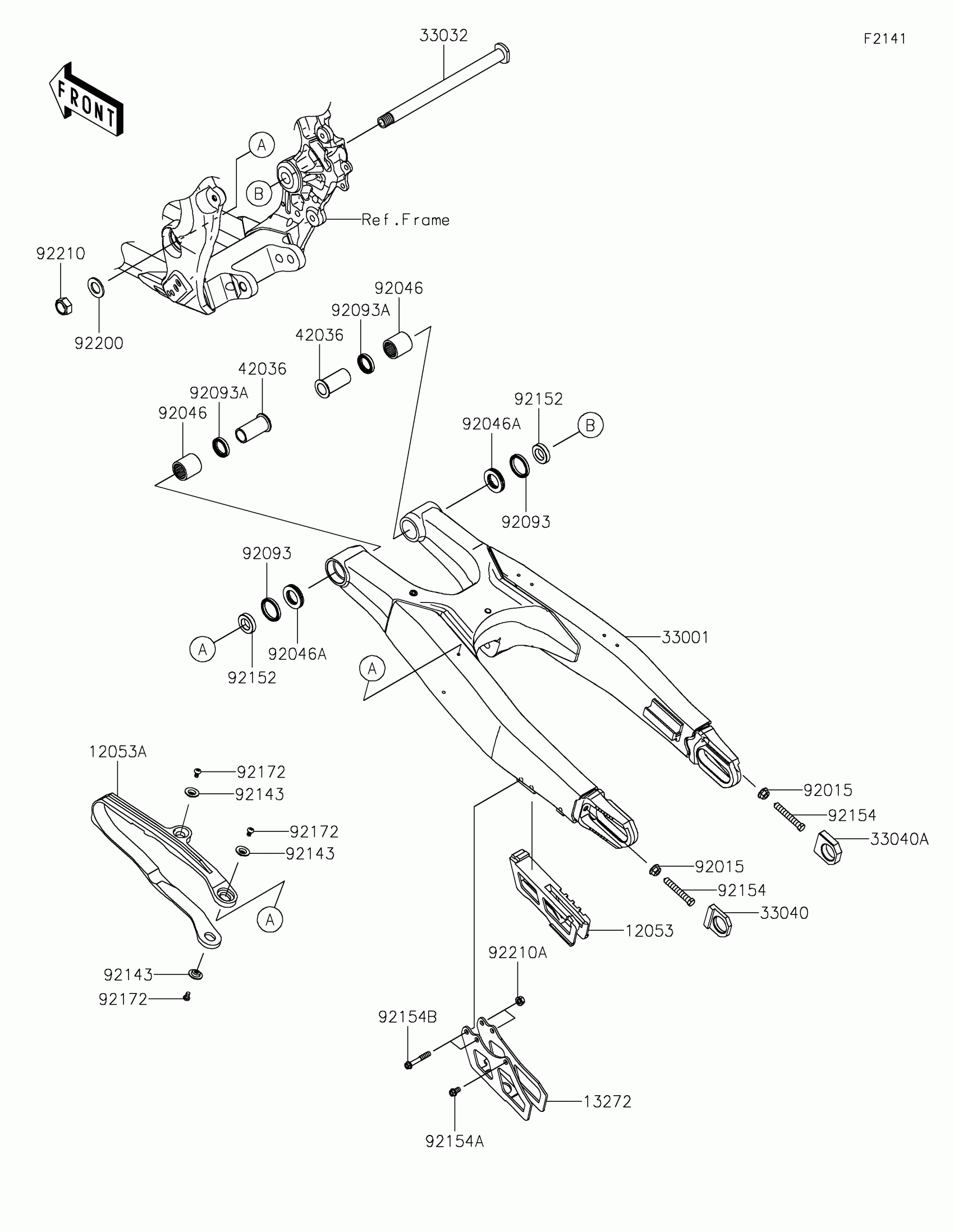

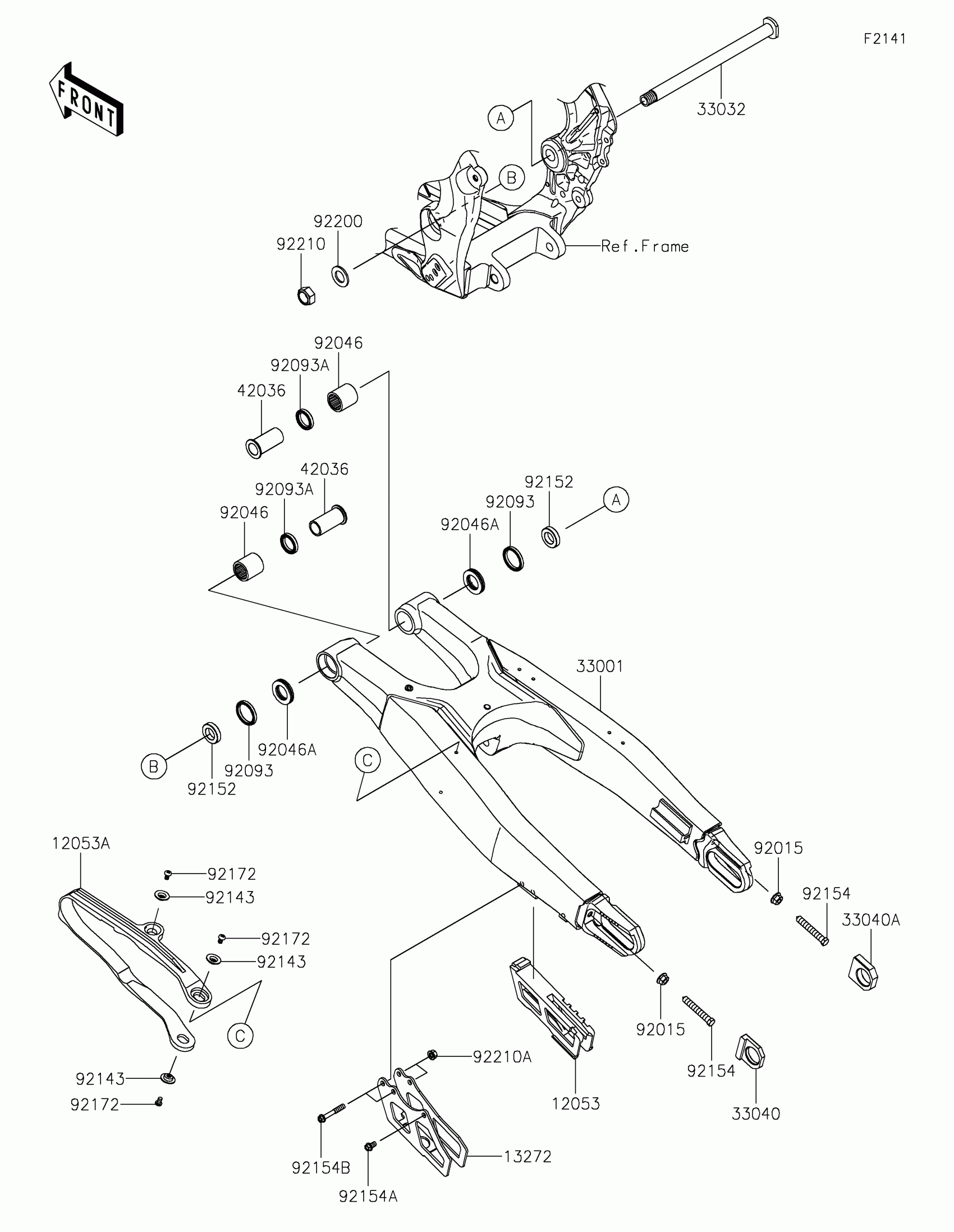

Kawasaki KX™250X Swingarm Diagram

GUIDE-CHAIN

GUIDE-CHAIN

PLATE,CHAIN GUARD

ARM-COMP-SWING

SHAFT-SWING ARM

ADJUSTER-CHAIN,LH

ADJUSTER-CHAIN,RH

SLEEVE,17X22X47.3

NUT,FLANGED,8MM

BEARING-NEEDLE,TA2230Z

BEARING-NEEDLE,NTBR22356E01

SEAL,SDO29X35X4.5

SEAL,SDO22X29X5

COLLAR

COLLAR,17.1X29X6.7

BOLT,8X50

BOLT,6X10

BOLT,6X40

SCREW,5X8

WASHER,17.2X30X2.3

NUT,LOCK,16MM

NUT,FLANGED,6MM
