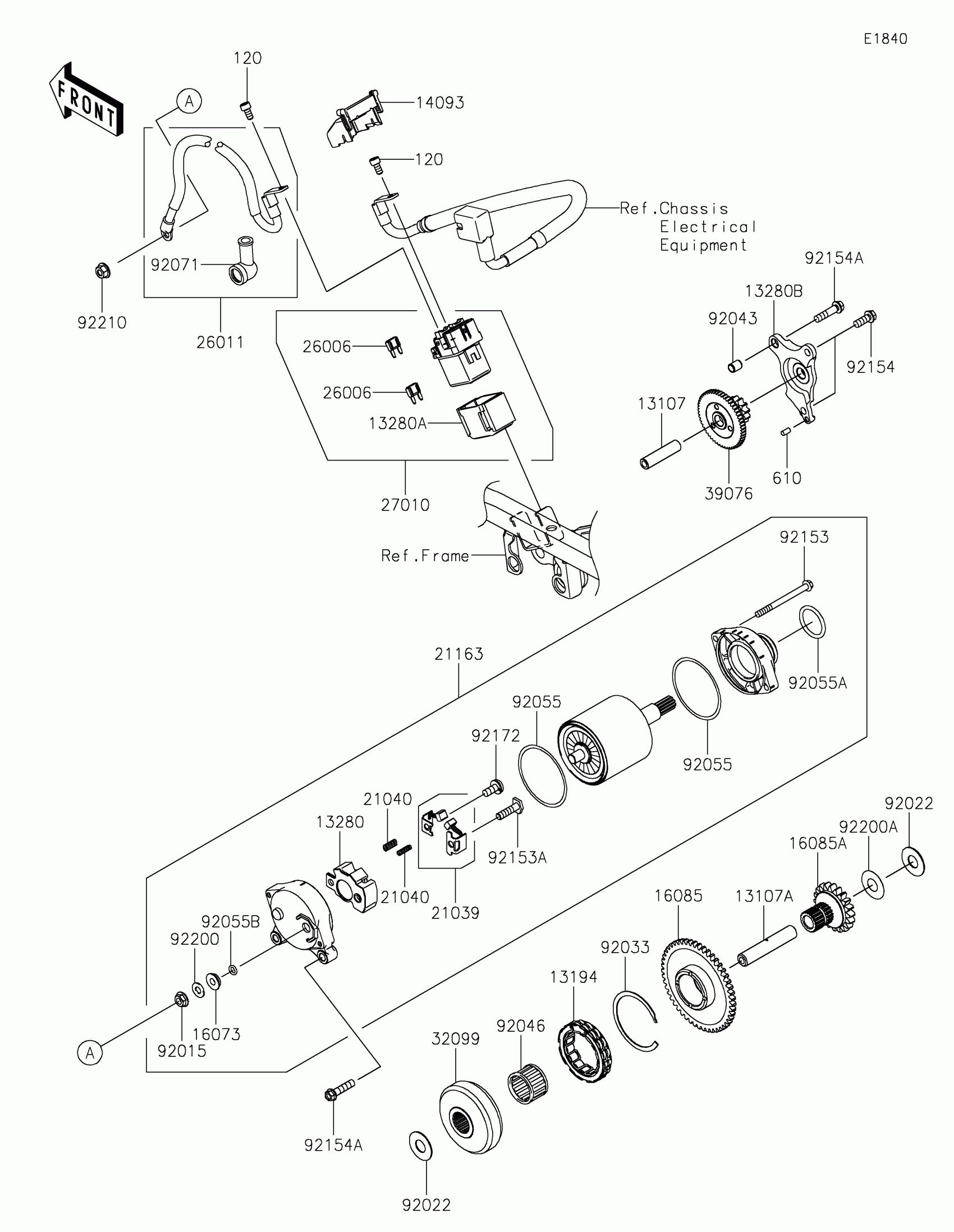

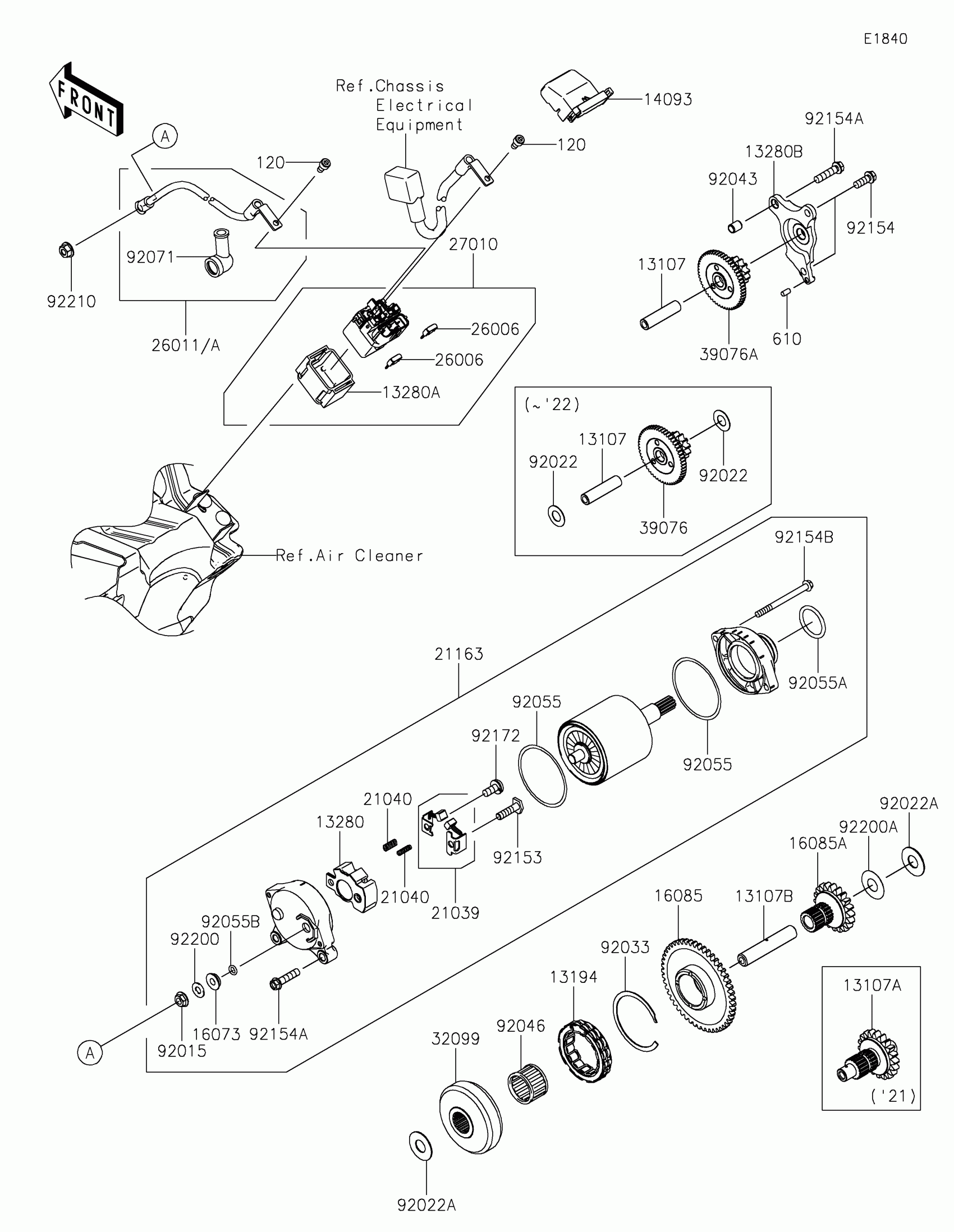

Kawasaki KX™250X Starter Motor Diagram

#

Description
Price

13107

SHAFT,IDLER

13107-0917

$8.74

13107A

SHAFT

13107-0946

$19.99

13194

CLUTCH-ONEWAY

13194-3705

$111.48

13280

HOLDER

13280-0261

$16.72

13280A

HOLDER,MAGNETIC SWITCH

13280-0814

$11.88

13280B

HOLDER,LIMITER

13280-0993

$55.49

14093

COVER,MAGNETIC SWITCH

14093-0716

$9.50

16073

INSULATOR

16073-0053

$11.93

16085

GEAR,49T

16085-0703

$130.48

16085A

GEAR,20T

16085-0710

$124.38

21039

BRUSH,CARBON SET

21039-0005

$68.25

21040

SPRING-BRUSH

21040-0003

$9.79

21163

STARTER-ELECTRIC

21163-0814

$605.49

26006

FUSE,10A

26006-0033

$6.12

26011

WIRE-LEAD

26011-2539

$54.03

27010

SWITCH,MAGNETIC

27010-0879

$108.75

32099

CASE

32099-0812

$126.83

39076

LIMITER

39076-0561

$191.15

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,12X27.5X1.0

92022-1852

$5.11

92033

RING-SNAP

92033-3731

$6.16

92043

PIN,DOWEL,8X10

92043-1302

$1.03

92046

BEARING-NEEDLE,RS263020

92046-0004

$24.31

92055

RING-O

92055-0136

$7.75

92055A

RING-O

92055-1276

$9.91

92055B

RING-O,4.5X2.0

92055-1370

$4.69

92071

GROMMET

92071-0024

$10.21

92153

BOLT,SET

92153-1851

$7.68

92153A

BOLT

92153-1866

$4.65

92154

BOLT,FLANGED,6X16

92154-2965

$0.90

92154A

BOLT,FLANGED,6X25

92154-2967

$0.90

92172

SCREW

92172-0334

$4.65

92200

WASHER

92200-0386

$4.65

92200A

WASHER,12.2X27.5X0.2

92200-2432

$7.78

92210

NUT,6MM

92210-0188

$2.15

120

BOLT-SOCKET,5X10

120CB0510

$1.64

610

ROLLER,4X8

610A0408

$4.31
