2024 Kawasaki KX™250X Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 2024 Kawasaki KX™250X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

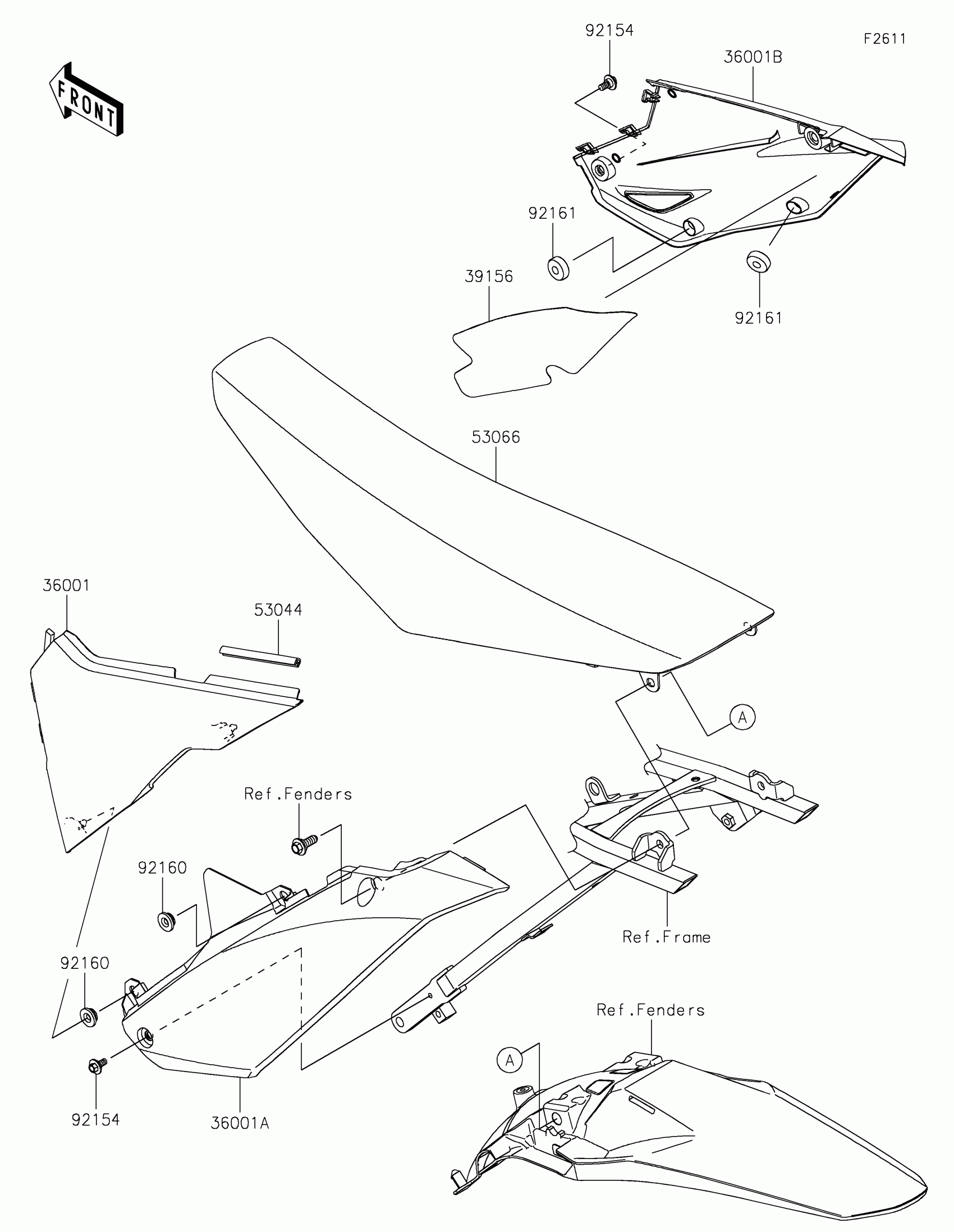

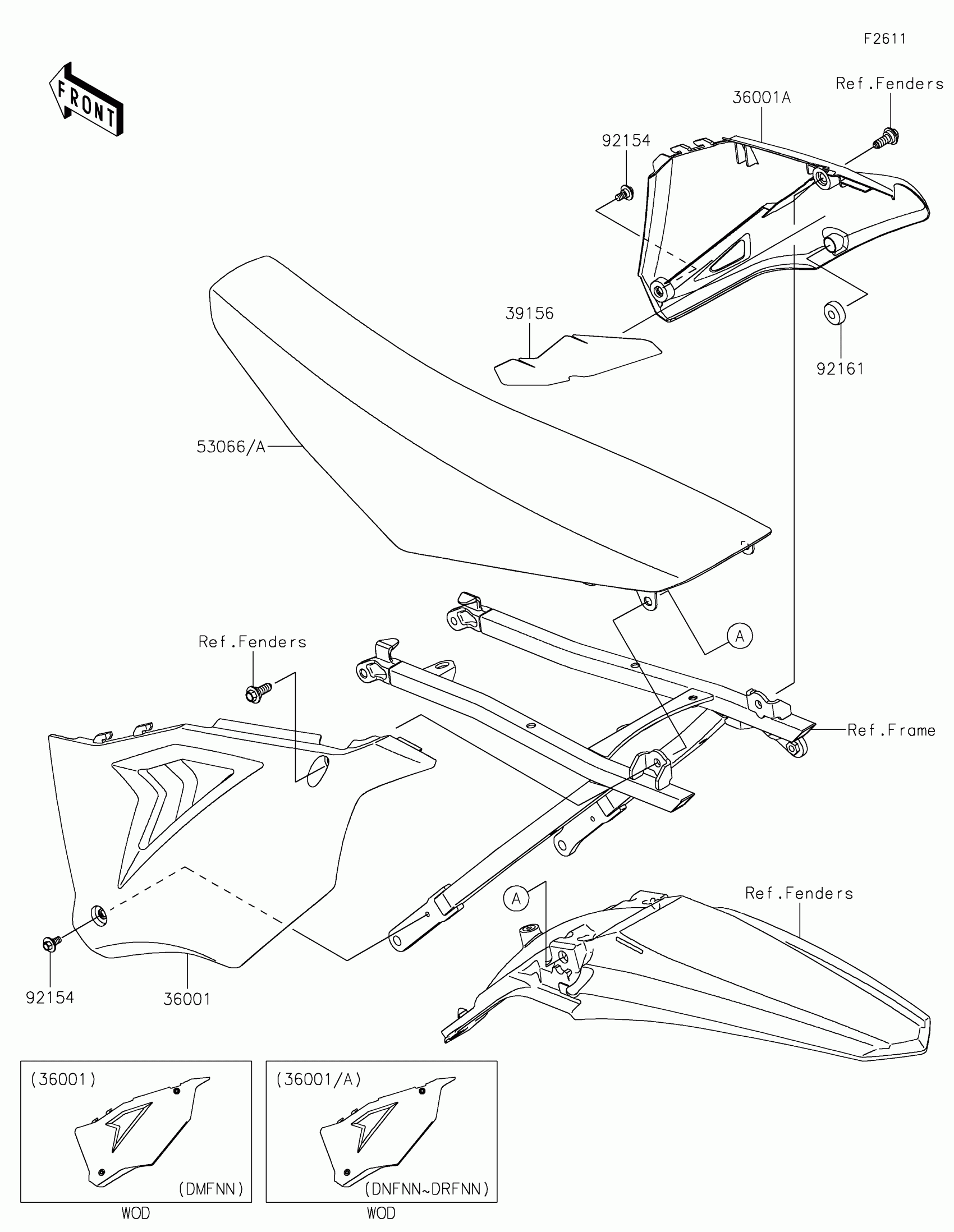

2024 Kawasaki KX™250X Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,L.GREEN

36001-0660-290

1
Out of stock

36001A

COVER-SIDE,RH,L.GREEN

36001-0662-290

1
Out of stock

39156

PAD

39156-2264

1
Out of stock

53066

SEAT-ASSY,N.L.GREEN+BLK/WHT

53066-0604-49F

1
Out of stock

53066A

SEAT-ASSY,N.L.GREEN+GRN/BLK

53066-0604-73L

1
Out of stock

92154

BOLT,FLANGED,6X9

92154-0546

1
Out of stock

92161

DAMPER

92161-2090

1
Out of stock
