Description

Price

11057

BRACKET,VEHICLE DOWN SENSOR

11057-1528

$7.56

11057A

BRACKET,COUPLER

11057-1529

$12.95

11057B

BRACKET,REGULATOR

11057-1531

$24.05

11057C

BRACKET,ECU

11057-1557

$62.21

55020

GUARD,ENGINE,LWR

55020-1893

$26.07

55020A

GUARD

55020-2213

$29.90

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.04

92019

NUT,LOCK,6MM

92019-008

$3.12

92045

BEARING-BALL,608LLU/2A

92045-0060

$33.22

92122

ROLLER,CHAIN GUIDE

92122-0016

$14.01

92122A

ROLLER,CHAIN

92122-0042

$14.95

92152

COLLAR

92152-0459

$24.68

92152A

COLLAR,12.7X27.2X12

92152-0945

$8.37

92152B

COLLAR,8.3X12.5X21.5

92152-2460

$18.08

92152C

COLLAR,6.5X10X8.5

92152-2467

$12.95

92154

BOLT,FLANGED,6X9

92154-0546

$2.84

92154A

BOLT,SOCKET,6X10

92154-0774

$1.24

92154B

BOLT,FLANGED,8X35

92154-1746

$1.32

92154C

BOLT,6X10

92154-2963

$0.69

92154D

BOLT,SOCKET,6X18,AL

92154-3774

$5.56

92154E

BOLT,SOCKET,6X27,AL

92154-3775

$5.76

92161

DAMPER,10X18X6.5

92161-2091

$1.74

92173

CLAMP

92173-0861

$2.11

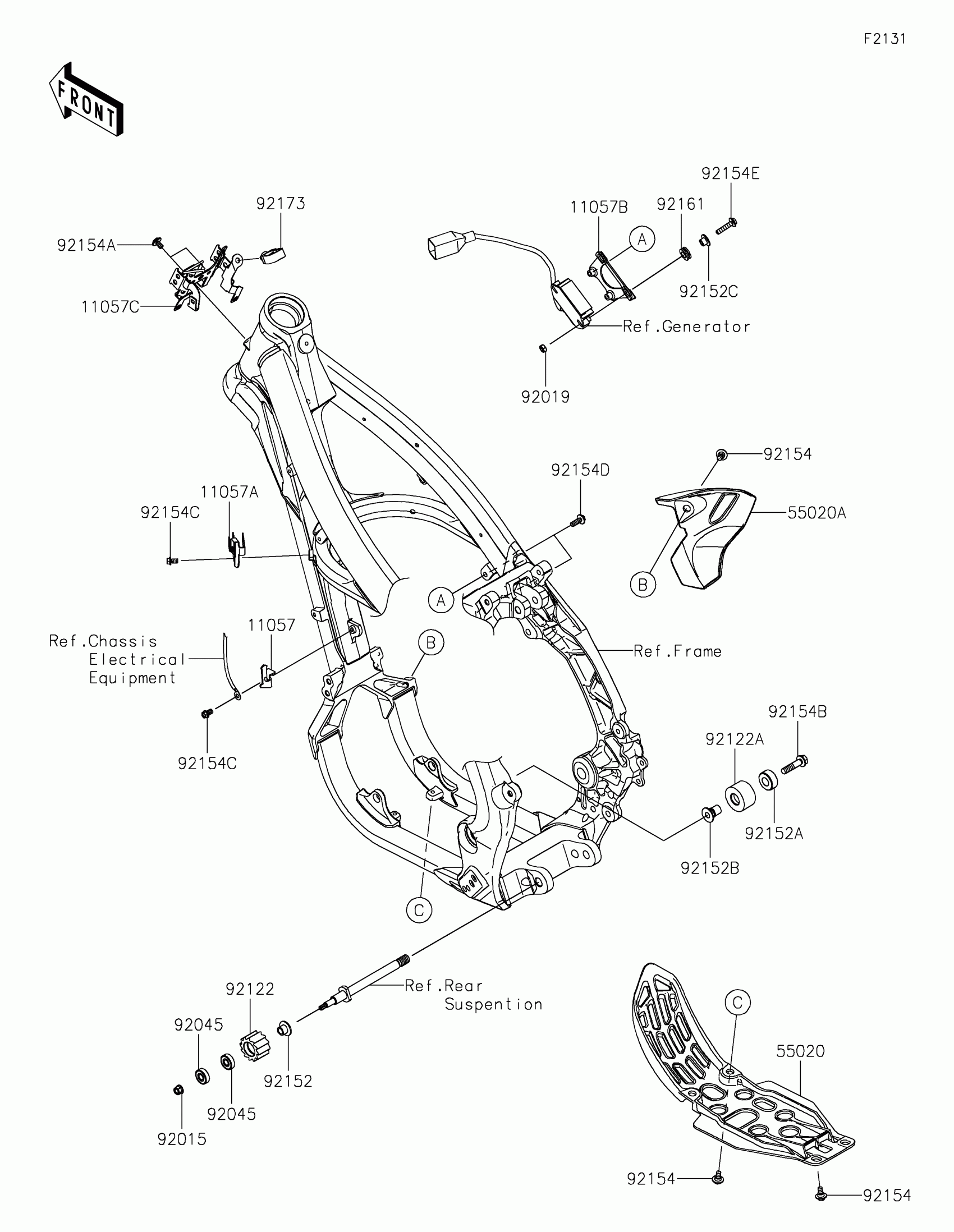

Kawasaki KX™250X Frame Fittings Diagram
