Description

Price

11065

CAP,AXLE

11065-1298

$7.58

41034

DRUM-ASSY,REAR BRAKE

41034-0597

$440.62

41068

AXLE,RR,L=255

41068-0597

$94.33

42041

SPROCKET-HUB,50T,AL

42041-0167

$183.21

42041A

SPROCKET-HUB,49T,STEEL

42041-1384

$73.98

42041B

SPROCKET-HUB,50T,STEEL

42041-1408

$70.97

42041C

SPROCKET-HUB,51T,STEEL

42041-1428

$70.97

42041D

SPROCKET-HUB,49T,AL

42041-1449

$138.44

42041E

SPROCKET-HUB,51T,AL

42041-1451

$128.62

92033

RING-SNAP,42MM

92033-1041

$6.16

92045

BEARING-BALL,69052RS

92045-1446

$33.44

92049

SEAL-OIL

92049-1614

$14.71

92057

CHAIN,DRIVE,DID520VT2X114L

92057-0710

$197.62

92058

JOINT-CHAIN,DRIVE

92058-0046

$13.71

92150

BOLT,SOCKET,8X28

92150-1978

$8.58

92152

COLLAR,25.4X31X106.5

92152-2506

$41.43

92152A

COLLAR,25.05X44X17

92152-2531

$29.05

92200

WASHER,22.5X35X2.3

92200-1623

$1.54

92210

NUT,FLANGED,LOCK,8MM

92210-0493

$7.60

92210A

NUT,SELF LOCK,22MM

92210-0939

$21.71

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.96

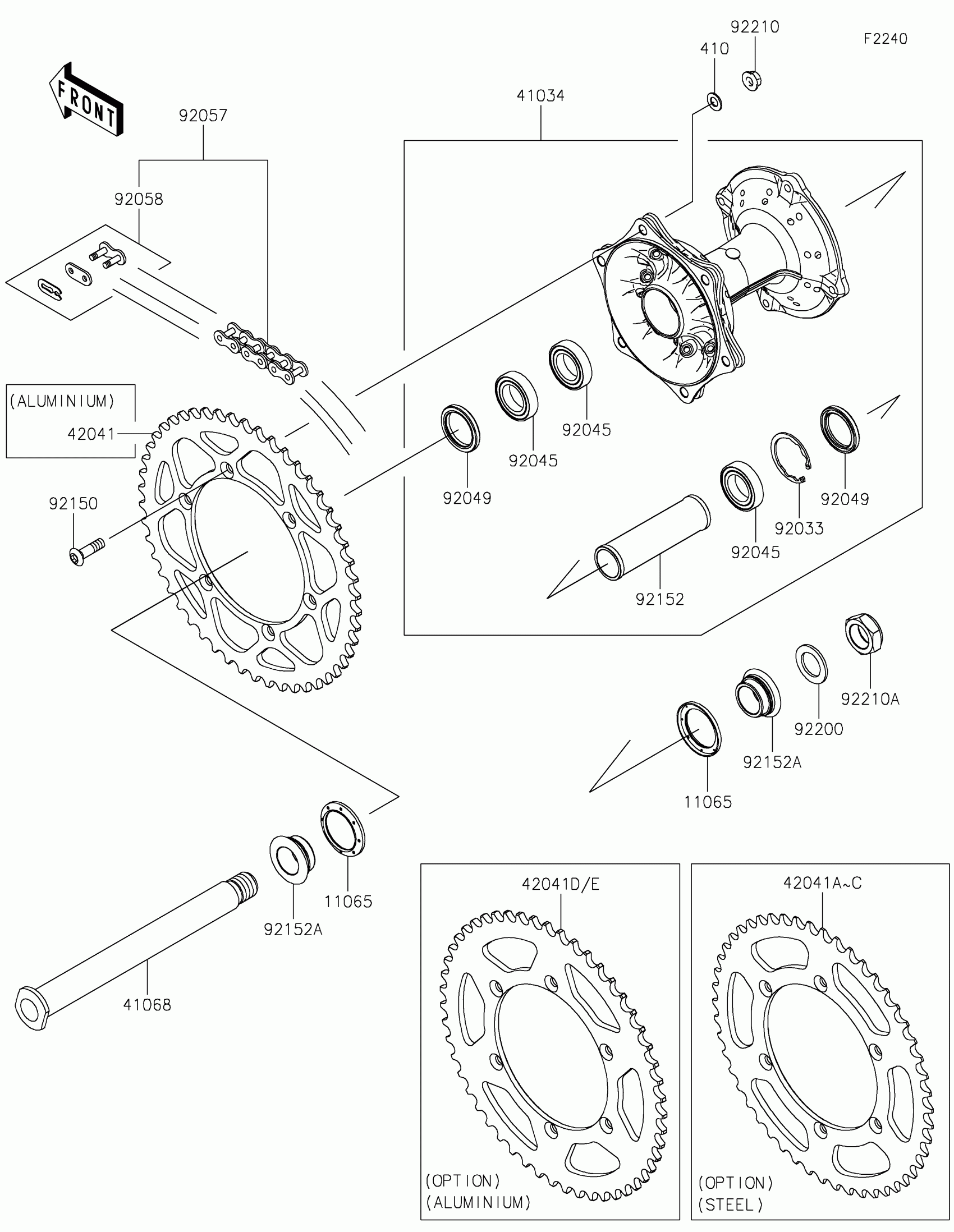

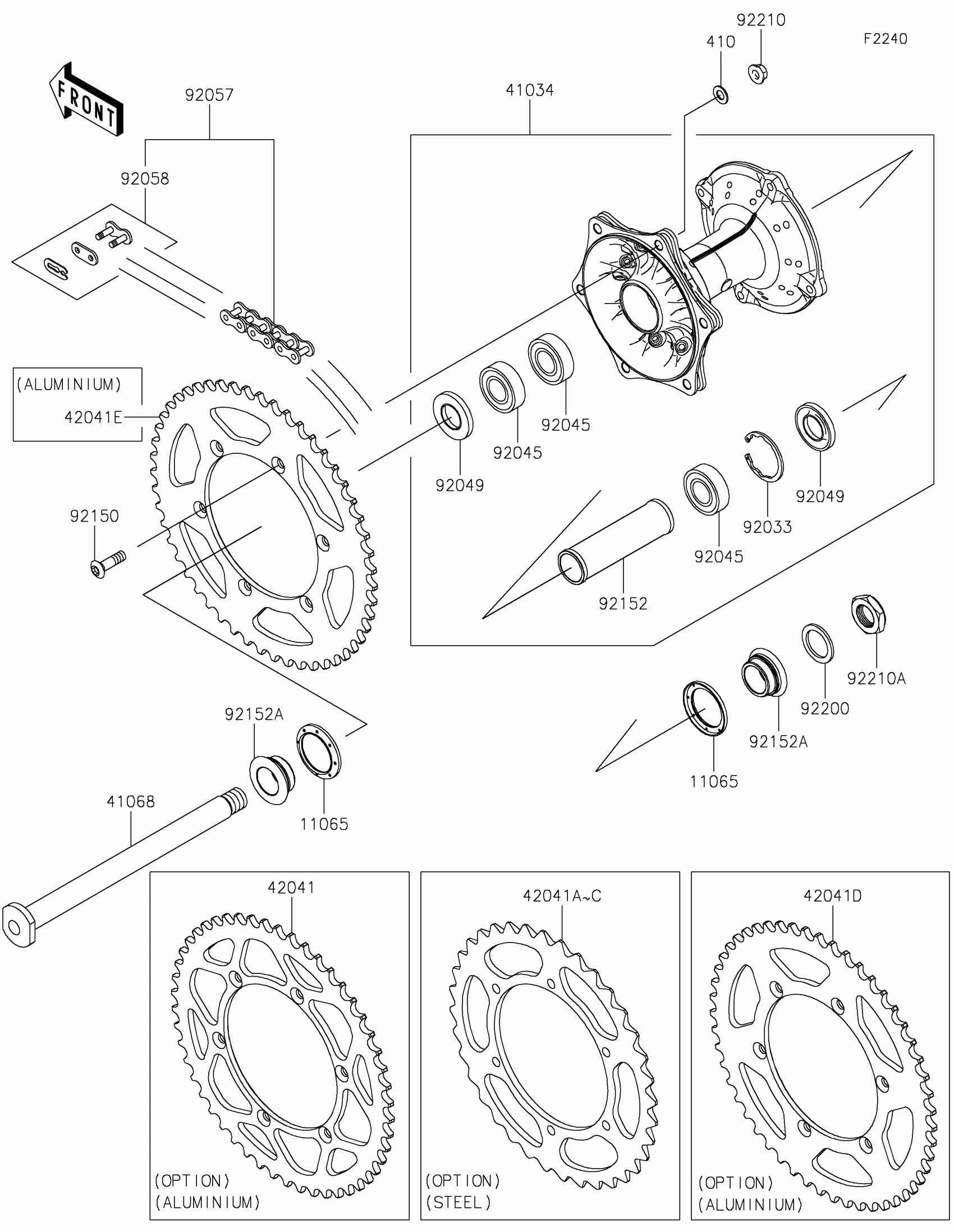

Kawasaki KX™250X Rear Hub Diagram
