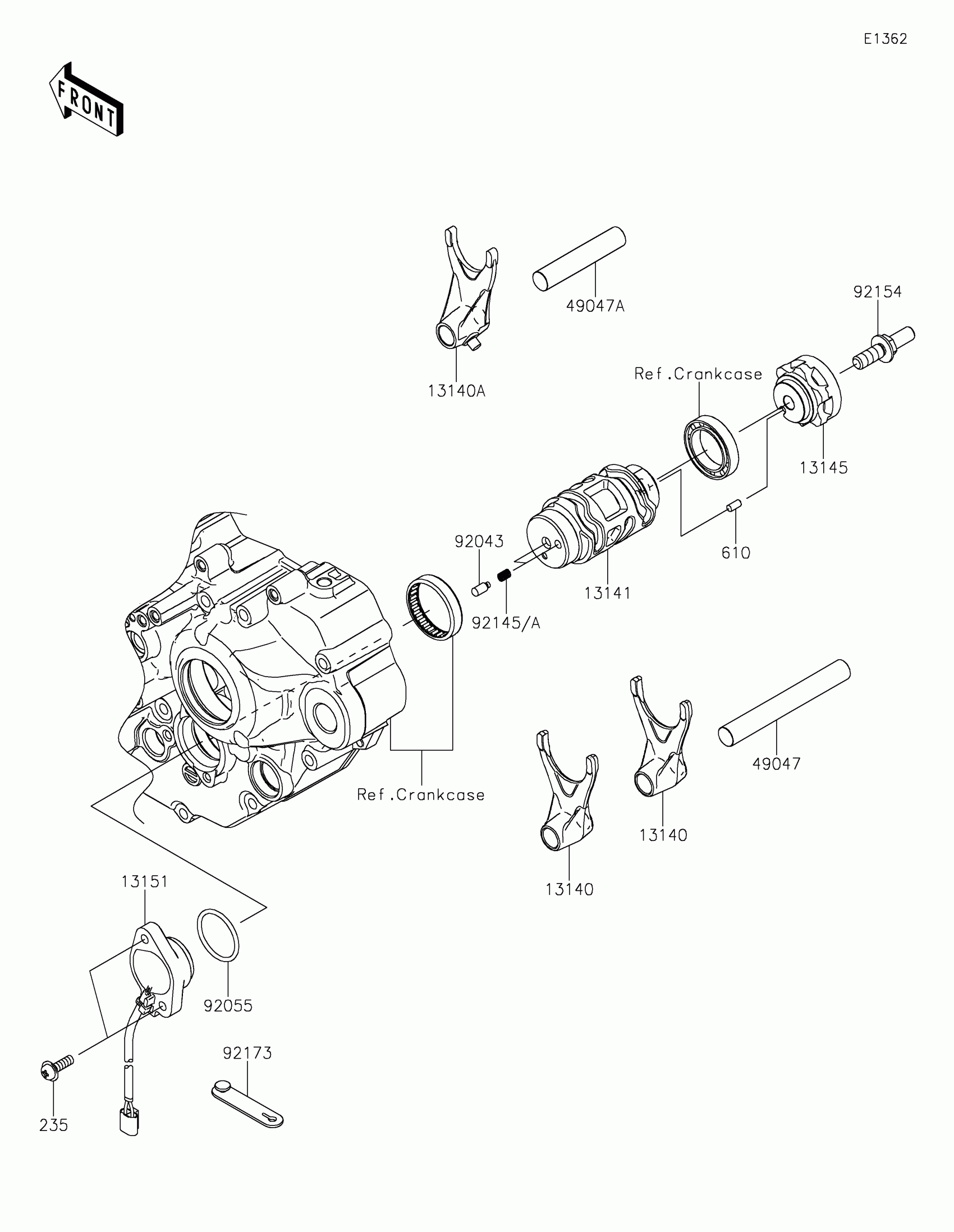

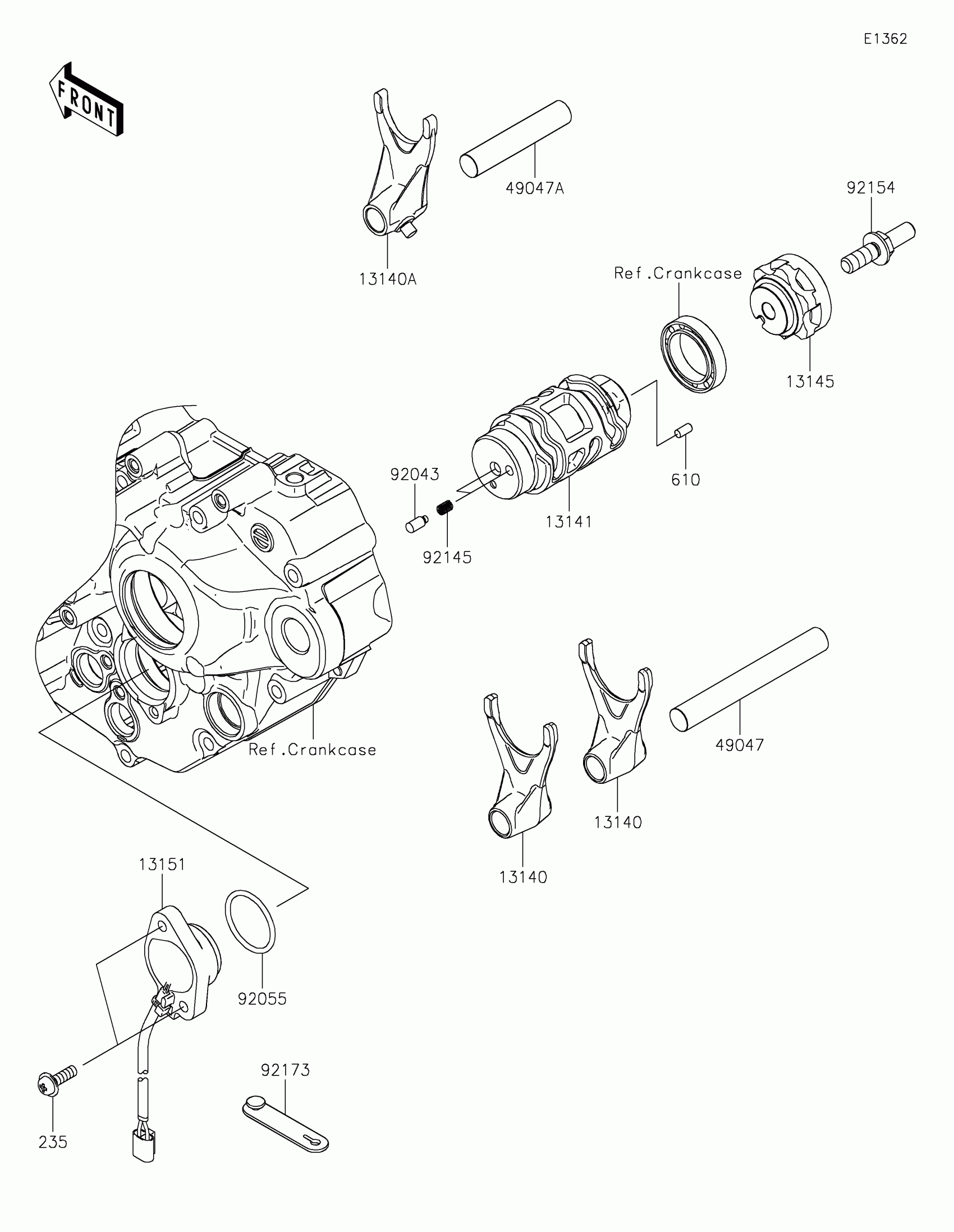

Kawasaki KX™250X Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13140

FORK-SHIFT,OUTPUT

13140-0689

$108.67

13140A

FORK-SHIFT,INPUT

13140-0690

$108.67

13141

DRUM-CHANGE

13141-0612

$116.91

13145

CAM-CHANGE DRUM

13145-0565

$66.69

13151

SWITCH-COMP,GEAR POSITION

13151-0594

$88.52

49047

ROD-SHIFT,OUTPUT,L=94.5

49047-0620

$27.54

49047A

ROD-SHIFT,INPUT,L=63

49047-0621

$27.54

92043

92043-1654

$3.74

92055

RING-O,27.7X2.4

92055-091

$6.22

92145

SPRING

92145-2256

$4.14

92154

BOLT,8X20

92154-4341

$6.18

92173

CLAMP,RUBBER PLATE

92173-1229

$3.94

235

SCREW-PAN-WP-CROS,5X16

235AB0516

$1.22

610

ROLLER,4X8

610A0408

$4.31
