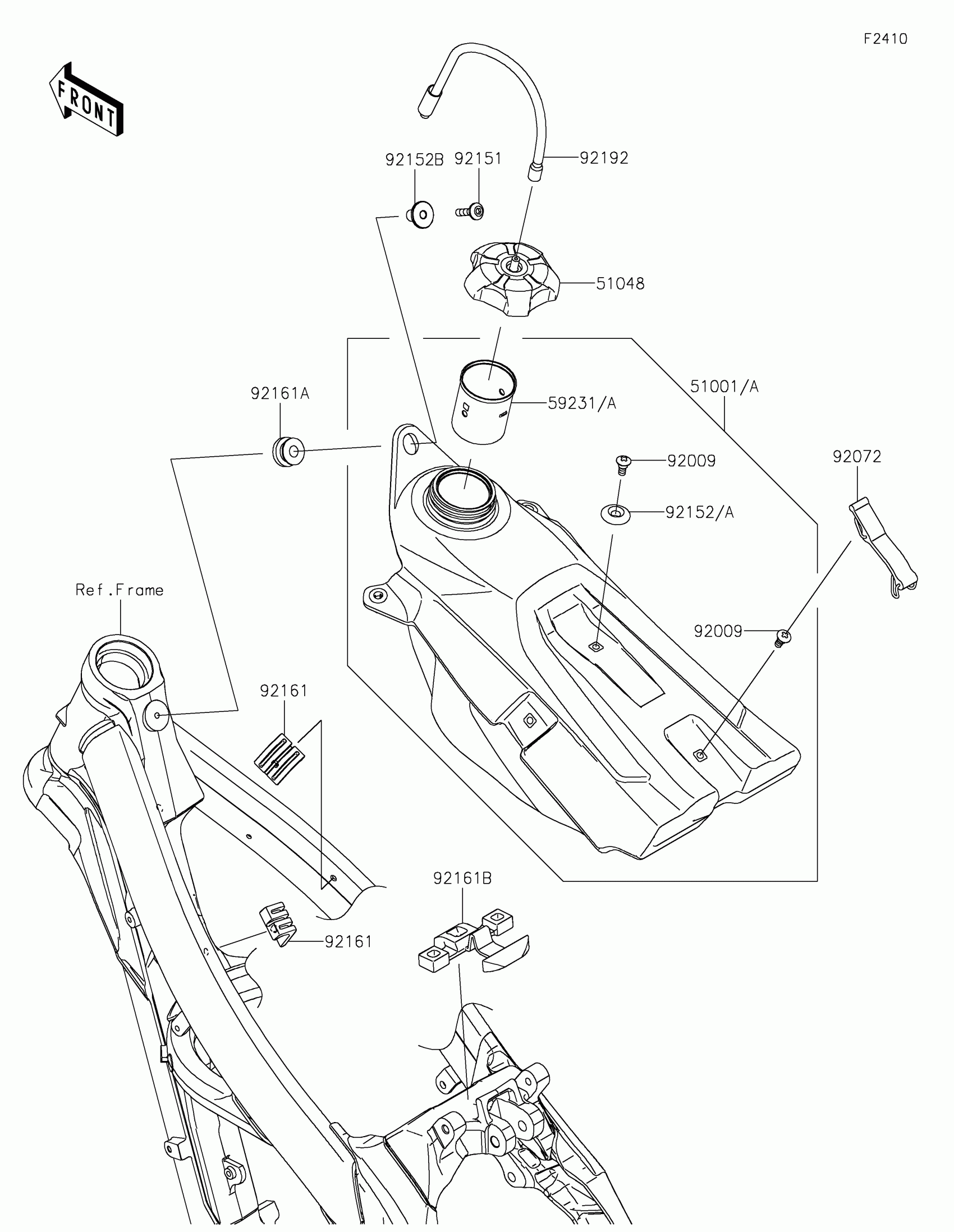

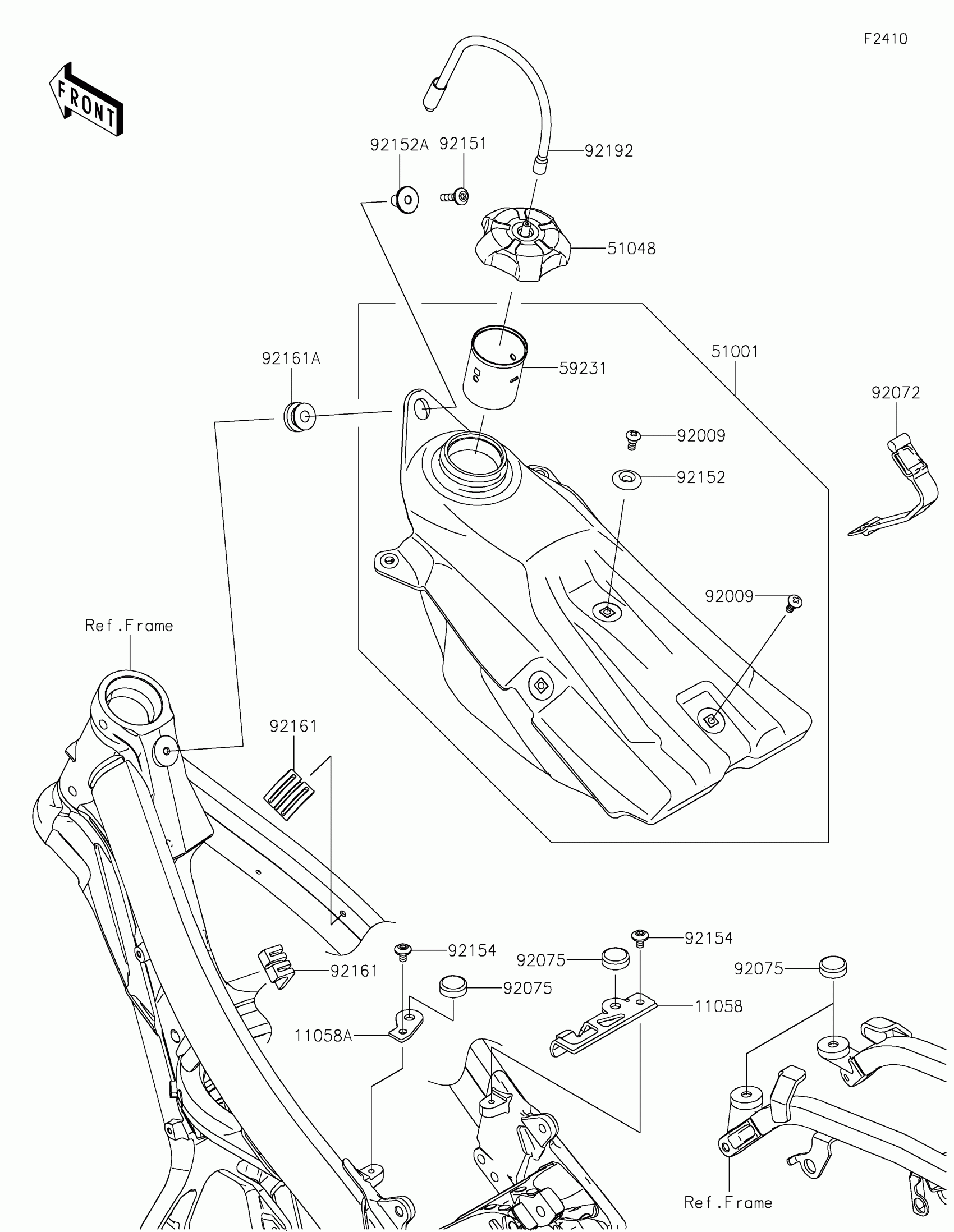

Kawasaki KX™250X Fuel Tank Diagram

Description

Price

11058

BRACKET

11058-1106

$21.33

11058A

BRACKET

11058-1107

$6.52

51001

TANK-COMP-FUEL

51001-0928

$584.32

51048

CAP-ASSY-TANK

51048-0576

$54.53

59231

FILLER

59231-0019

$6.68

92009

SCREW,6MM

92009-1971

$4.18

92072

BAND,TOOL CASE

92072-3859

$18.69

92075

DAMPER,9X24X14

92075-281

$6.22

92151

BOLT,SOCKET,6X25

92151-1611

$2.34

92152

COLLAR

92152-1346

$4.18

92152A

COLLAR,6.5X10X18

92152-2456

$18.57

92154

BOLT,SOCKET,6X10

92154-0774

$1.63

92161

DAMPER,FUEL TANK,SIDE

92161-1393

$7.24

92161A

DAMPER,FUEL TANK,FR

92161-1914

$3.35

92192

TUBE

92192-0161

$10.21
