Description

Price

13127

SHAFT-TRANSMISSION INPUT,14T

13127-0064

$233.25

13128

SHAFT-TRANSMISSION OUTPUT

13128-0702

$172.52

13144

SPROCKET-OUTPUT,12T

13144-0036

$36.05

13144A

SPROCKET-OUTPUT,13T

13144-0064

$36.75

13262

GEAR,INPUT 2ND,16T

13262-0839

$103.02

13262A

GEAR,INPUT 3RD,18T

13262-0930

$120.91

13262B

GEAR,INPUT 4TH,17T

13262-0931

$120.91

13262C

GEAR,INPUT 5TH,22T

13262-0932

$120.91

13262D

GEAR,OUTPUT LOW,30T

13262-0933

$120.91

13262E

GEAR,OUTPUT 2ND,28T

13262-0934

$120.91

13262F

GEAR,OUTPUT 4TH,21T

13262-0936

$120.91

13262G

GEAR,OUTPUT 5TH,23T

13262-0937

$120.91

13262H

GEAR,OUTPUT 3RD,26T

13262-1108

$133.42

92033

RING-SNAP

92033-0057

$3.26

92033A

RING-SNAP

92033-1270

$8.18

92055

RING-O,19.5X1.5

92055-055

$4.31

92139

BUSHING

92139-0241

$28.37

92152

COLLAR

92152-1606

$28.82

92152A

COLLAR,22X30X11.4

92152-2289

$25.14

92200

WASHER,22X26.6X1

92200-0442

$3.29

92200A

WASHER,20X46

92200-0723

$3.02

92210

NUT,16MM

92210-0721

$23.04

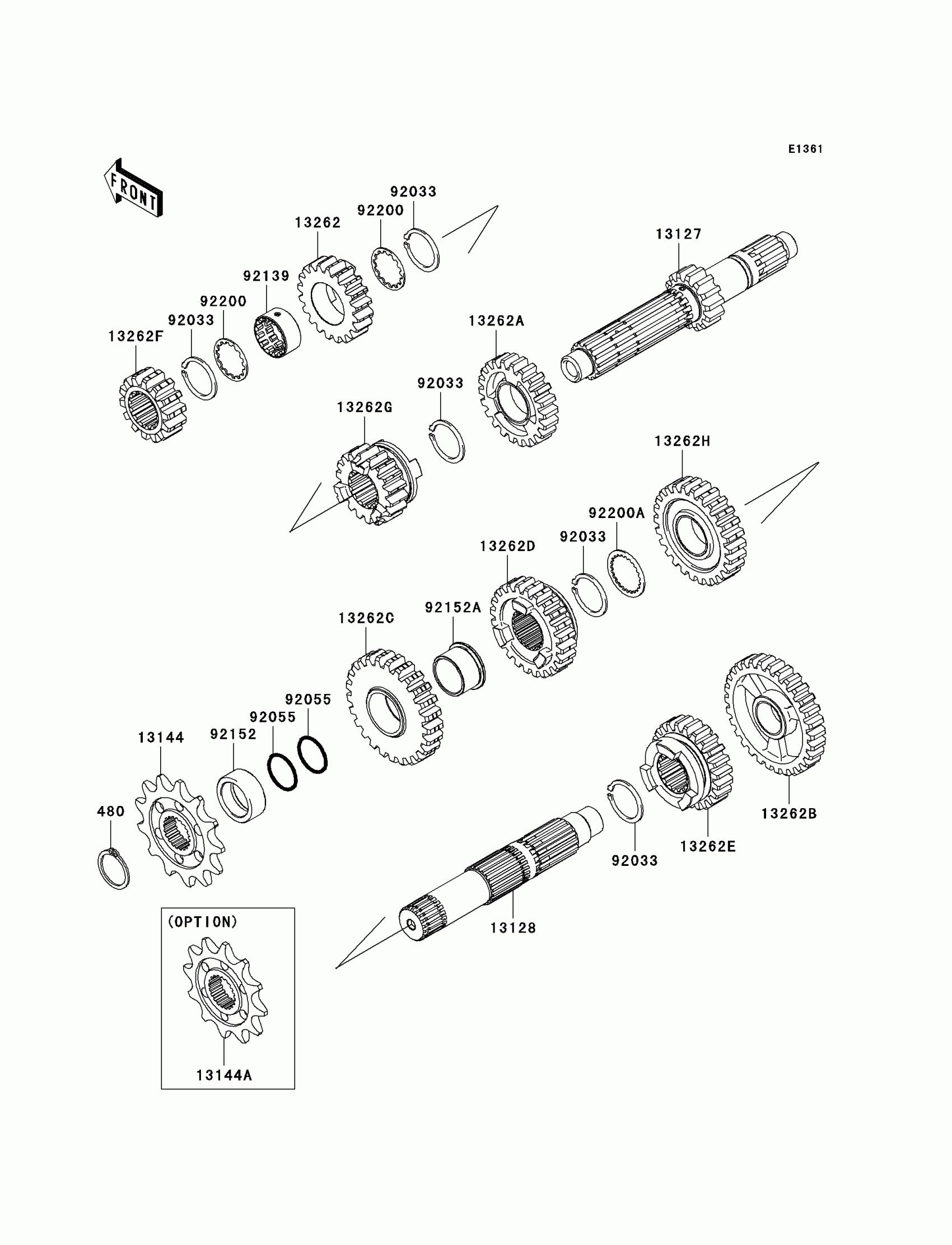

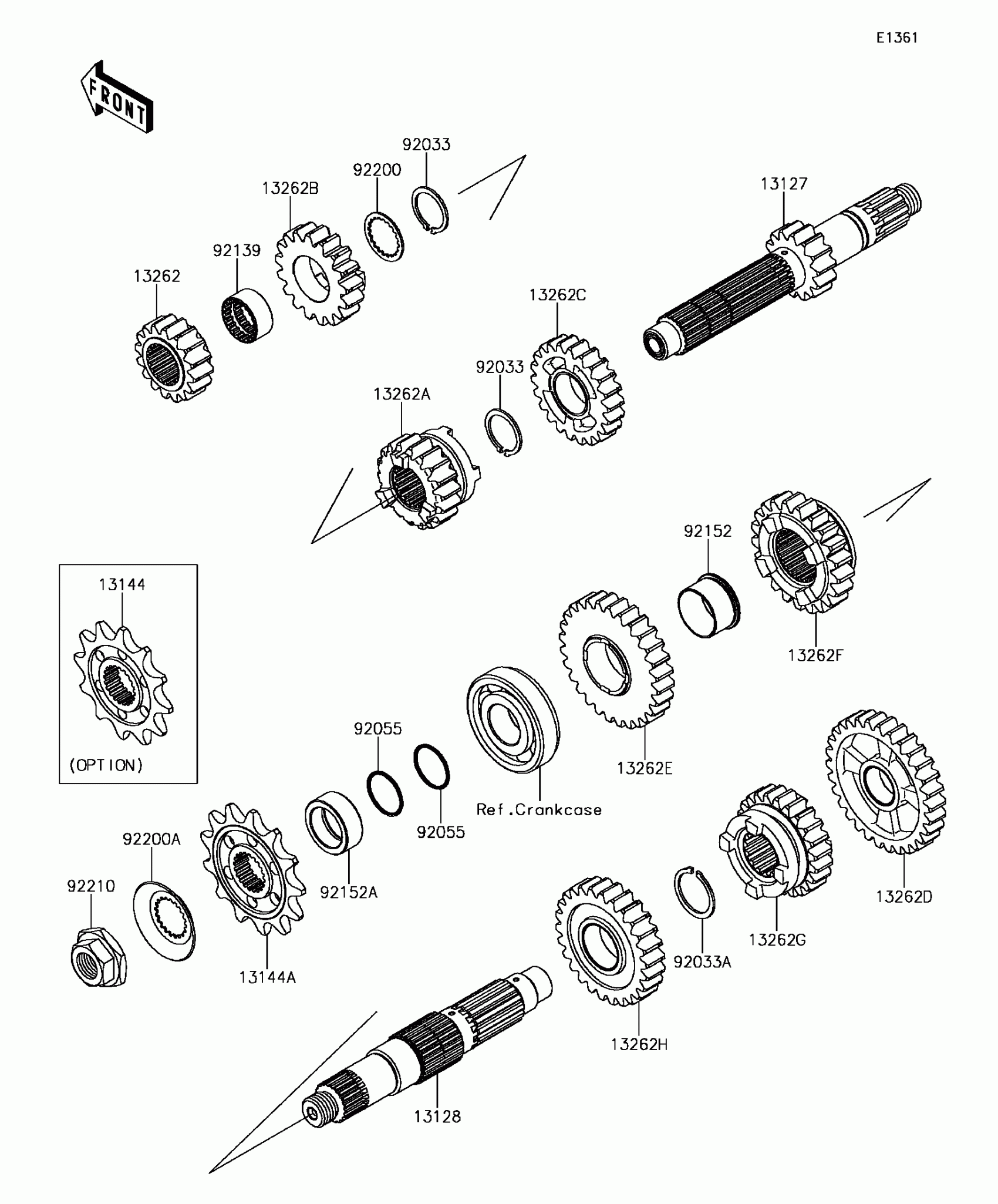

Kawasaki KX™250F Transmission Diagram

SHAFT-TRANSMISSION INPUT,14T

SHAFT-TRANSMISSION OUTPUT

SPROCKET-OUTPUT,12T

SPROCKET-OUTPUT,13T

GEAR,INPUT 2ND,16T

GEAR,INPUT 3RD,18T

GEAR,INPUT 4TH,17T

GEAR,INPUT 5TH,22T

GEAR,OUTPUT LOW,30T

GEAR,OUTPUT 2ND,28T

GEAR,OUTPUT 4TH,21T

GEAR,OUTPUT 5TH,23T

GEAR,OUTPUT 3RD,26T

RING-SNAP

RING-SNAP

RING-O,19.5X1.5

BUSHING

COLLAR

COLLAR,22X30X11.4

WASHER,22X26.6X1

WASHER,20X46

NUT,16MM
