Description

Price

12053

GUIDE-CHAIN,DRIVE,FR

12053-0053

$69.86

12053A

GUIDE-CHAIN

12053-0061

$69.86

13271

PLATE,CHAIN GUIDE

13271-0593

$51.84

13271A

PLATE,AXLE

13271-1833

$17.27

33001

ARM-COMP-SWING

33001-0107

$958.81

33032

SHAFT-SWING ARM

33032-0012

$47.83

33040

ADJUSTER-CHAIN,RH

33040-0020

$14.62

33040A

ADJUSTER-CHAIN,LH

33040-1189

Unavailable

42036

SLEEVE,SWING ARM,L=47.5

42036-0019

$28.42

92009

SCREW,5X10

92009-1828

$2.46

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92046

BEARING-NEEDLE,TA2230Z

92046-1174

$36.90

92046A

BEARING-NEEDLE,NTBR22356E01

92046-1240

$19.12

92093

SEAL,SDO29X35X4.5

92093-1434

$9.11

92093A

SEAL,SDO22X29X5

92093-1435

$8.79

92143

COLLAR

92143-1676

$6.22

92143A

COLLAR,6.5X14X24

92143-1867

$6.61

92151

BOLT,6X12

92151-1133

Unavailable

92151A

BOLT,6X50

92151-1234

$2.46

92152

COLLAR,17.1X29X6

92152-0292

$10.30

92153

BOLT,8X56

92153-0620

$3.73

92172

SCREW,5X8

92172-0119

$2.12

92200

WASHER,17.2X30X2.3

92200-0285

$3.90

92210

NUT,LOCK,16MM

92210-0285

$20.37

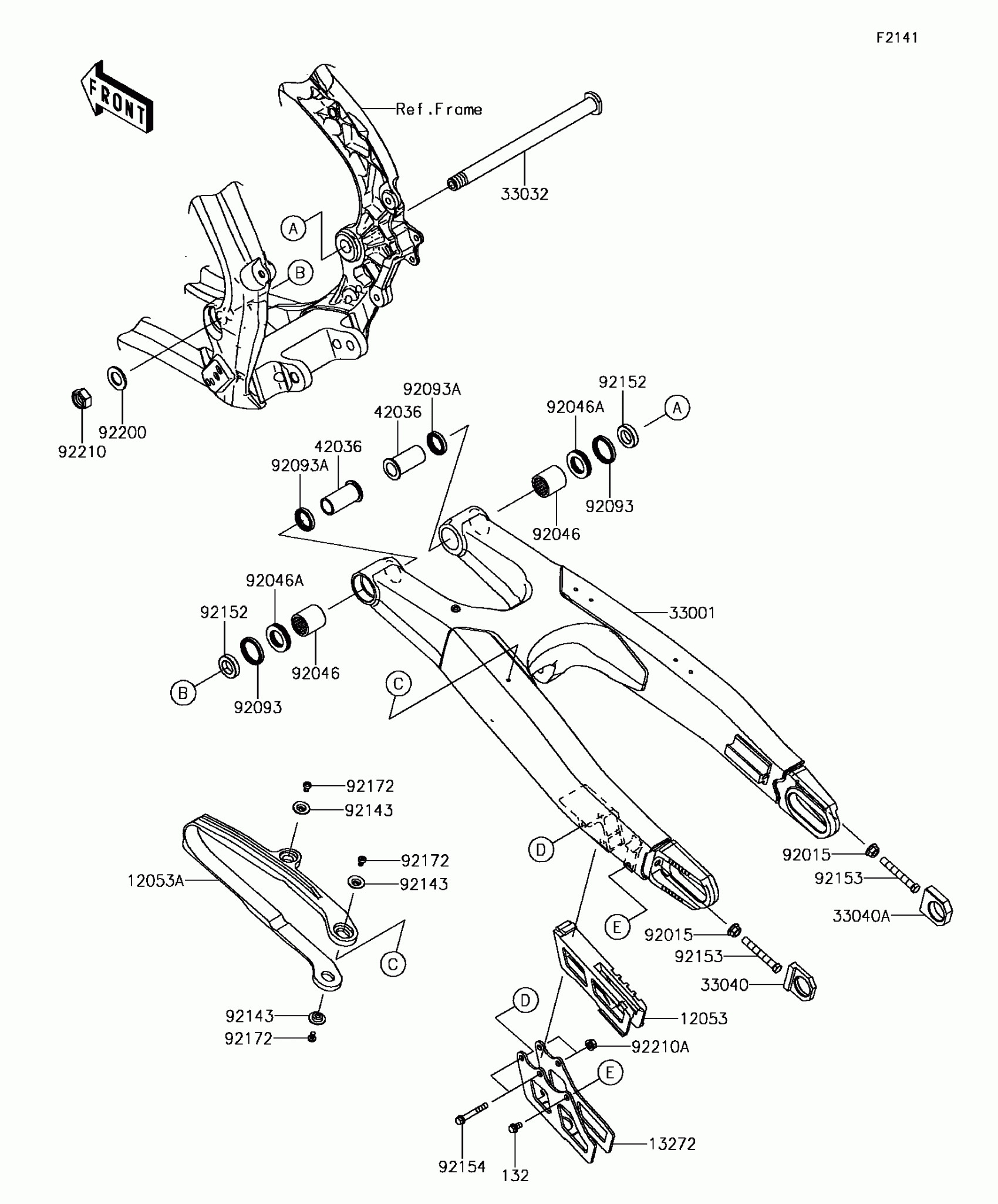

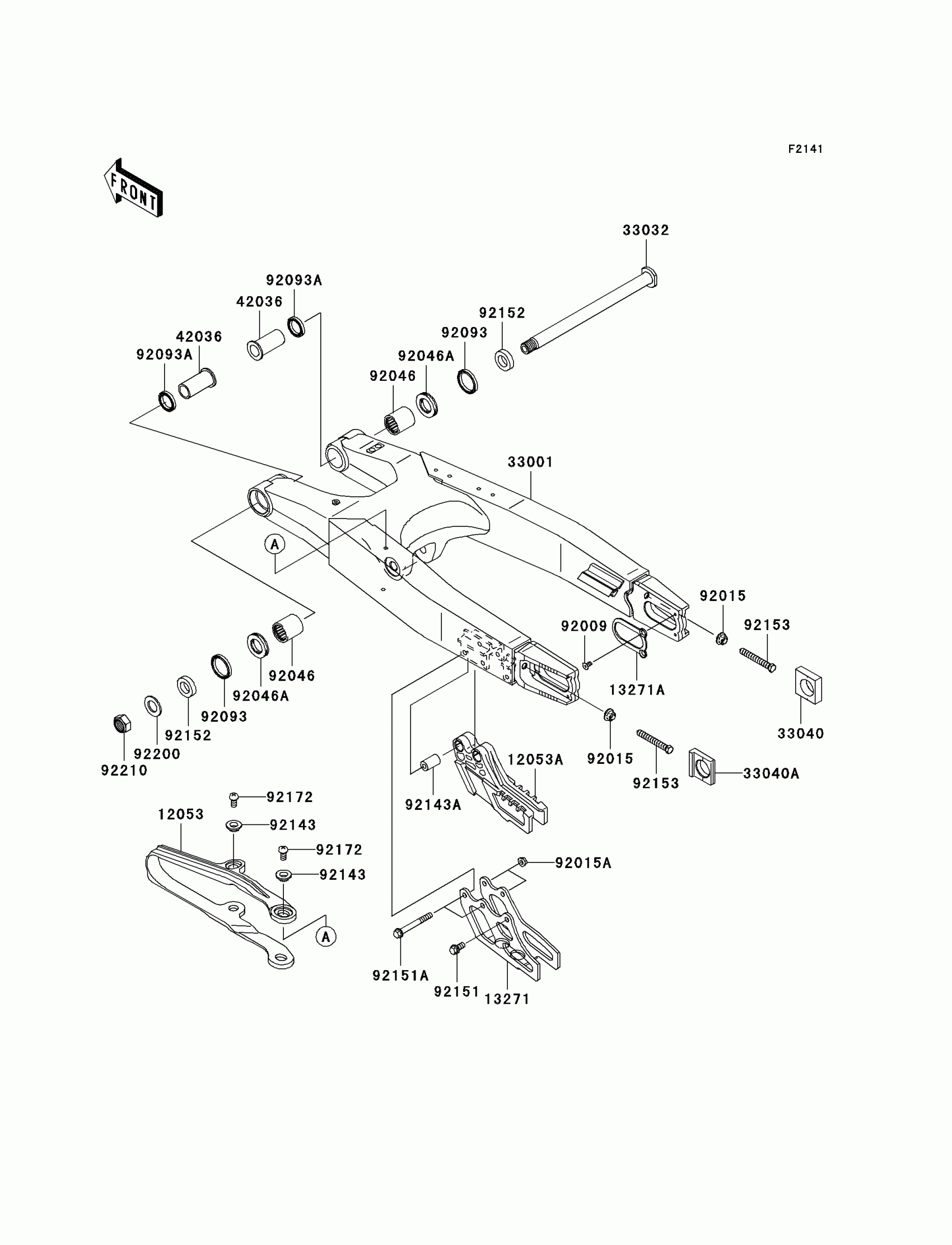

Kawasaki KX™250F Swingarm Diagram

GUIDE-CHAIN,DRIVE,FR

GUIDE-CHAIN

PLATE,CHAIN GUIDE

PLATE,AXLE

ARM-COMP-SWING

SHAFT-SWING ARM

ADJUSTER-CHAIN,RH

ADJUSTER-CHAIN,LH

SLEEVE,SWING ARM,L=47.5

SCREW,5X10

NUT,FLANGED,8MM

NUT,FLANGED,6MM

BEARING-NEEDLE,TA2230Z

BEARING-NEEDLE,NTBR22356E01

SEAL,SDO29X35X4.5

SEAL,SDO22X29X5

COLLAR

COLLAR,6.5X14X24

BOLT,6X12

BOLT,6X50

COLLAR,17.1X29X6

BOLT,8X56

SCREW,5X8

WASHER,17.2X30X2.3

NUT,LOCK,16MM
