Description

Price

39007

ARM-SUSP

39007-0398

$265.32

39111

ROD-TIE,L=132

39111-0341

$129.00

42036

SLEEVE,SUSPENSION ARM,L=49

42036-0021

$13.60

42036A

SLEEVE,SUSPENSION ARM,L=37

42036-0022

$11.93

42036B

SLEEVE,10X16X19.3

42036-0030

$11.93

42036C

SLEEVE,12X20X78.4

42036-0770

$18.86

42036D

SLEEVE

42036-1351

$11.28

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92046

BEARING-NEEDLE,F-2016

92046-1151

$19.48

92046A

BEARING-NEEDLE,16BM2212

92046-1192

$18.21

92049

SEAL-OIL,SDO26X32X4

92049-0063

$12.98

92049A

SEAL-OIL

92049-0069

$12.29

92093

SEAL

92093-1436

$7.26

92152

COLLAR

92152-0425

$10.06

92152A

COLLAR

92152-1139

$8.86

92154

BOLT,10X45

92154-0512

Unavailable

92154A

BOLT,10X58

92154-0513

Unavailable

92154B

BOLT,12X86

92154-1714

$21.97

92154C

BOLT,12X122

92154-1715

$30.17

92154D

BOLT,12X92

92154-1717

$22.76

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

92210A

NUT,LOCK,10MM

92210-1184

$6.11

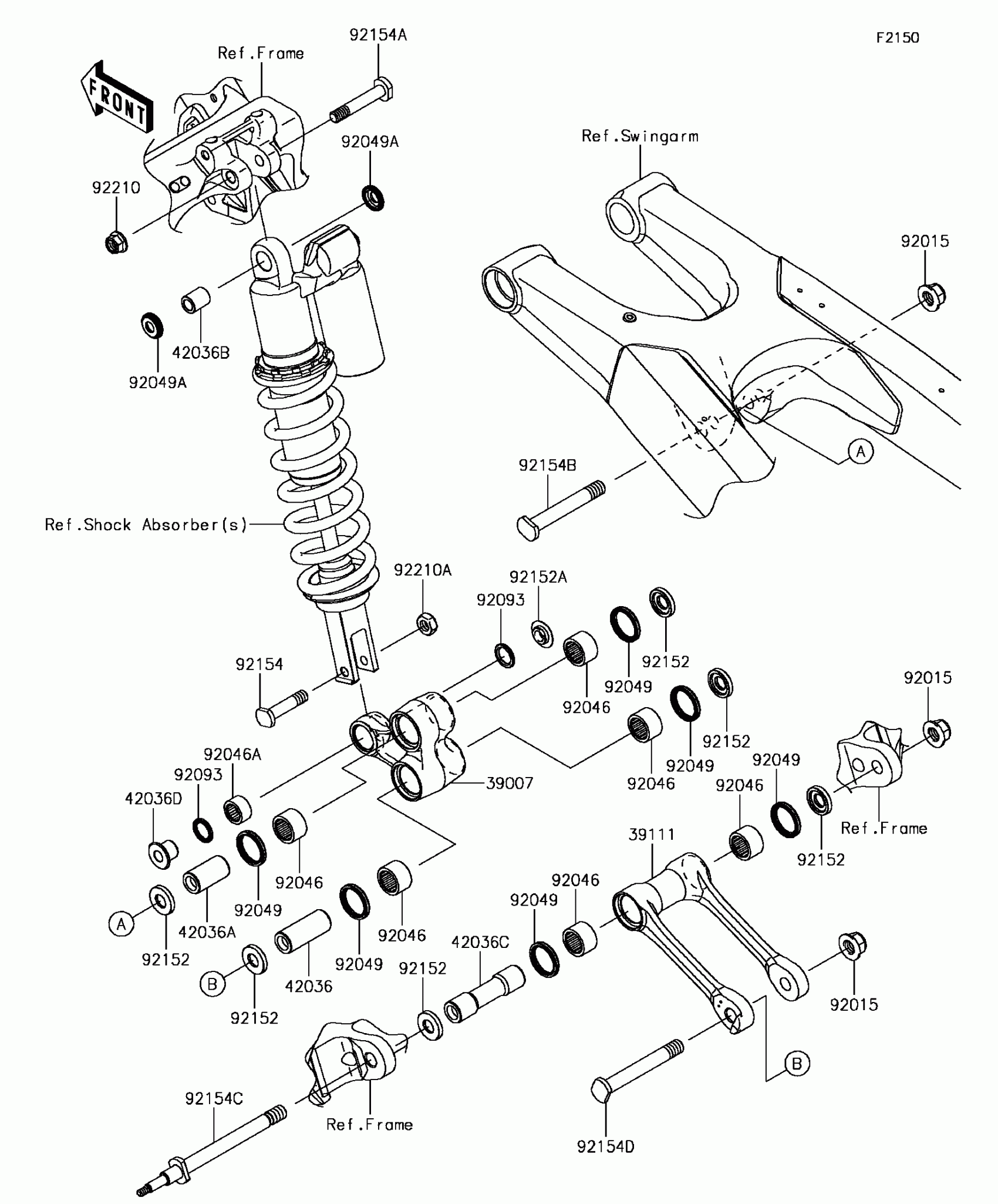

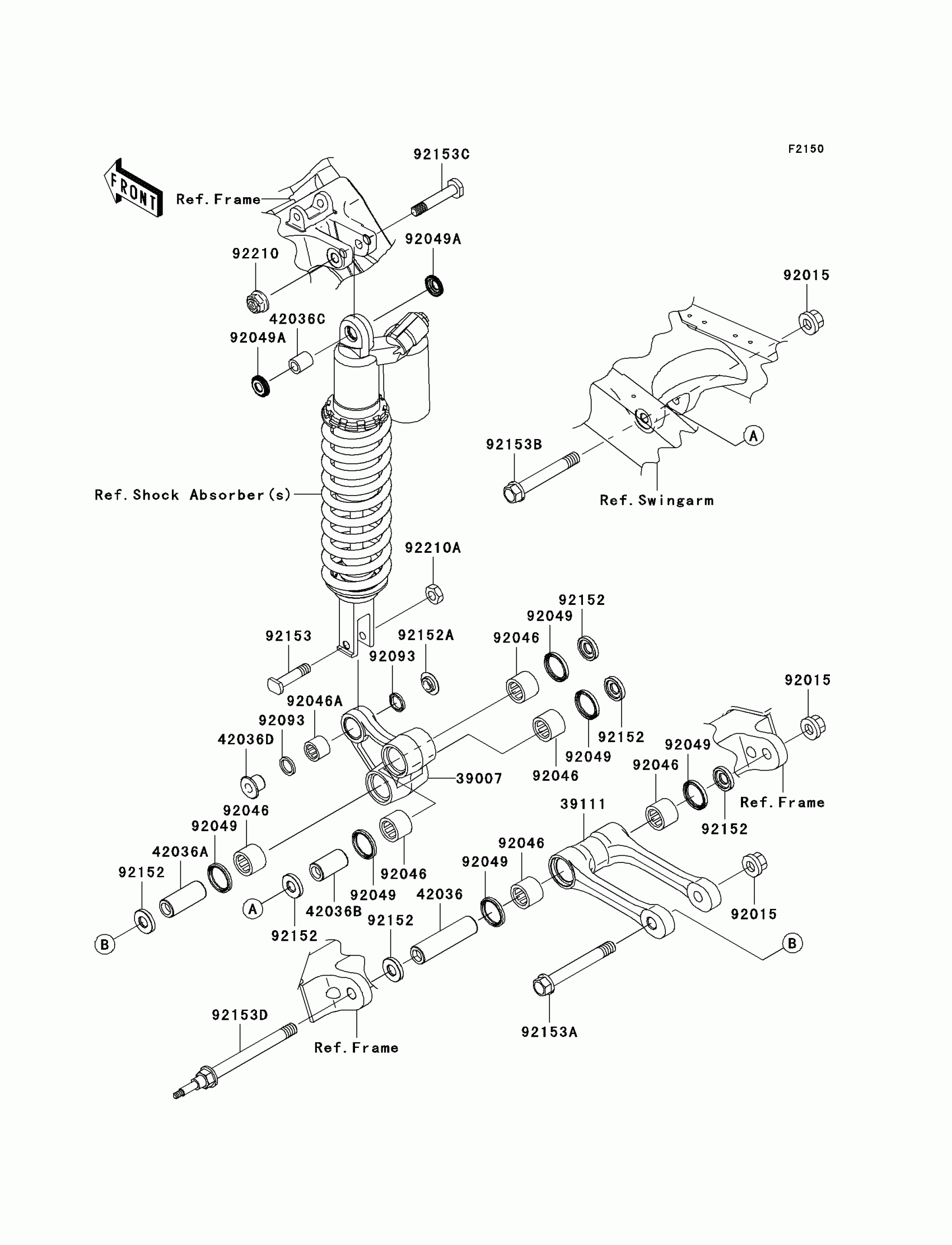

Kawasaki KX™250F Rear Suspension Diagram

ARM-SUSP

ROD-TIE,L=132

SLEEVE,SUSPENSION ARM,L=49

SLEEVE,SUSPENSION ARM,L=37

SLEEVE,10X16X19.3

SLEEVE,12X20X78.4

SLEEVE

NUT,LOCK,FLANGED,12MM

BEARING-NEEDLE,F-2016

BEARING-NEEDLE,16BM2212

SEAL-OIL,SDO26X32X4

SEAL-OIL

SEAL

COLLAR

COLLAR

BOLT,10X45

BOLT,10X58

BOLT,12X86

BOLT,12X122

BOLT,12X92

NUT,LOCK,FLANGED,10MM

NUT,LOCK,10MM
