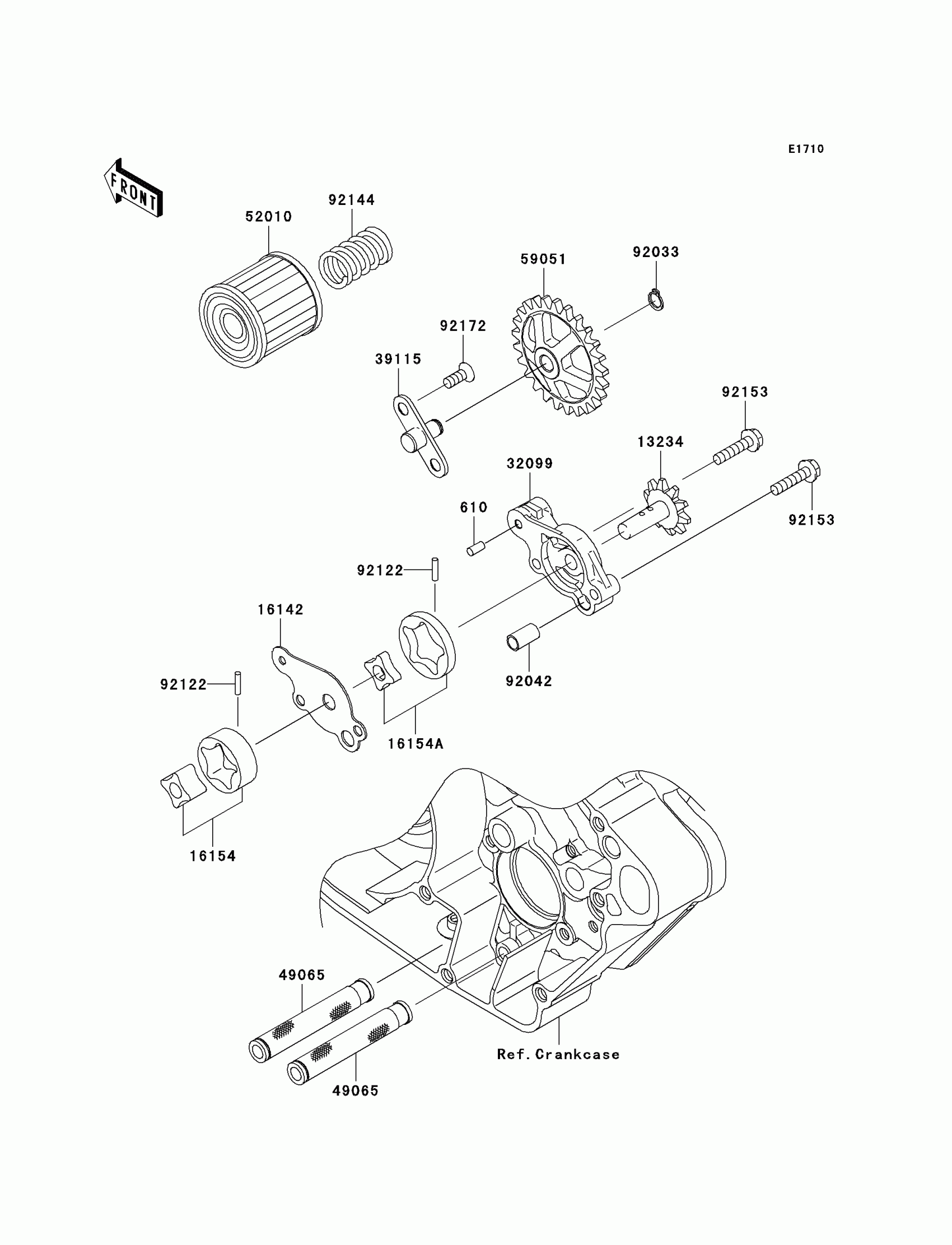

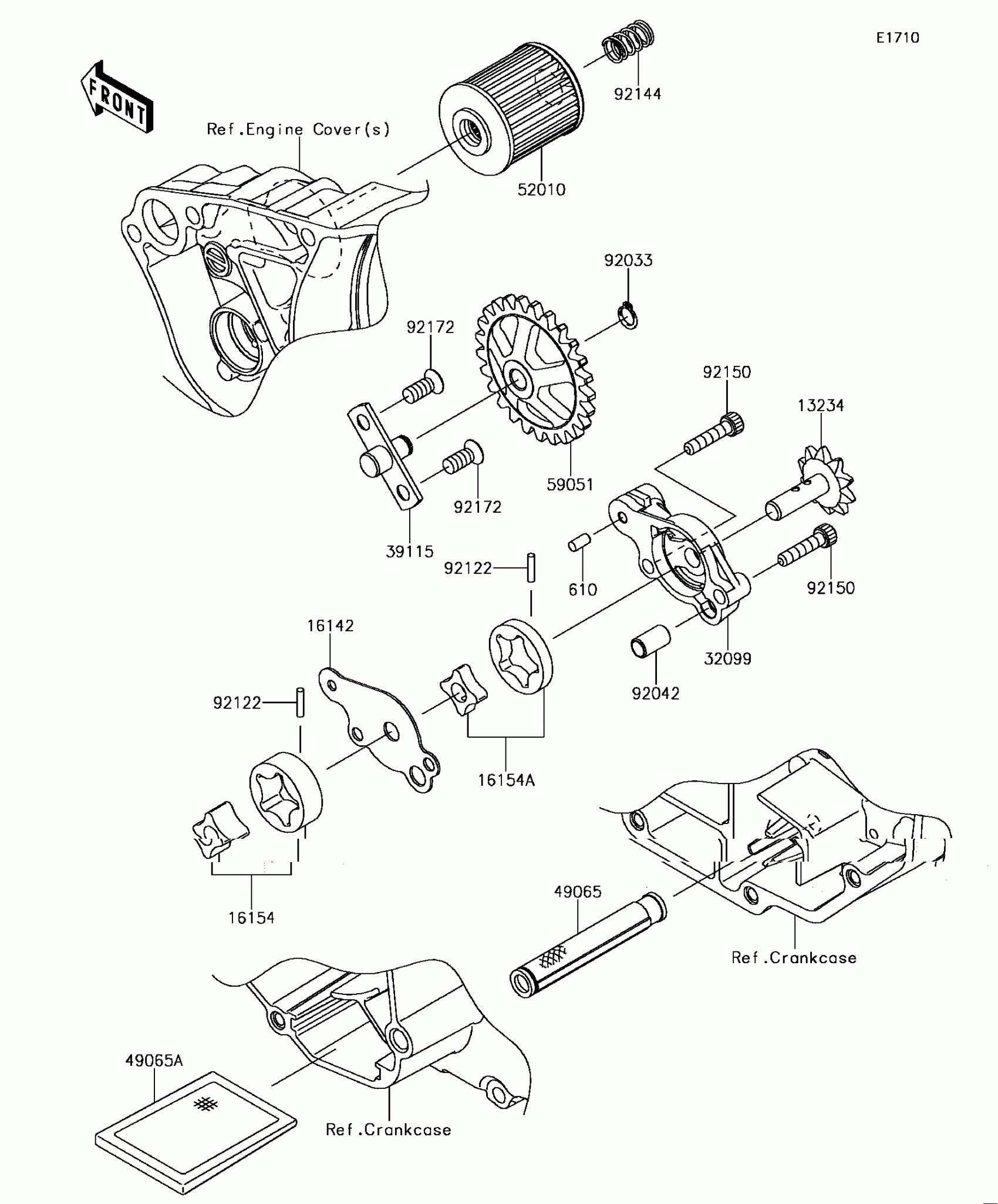

Kawasaki KX™250F Oil Pump Diagram

Description

Price

13234

SHAFT-COMP,OIL PUMP

13234-0045

$80.07

16142

COVER-PUMP

16142-0003

$7.68

16154

ROTOR-PUMP,SCAVENGE

16154-0090

$41.25

16154A

ROTOR-PUMP,FEED

16154-0093

$41.25

32099

CASE,OIL PUMP

32099-0051

$66.43

39115

SHAFT-IDLER,OIL PUMP

39115-0007

$25.65

49065

FILTER-OIL

49065-0017

$29.25

49065A

FILTER-OIL

49065-0023

$17.93

52010

ELEMENT-OIL FILTER

52010-0001

$12.05

59051

GEAR-SPUR,PUMP IDLER

59051-0009

$74.17

610

ROLLER,4X8

610A0408

$4.31

92033

RING-SNAP,8MM

92033-1039

$4.26

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92122

ROLLER,2.5X11.8

92122-0021

$2.61

92144

SPRING

92144-1761

$4.65

92150

BOLT,SOCKET,5X22

92150-1491

$3.96

92172

SCREW,6X14

92172-0087

$2.41
