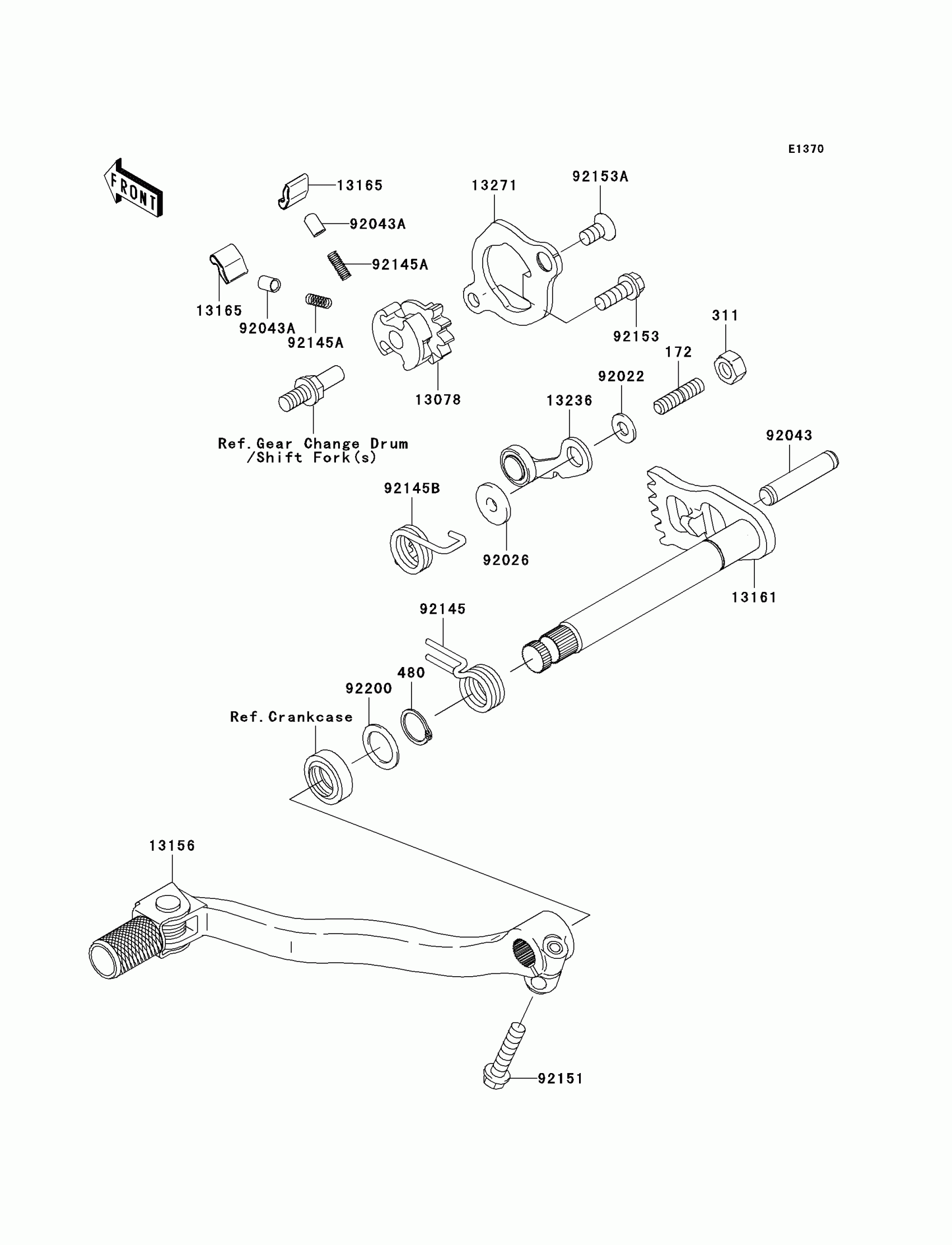

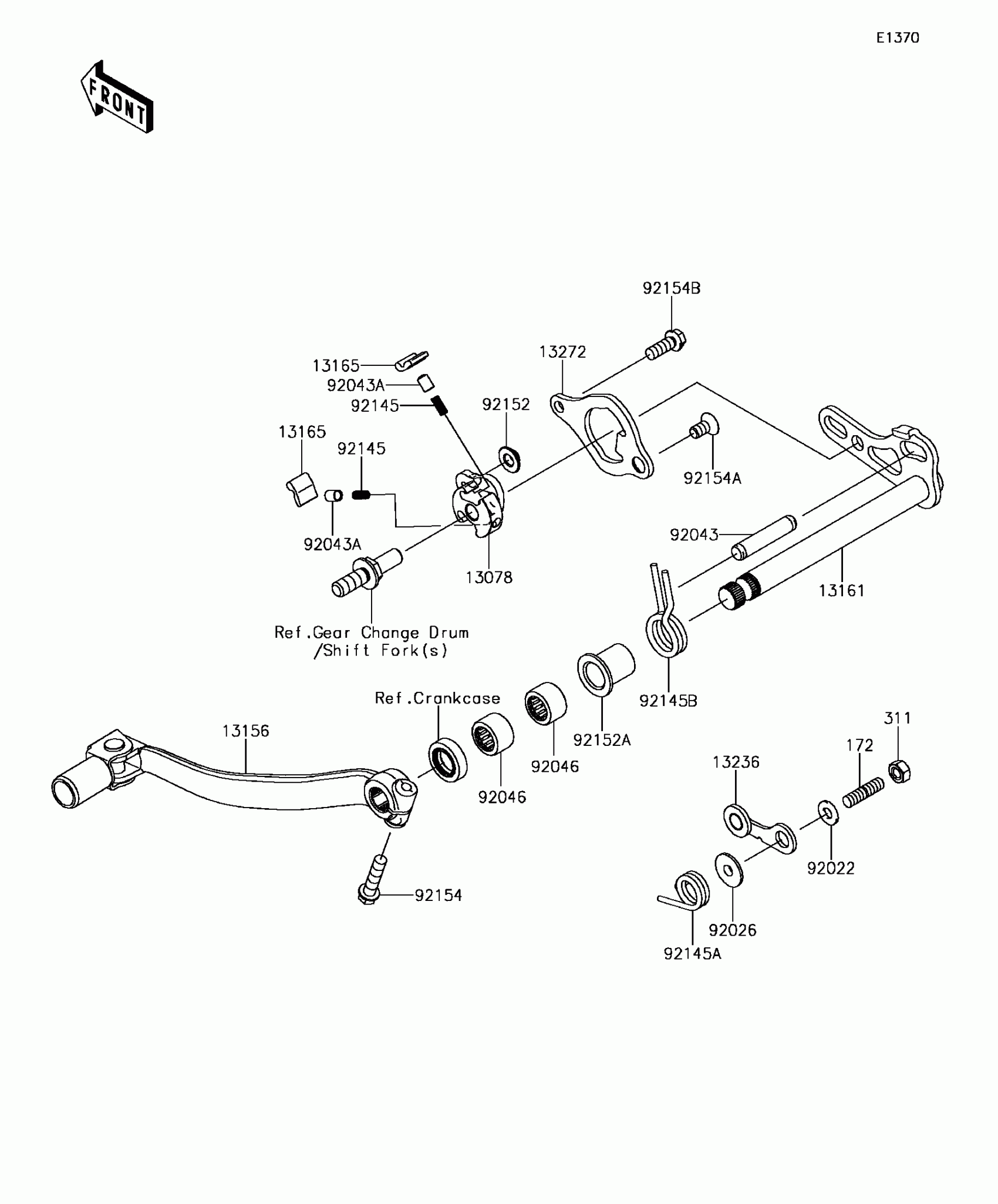

Kawasaki KX™250F Gear Change Mechanism Diagram

Description

Price

13078

RATCHET

13078-0029

$71.76

13156

LEVER-CHANGE,PEDAL

13156-0124

$101.09

13161

LEVER-COMP-CHANGE SHAFT

13161-0590

$52.89

13165

PAWL

13165-0018

$19.48

13236

LEVER-COMP,POSITION

13236-0161

$7.93

13272

PLATE,PAWL GUIDE

13272-2127

$17.74

172

BOLT-STUD,6X12

172BA0612

$0.87

311

NUT-HEX,6MM

311BA0600

$2.23

92022

WASHER,6X12.8X1.2

92022-1827

$4.69

92026

SPACER

92026-1217

$5.52

92043

PIN,8X39

92043-0017

$8.89

92043A

PIN,PLUNGER

92043-1676

$8.72

92046

BEARING-NEEDLE,HK1312

92046-1148

$18.74

92145

SPRING

92145-0453

$3.87

92145A

SPRING,POSITION

92145-0843

$13.06

92145B

SPRING,RETURN

92145-1725

$13.43

92152

COLLAR

92152-1414

$7.63

92152A

COLLAR

92152-2208

$13.32

92154

BOLT,FLANGED,6X25

92154-0520

$3.35

92154A

BOLT,TORX

92154-1621

$3.90

92154B

BOLT,FLANGED,6X16

92154-2096

$2.80
