2008 Kawasaki KX™250F Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2008 Kawasaki KX™250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

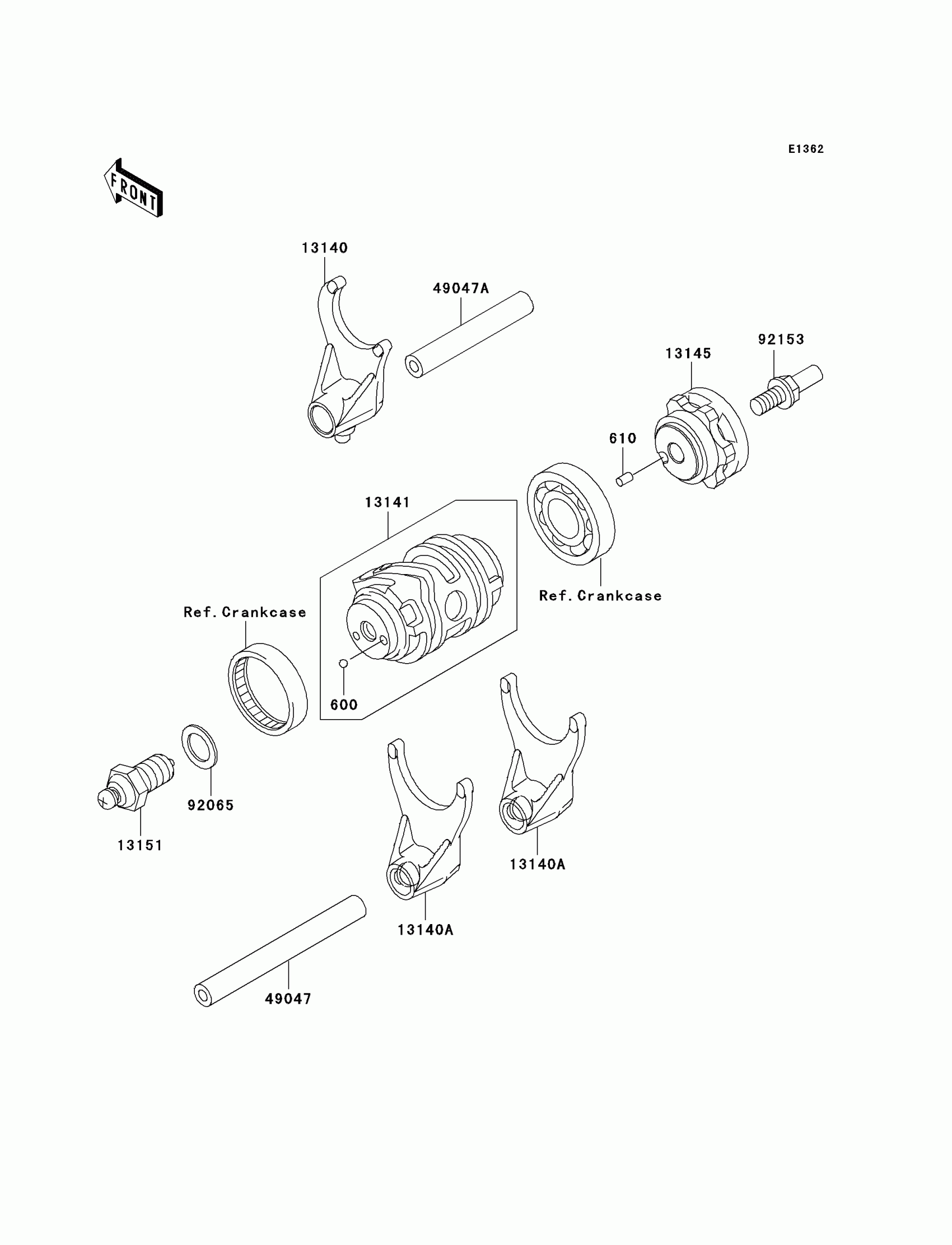

2008 Kawasaki KX™250F Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

600

BALL-STEEL,7/32"

600A0700

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock

13140

FORK-SHIFT,IN

13140-0038

1
Out of stock

13140A

FORK-SHIFT,OUT

13140-0039

1
Out of stock

13141

DRUM-CHANGE

13141-0040

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0024

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-0006

1
Out of stock

49047

ROD-SHIFT,OUTPUT,L=94.5

49047-0003

1
Out of stock

49047A

ROD-SHIFT,INPUT,L=63

49047-0004

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92153

BOLT

92153-1735

1
Out of stock
