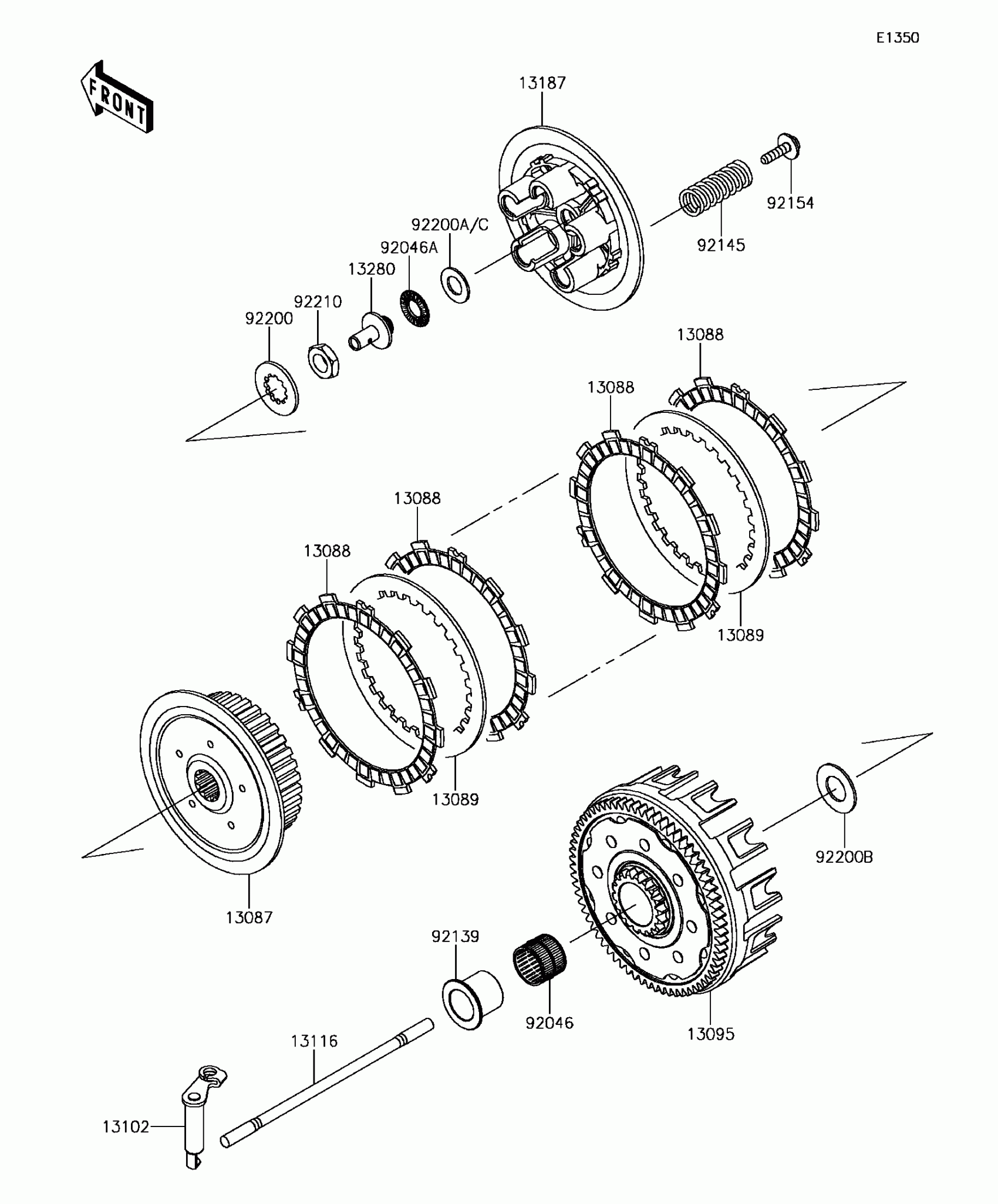

Kawasaki KX™250F Clutch Diagram

#

Description
Price

600

BALL-STEEL,5/16

600A1000

$0.66

13087

HUB-CLUTCH

13087-0017

$131.36

13088

PLATE-FRICTION

13088-0018

$17.87

13089

PLATE-CLUTCH,T=1.6

13089-0005

$10.63

13095

HOUSING-COMP-CLUTCH

13095-0049

$556.26

13102

RELEASE-COMP-CLUTCH

13102-0020

$75.15

13116

ROD-PUSH

13116-0003

$37.38

13187

PLATE-CLUTCH OPERATING

13187-1089

$82.68

13280

HOLDER

13280-0163

Unavailable

14044

HOLDER-CABLE,CLUTCH

14044-0002

Unavailable

92036

RING-SNAP,PISTON PIN

92036-007

$2.97

92046

BEARING-NEEDLE,WRS273124A

92046-0016

$32.97

92046A

BEARING-NEEDLE,FNTA-1326

92046-1190

$8.62

92139

BUSHING

92139-0014

$30.34

92145

SPRING,K=10.7N/MM

92145-0351

$7.52

92153

BOLT,6X25

92153-1123

$1.54

92200

WASHER,21.6X38X2.5

92200-0027

$5.02

92200A

WASHER,13.4X25X1.0

92200-0045

Unavailable

92200B

WASHER,22.3X43X2

92200-0098

$1.54

92200C

WASHER,13.4X25.0X1.5

92200-1548

$2.99

92210

NUT,16MM

92210-1207

$12.91
