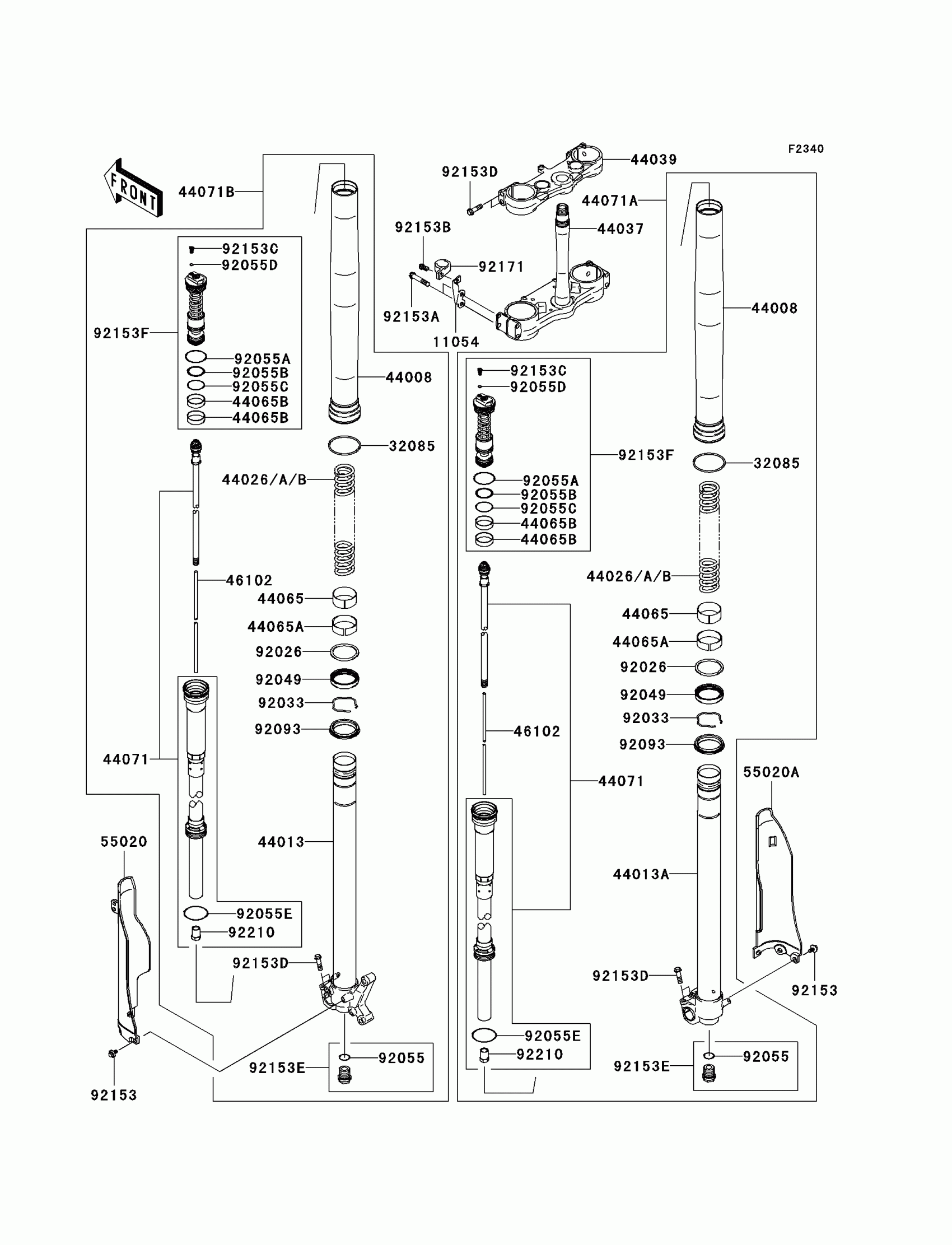

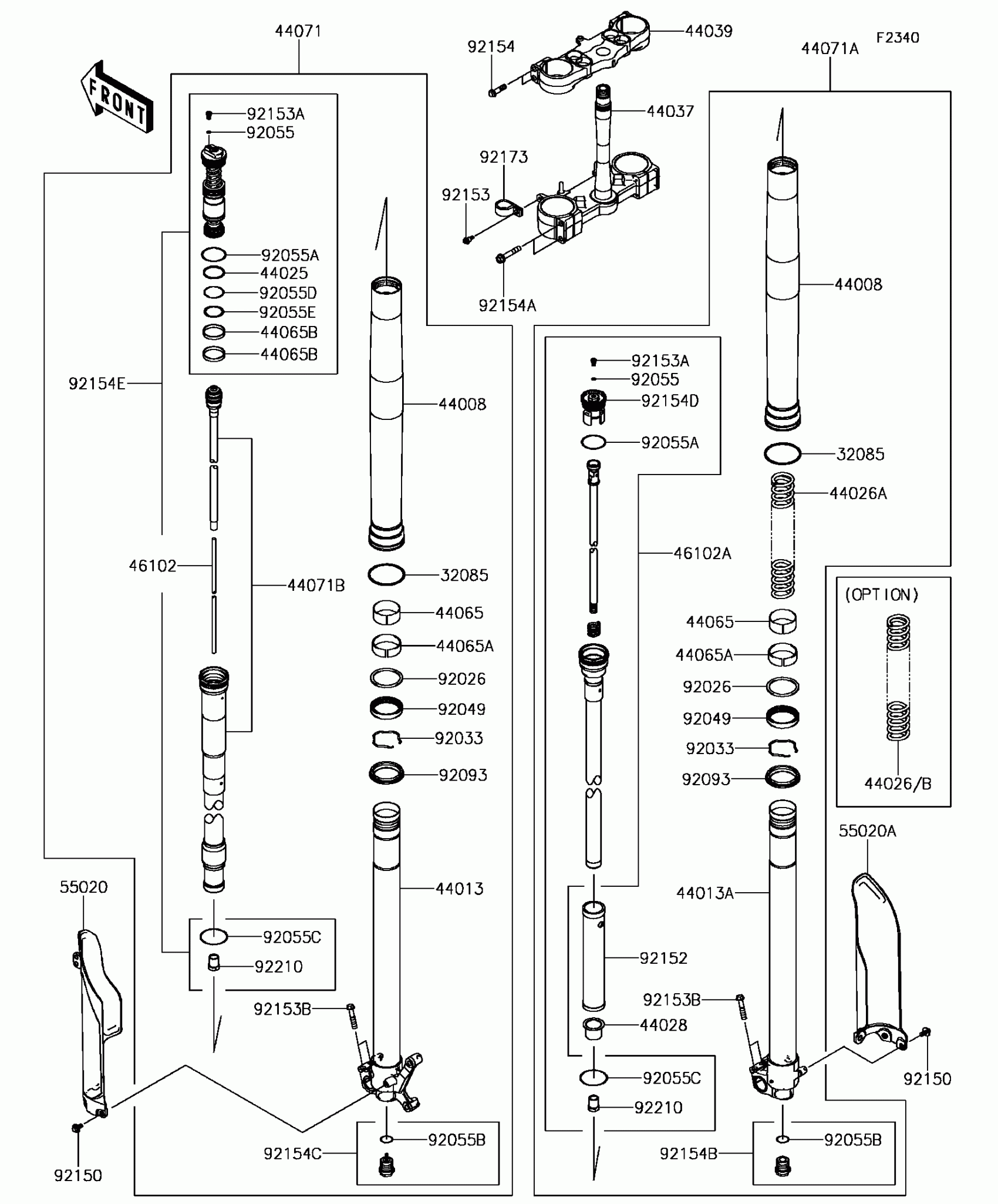

Kawasaki KX™250F Front Fork Diagram
#
32085
STOPPER
32085-0711
$6.05
44008
PIPE-FORK OUTER
44008-0076
$514.86
44013
PIPE-FORK INNER,LH
44013-0288
$573.30
44013A
PIPE-FORK INNER,RH
44013-0289
$573.30
44025
RING-FORK PISTON
44025-0052
$19.99
44026
SPRING-FRONT FORK,K=9.4N/MM
44026-0168
$118.24
44026A
SPRING-FRONT FORK,K=9.8N/MM
44026-0176
$118.24
44026B
SPRING-FRONT FORK,K=10.2N/MM
44026-0213
$118.24
44028
GUIDE-FORK SPRING
44028-0055
$21.89
44037
HOLDER-FORK UNDER,F.BLACK
44037-0170-21
$565.03
44039
HOLDER-FORK UPPER,F.BLACK
44039-0143-21
$250.70
44065
BUSHING-FRONT FORK,SLIDE
44065-0059
$15.06
44065A
BUSHING-FRONT FORK,GUIDE
44065-0060
$14.49
44065B
BUSHING-FRONT FORK
44065-0061
$20.44
44071
DAMPER-ASSY,FORK,LH
44071-1189
$1,656.19
44071A
DAMPER-ASSY,FORK,RH
44071-1190
$1,409.27
44071B
DAMPER-ASSY,COMP
44071-1217
$664.74
46102
ROD,PUSH
46102-0579
$12.44
46102A
ROD,JOINT,G.B.GREEN
46102-0603-50Y
$488.24
55020
GUARD,FORK,LH,EBONY
55020-1938-6C
$55.96
55020A
GUARD,FORK,RH,EBONY
55020-1939-6C
$55.96
92026
SPACER,SEAL
92026-0737
$5.86
92033
RING-SNAP
92033-0720
$7.78
92049
SEAL-OIL
92049-0735
$32.77
92055
RING-O
92055-0094
$2.97
92055A
RING-O
92055-0131
$5.65
92055B
RING-O
92055-0743
$1.63
92055C
RING-O
92055-0744
$3.72
92055D
RING-O
92055-0745
$4.76
92055E
RING-O
92055-0746
$2.34
92093
SEAL,DUST
92093-0584
$21.59
92150
BOLT,6X14
92150-1340
$5.07
92152
COLLAR
92152-1652
$43.41
92153
BOLT,FLANGED
92153-1397
$3.90
92153A
BOLT,PLUG
92153-1398
$3.39
92153B
BOLT,FLANGED,8X40
92153-1399
$4.65
92154
BOLT
92154-0463
$4.41
92154A
BOLT
92154-0464
$3.65
92154B
BOLT,CENTER,RH
92154-1057
$30.70
92154C
BOLT,CENTER,LH
92154-1059
$43.93
92154D
BOLT,ADJ.,G.B.GREEN
92154-1569-50Y
$149.59
92154E
BOLT,FORK,G.B.GREEN
92154-2175-50Y
$384.29
92173
CLAMP
92173-1579
$15.41
92210
NUT,LOCK
92210-0430
$15.35
